NEW US INDUSTRIAL USHB275-13C
Overview
Description
OUT OF STOCK - CALL FOR AVAILABILITY

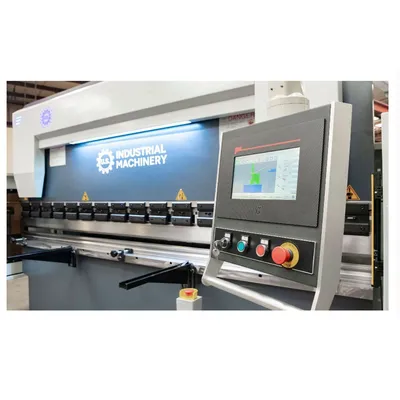

U.S. INDUSTRIAL USHB200-10CNC CNC Hydraulic Press Brake has a 200 Ton working pressure and 10 ft Length of working table.Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. Key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.
Specifications
| Pressure/Tonnage | 275 T | 249.476 t |
|---|---|---|
| Table Length | 13' | 4 m |
| # Axis | 2 | 2 |
| Throat Depth | 15.75" | 400.05 mm |
| Table Length | 157.5" | 4,000.5 mm |
| Pressing Speed | 0.30 in./sec | 0.30 in./sec |
| Rapid Ram Travel Speed | 2.8 in/sec. | 70.1 mm/sec. |
| Rapid Ram Retreat Speed | 2.4 in/sec. | 59.9 mm/sec. |
| Distance Between Housings | 122.05" | 3,100.1 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Motor Power | 25 hp | 18.6 kW |
| Voltage | 220V or 440V (specify) | 220V or 440V (specify) |
| Phase | 3-phase | 3-phase |
| Stroke Adjustment of Ram | 4.33" | 109.98 mm |
| Ram travel | 9.84" | 249.94 mm |
| Open Height | 18.11" | 459.99 mm |
| Hydraulic Oil Capacity | 87 gal | 329.3 L |
| Control | CNC | CNC |
| Dimensions | 189 x 77 x 114 in. | 189 x 77 x 114 in. |
| Weight | 36,338 lbs | 36,338 lbs |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

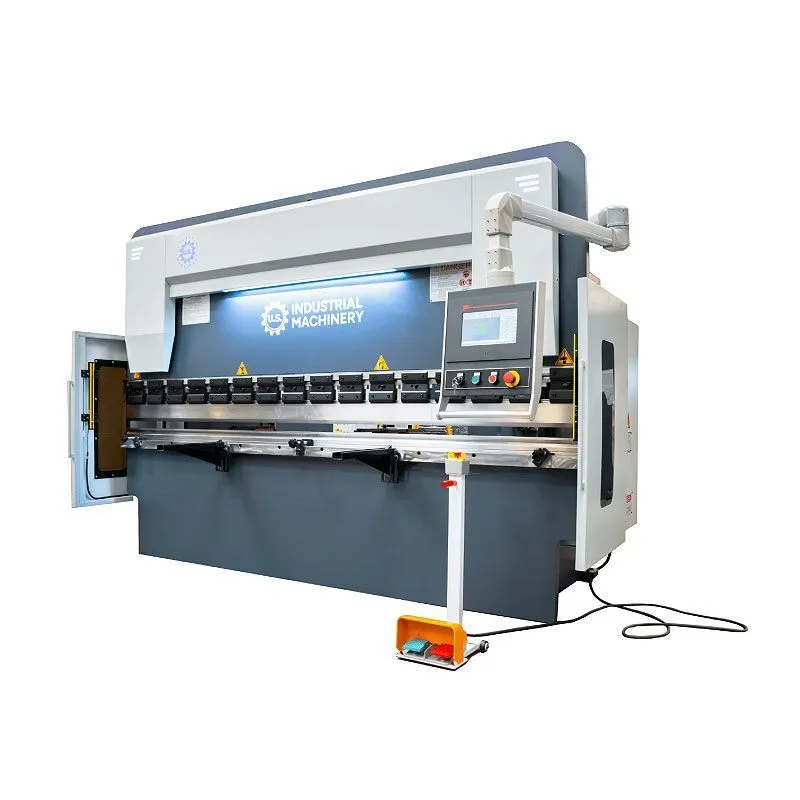

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With

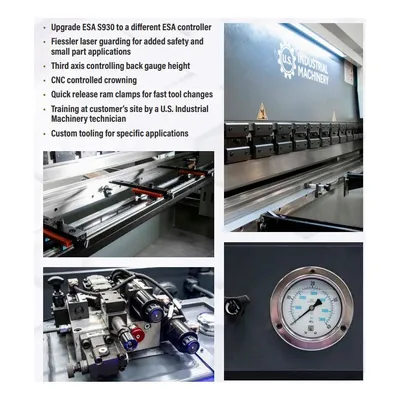

OPTIONAL ITEMS:
Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4) ... $5,995.00
Add Third Axis (Back Gauge Height controlled from operator panel.) .... $4,995.00
Upgrade to Cam-Lever Quick Action Ram Clamps ................................... $6,495.00
Training in our Memphis, TN Facility ............................................................. $750.00
Training at customer site, more than 300 miles from Memphis: (If outside continental USA, please call for quote) ................ $4,995.00
