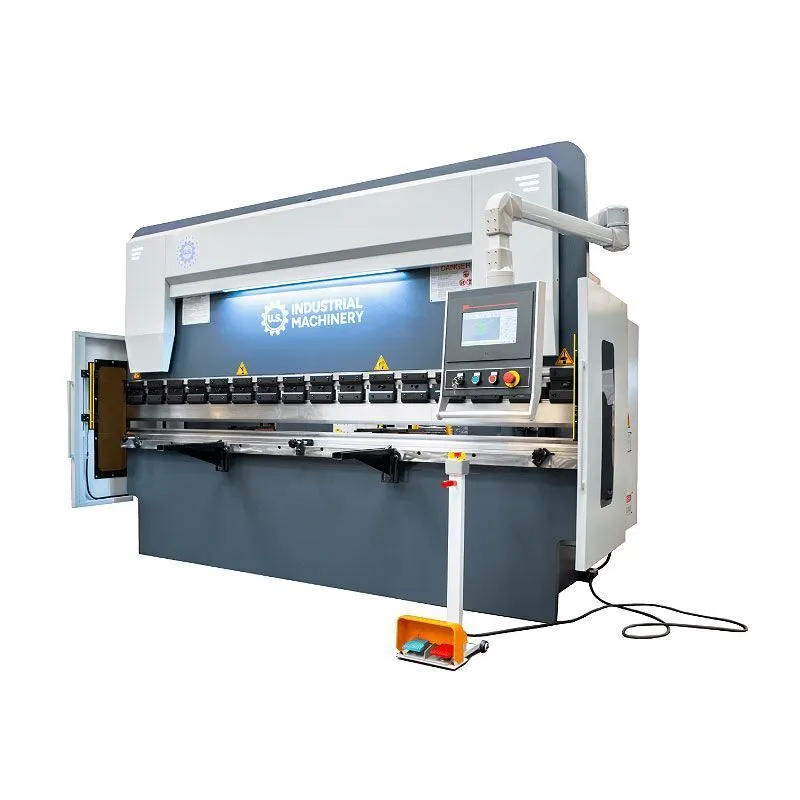

NEW US INDUSTRIAL USHB155-8C

Florida, United States
Asking Price
USD $71,980.00
1 available
3,628Listings|6Followers
Overview
Press Brakes

U.S. INDUSTRIAL USHB155-8C, a new CNC Hydraulic Press Brake, offers 155-ton pressure, 8' table, and 2-axis control. Features include 15 hp motor, 3-phase voltage, and 5.12" ram travel. Optional upgrades and training available.

Specs
Pressure/Tonnage
155 T
140.614 t
Table Length
8'
2.4 m
# Axis
2
2
Throat Depth
12.6"
320.04 mm
Table Length
98.4"
2,499.4 mm
Pressing Speed
0.33 in./sec
0.33 in./sec
Rapid Ram Travel Speed
3.2 in/sec.
80 mm/sec.
Rapid Ram Retreat Speed
2.8 in/sec.
70.1 mm/sec.
Distance Between Housings
72.83"
1,849.9 mm
Backgauge Travel
24"
609.6 mm
Motor Power
15 hp
11.2 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Ram travel
5.12"
130.05 mm
Open Height
14.96"
379.98 mm
Hydraulic Oil Capacity
53 gal
200.6 L
Control
CNC
CNC
Dimensions
118 x 73 x 101 in.
118 x 73 x 101 in.
Weight
15,435 lbs
15,435 lbs

*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

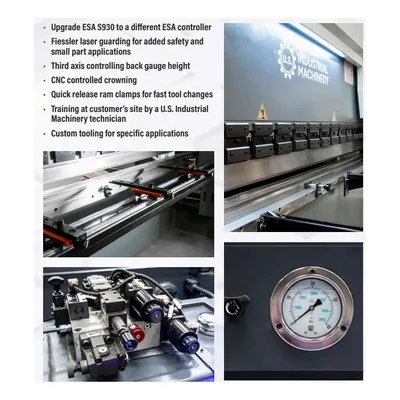

OPTIONAL ITEMS:
Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4) ... $5,995.00

Add Third Axis (Back Gauge Height controlled from operator panel.) .... $4,995.00

CNC Controlled Mechanical Auto Crown ..................................................... $6,495.00

Upgrade to Cam-Lever Quick Action Ram Clamps ................................... $3,295.00

Training in our Memphis, TN Facility ............................................................. $750.00

Training at customer site, more than 300 miles from Memphis: (If outside continental USA, please call for quote) ................ $4,995.00
