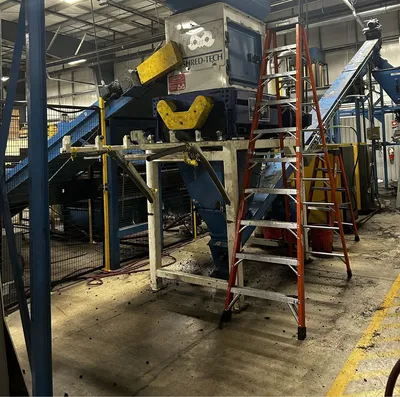

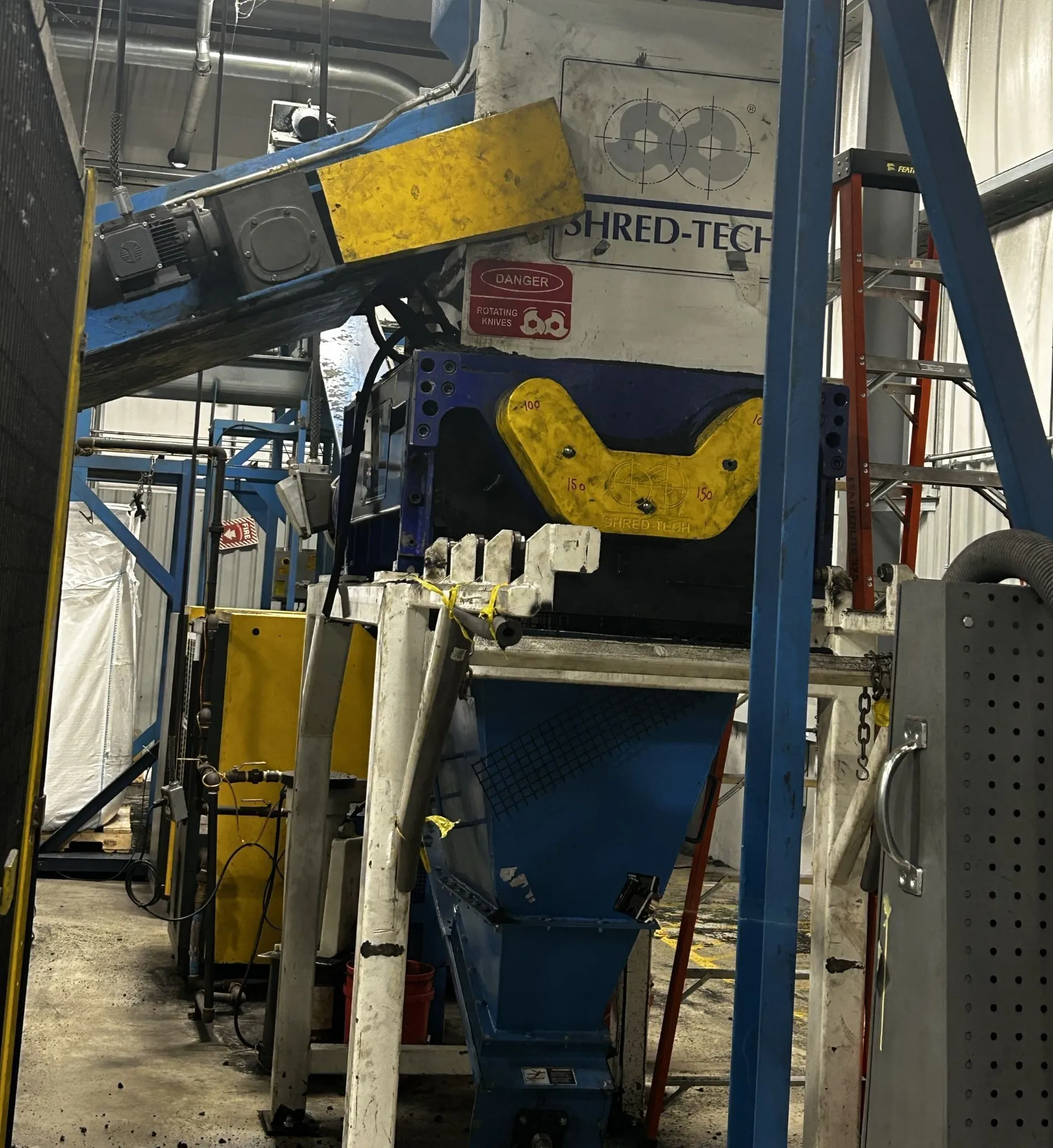

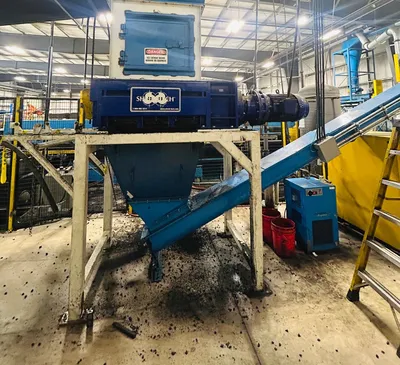

USED 2015 SHRED-TECH STQ-50E

• Equipment:
• Manufacturer: Shred-Tech
• Model: STQ-50E
• Type: Quad-Shaft Shredder
• Condition: Used

• Dimensions:
• Cutting Chamber: 39 in. x 28 in.
• Length: 136 in.
• Width: 55 in.
• Height: 109 in.
• Hopper Height: 43 in.
• Discharge Height: 42 in.
• Floor Space Required: 52 sq. ft.

• Weight:
• Approximate Weight: 6,900 lbs.

• Power & Drive System:
• Drive Type: Electric
• Number of Motors: 2
• Total Horsepower: 50 HP
• Motor Configuration: Dual 25 HP Motors with Gear Reducers

• Electrical Requirements:
• Voltage: 208–600 VAC
• Phase: 3-Phase
• Frequency: 50/60 Hz

• Cutting Assembly:
• Shredder Type: Quad-Shaft (4 Mechanical Shafts)
• Knife Thickness: 7/8 in. or 1-3/16 in.
• Number of Knives: 96 (7/8 in.) or 64 (1-3/16 in.)
• Main Shaft Knife Diameter: 12-1/4 in.
• Secondary Shaft Knife Diameter: 10-1/2 in.
• Main Shaft Size: 4-1/2 in. Hex
• Secondary Shaft Size: 3-3/8 in. Hex
• Distance Between Main Shafts: 9-1/2 in.
• Distance Between Secondary Shafts: 20-1/2 in.
• Sizing Screen: Integrated Rollout Screen

• Controls:
• PLC-Based Control Panel
• Automatic Overload Knife Reversal
• Triple-Seal Cutting Chamber
• Heavy-Duty Torsion Tube Body Construction

• Typical Applications:
• Electronic Scrap
• Plastic Scrap
• Wood Waste
• Medical Waste
• Product Destruction
• Municipal Solid Waste
• Industrial Waste
