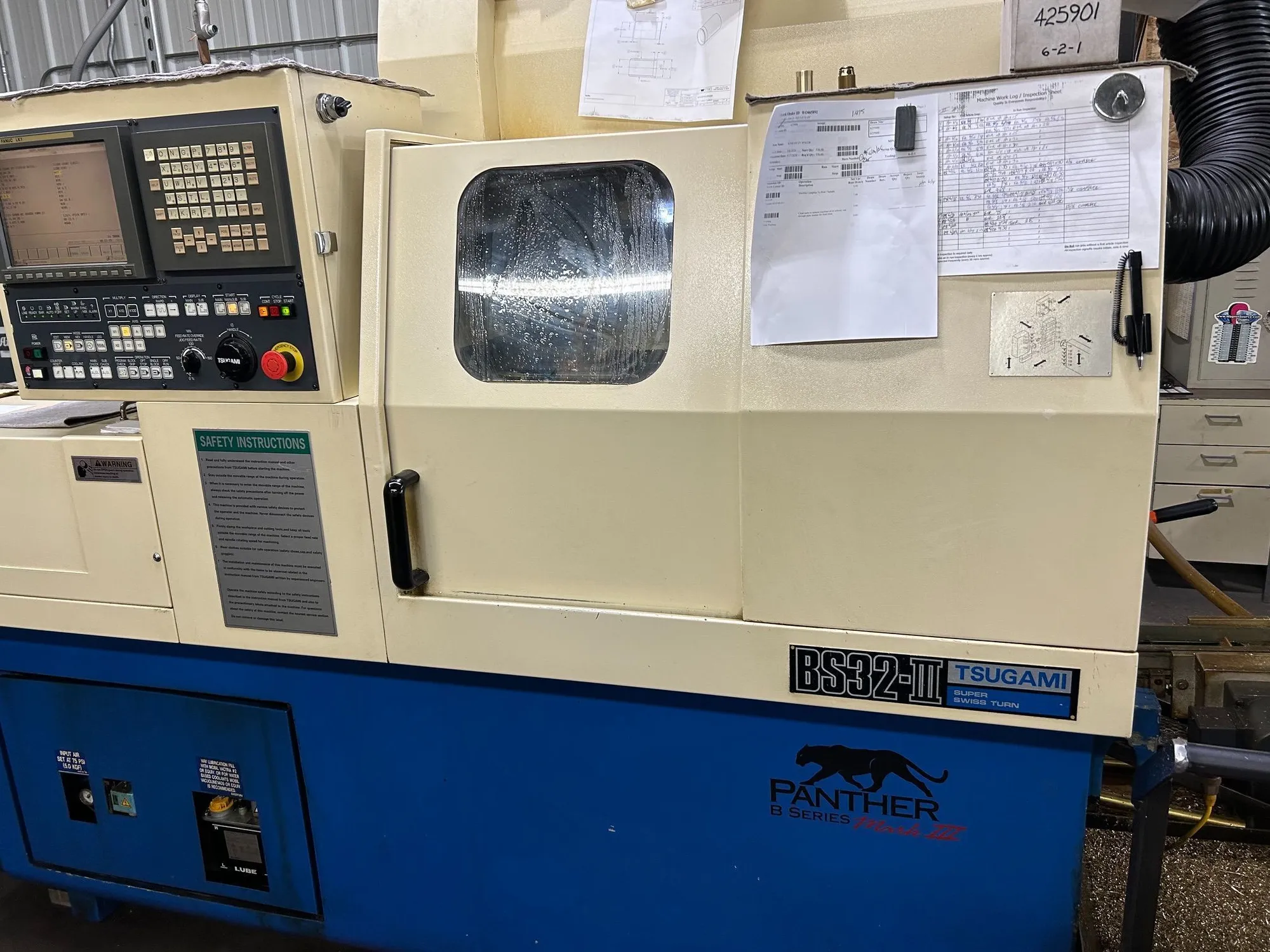

USED TSUGAMI BS-32C MARK III

General Specifications:
Number of Controlled Axes: 7 (X1, Z1, A, C1, X2, Z2, Y2)
Bar Diameter: 1.25" / 32m
Workpiece Length: 9.8" / 250mm
Main Spindle Drilling Diameter: 0.47" / 12mm
Main Spindle Tapping Diameter: M10
Sub-Spindle Gripping Diameter: 1.25" / 32mm
Sub-Spindle Drilling Diameter: 10mm
Sub-Spindle Tapping Diameter: M8
Tool Spindle Drilling Diameter: 0.31" / 8mm
Tool Spindle Tapping Diameter: M6
Tool Spindle Slotting Cutter Diameter: 1.77" / 45mm
Back Rotary Tool Drilling Diameter: 0.23" / 6mm
Back Rotary Tool Tapping Diameter: M5
Main Spindle Speed: 7,000 RPM
Sub-Spindle Speed: 6,000 RPM
Tool Spindle Speed: 5,000 RPM
Back Rotary Tool Speed: 4,000 RPM
Total Number of Tools: 20
Tool Size: 0.62" x 3.93" / 16 x 100 mm
Rapid Traverse Rate: 787 IPM
Main Spindle Index Function: C Axis
Main Spindle Power: 7.3 HP
Sub-Spindle Power: 2.9 HP
Tool Spindle Power: 1.2 HP
Back Rotary Tool Power: 0.67 HP
