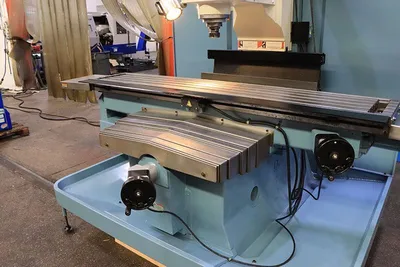

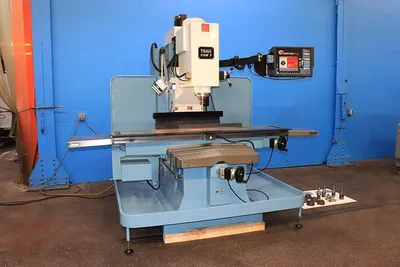

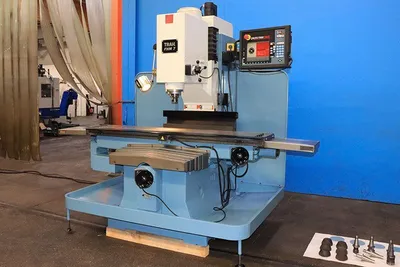

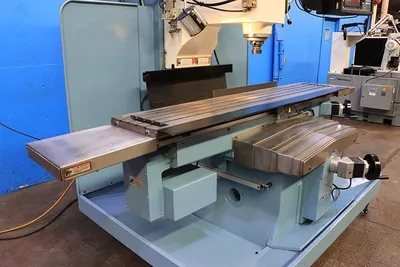

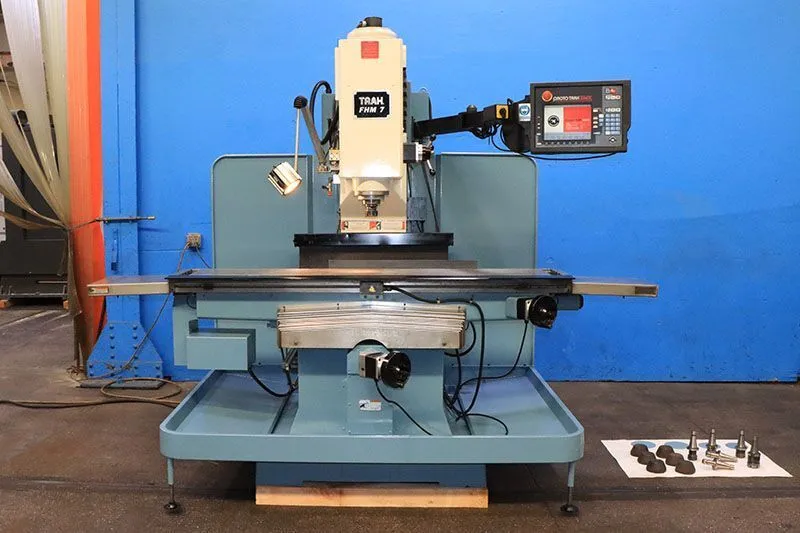

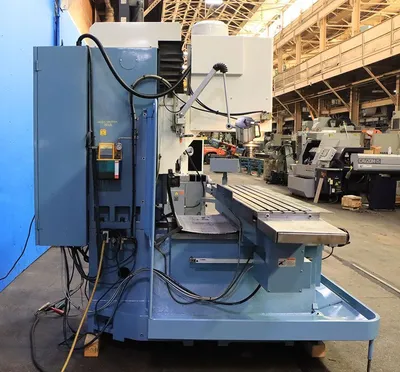

USED 2012 SOUTHWESTERN TRAK FHM 7

2012 SOUTHWESTERN TRAK FHM 7 CNC vertical mill with Proto-TRAK SMX control, 7.5 HP spindle motor, and a robust 7,975 lbs build. Enjoy features like linear/circular interpolation, automatic lubrication, ball screws, and more. Ideal for precision tasks.

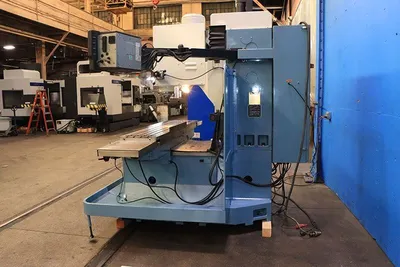

SOUTHWESTERN INDUSTRIES CNC VERTICAL MILL

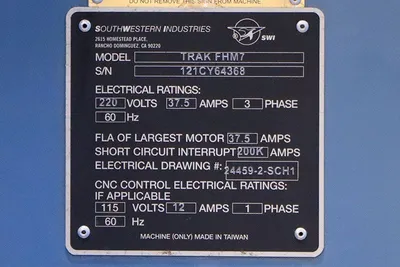

MODEL: FHM 7, S/N: 121CY64368, NEW: 2012

SPECIFICATIONS:
TABLES SIZE ...................... 76" X 14"
TRAVELS:
TABLE (X-AXIS) .................. 60"
SADDLE (Y-AXIS) .................. 23"
HEAD (Z-AXIS) ................... 20.5"
QUILL DIAMETER ................... 5.06"
SPINDLE TAPER .................... #40
SPINDLE SPEED RANGE .............. 200 - 5000 RPM
SPINDLE CENTER TO COLUMN FACE .... 23.75"
SPINDLE MOTOR .................... 7.5 HP
MAX WEIGHT OF WORKPIECE .......... 2,200 LBS
TABLE HEIGHT FROM BED BOTTOM ..... 38.25"
MAX SPINDLE NOSE TO TABLE ........ 24"
MIN HEIGHT ....................... 91.75"
MAX HEIGHT ....................... 101"
APPROXIMATE MACHINE WEIGHT ....... 7,975 LBS.

EQUIPPED WITH:

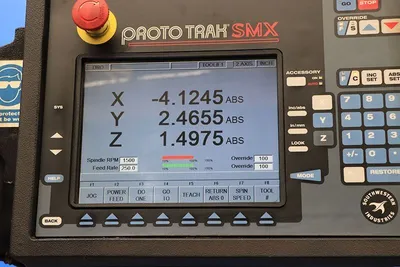

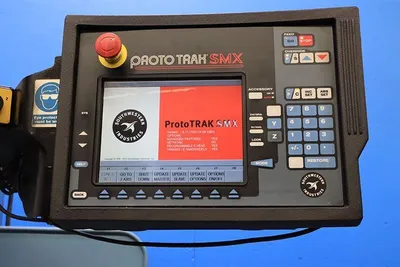

PROTO-TRAK MODEL: SMX CONTROL,
WINDOWS OPERATING SYSTEM,
ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
& MUCH MUCH MORE!
TRAKing/ELECTRONIC HANDWHEELS

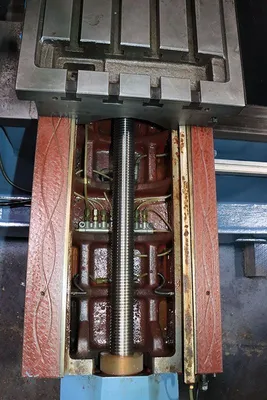

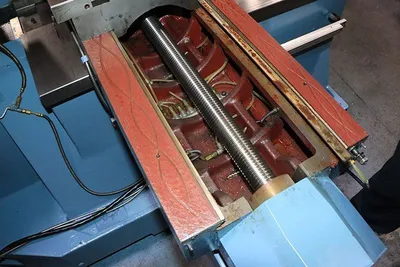

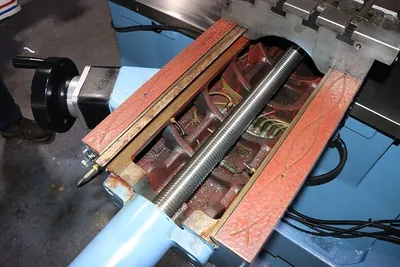

BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES

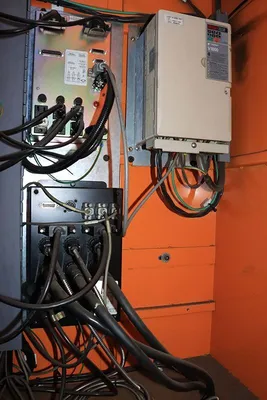

YASKAWA SPINDLE DRIVE

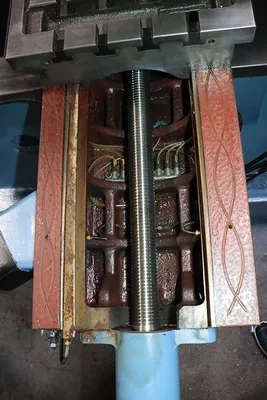

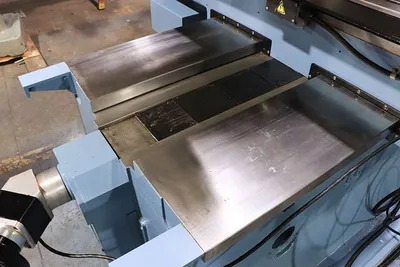

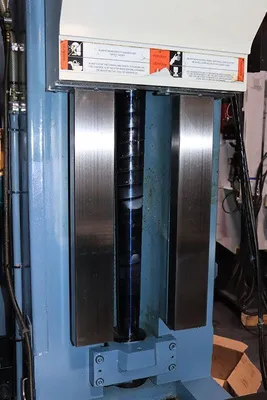

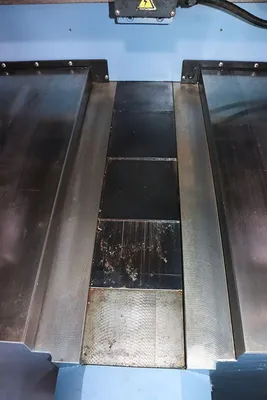

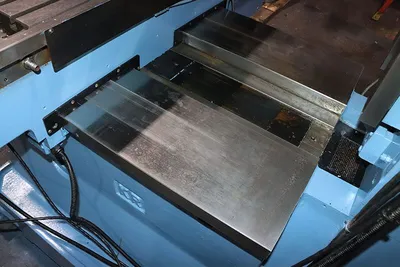

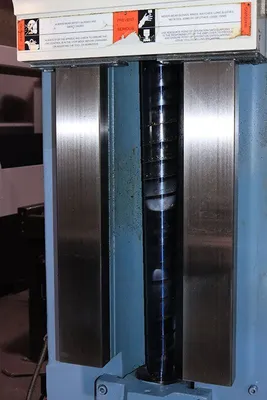

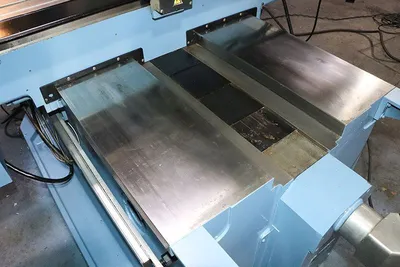

HARDENED & GROUND BOX WAYS
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSE POWER SPINDLE MOTOR & INVERTER
