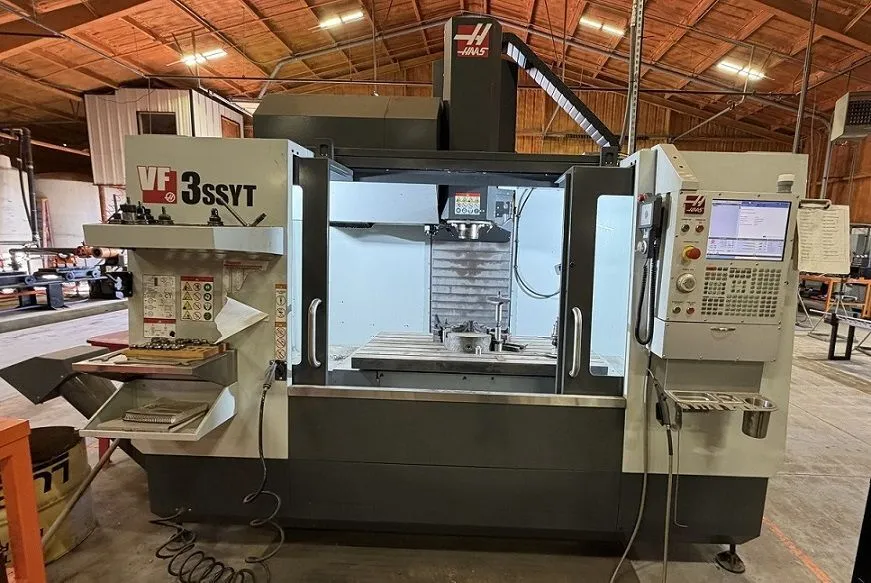

USED 2022 HAAS VF-3SSYT
Overview
Description
Haas VF-3SSYT Vertical Machining Center, New in 2023
Specifications
| X-Axis | 40" | 1,016 mm |
|---|---|---|
| Y-Axis | 26" | 660.4 mm |
| Z-Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 156" x 102" x 109" | 156" x 102" x 109" |
| Weight | 15,000 lbs | 15,000 lbs |
General Specifications:
Table Size: 54" x 24"
Table Load: 1,750 lbs
X-Axis Travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: CT or BT 40, HSK-A63
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 1,400 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30+1
Tool Diameter (Full / Large, Adjacent Empty): 2.5" / 5"
Tool Length: 13"
Tool Weight: 12 lb
Machine Dimensions: 156" x 102" x 109"
Machine Weight: 15,000 lbs
Equipped With
Haas CNC Control
4th Axis Drive
Rigid Tapping
High Intensity Lighting
USB & 1GB Memory
XL Jog Handle w/ Touchscreen
Chip Auger
WIPS (Wireless Intuitive Probing System)
Spindle Orientation
High Speed Machining
Through Spindle Coolant (300 PSI)
CNC Control Cabinet Cooler
