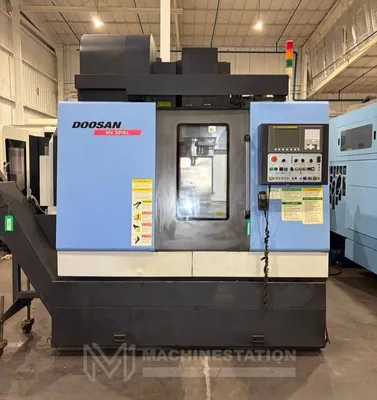

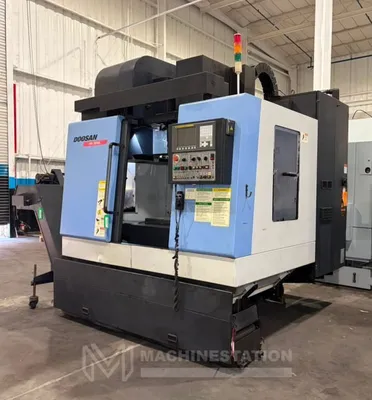

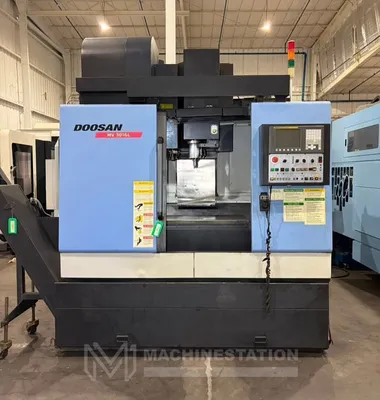

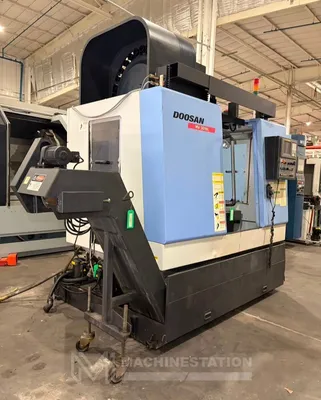

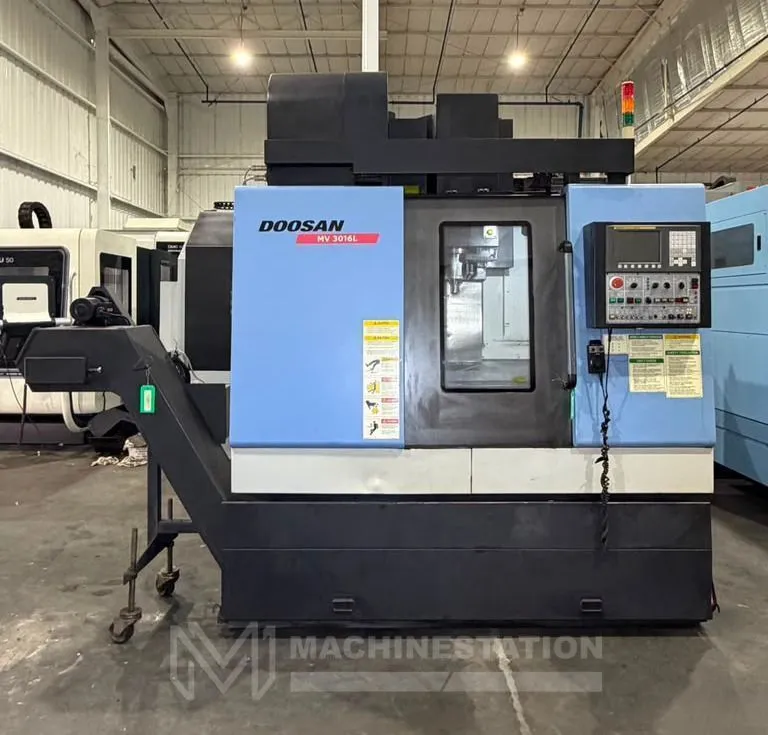

USED 2008 DOOSAN MV 3016L

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

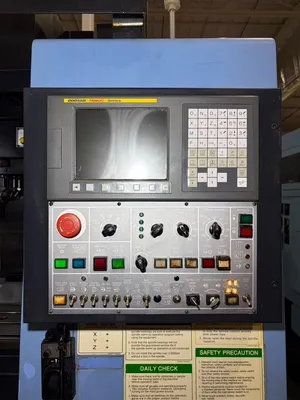

Doosan-Fanuc i-Series CNC Control
Spindle Orientation
Coolant Tank

Travels:
X-Axis: 30.2″
Y-Axis: 17.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 24.25″
Rapid Traverse rates: 1417 IPM
Feed Rates: 590 IPM

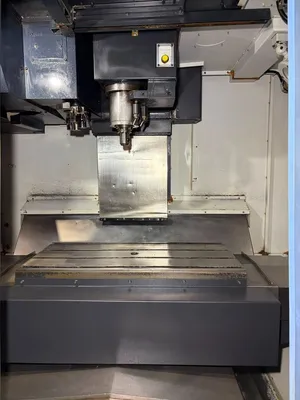

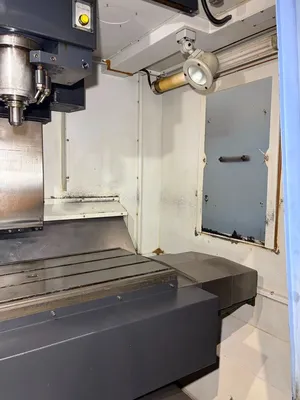

Table:
Length: 36.2″
Width: 17.1″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1300 lbs

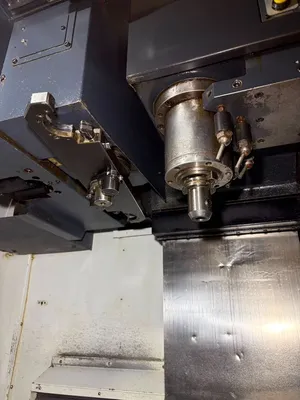

Spindle:
Taper Size: CAT-40
Speed Range: 0 – 8,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.65″
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool Changing Time: 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 34.31 kva / 3-Phase
Overall Dimensions: 130″ x 100″ x 110″ High Approx.
Weight: 11,023 lbs Approx.
