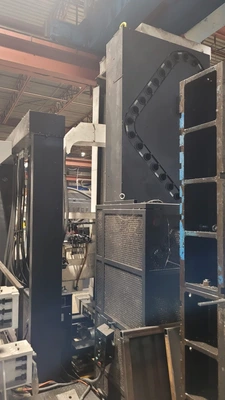

USED 2015 HYUNDAI WIA KBN-135CL

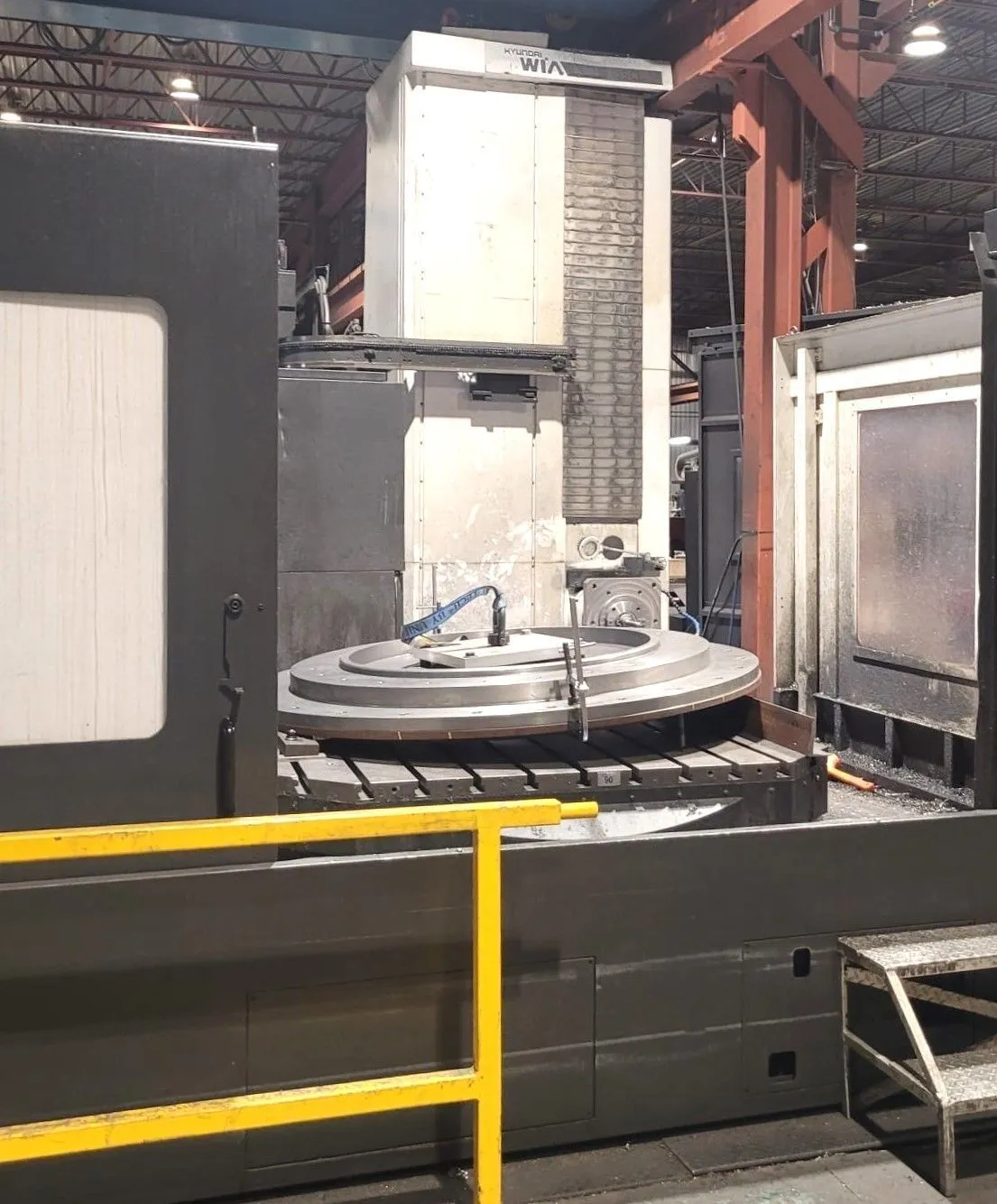

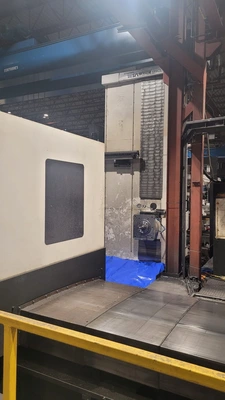

Hyundai Wia KBN-135C 5.3" CNC Table Type Boring Mill (2015)

X-Axis (Table Longitudinal Travel): 4,000 mm (157.4")
Y-Axis (Spindle Vertical Travel): 2,000 mm (78.7") (Optional up to 2,500 mm / 98.4")
Z-Axis (Column/Table Cross Travel): 2,000 mm (78.7")
W-Axis (Quill/Spindle Extension): 700 mm (27.6")
Spindle Diameter: 135 mm (5.3")
Spindle Speed: 2,500 RPM (driven by a heavy-duty 3-step gear transmission)
Drive Motor Power: 22 kW / 26 kW (Continuous / 30-min peak power up)
Spindle Torque: 3,112 N·m (Up to 3,677 N·m optional high-torque configuration)
Spindle Taper: 50

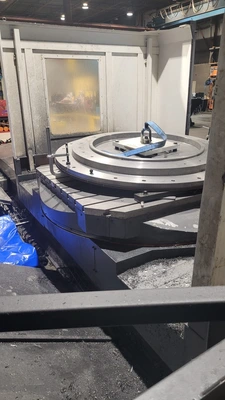

NC Rotary Table (B-Axis)Table Size: 2,000 x 1,800 mm (78.7" x 70.9")
Max Load Capacity: Up to 15,000 kg (Standard) or 20,000 kg (With optional expansion setups)
Table Indexing (B-Axis): Fully programmable 0.001° min. indexing angle with high-precision built-in position encoders.

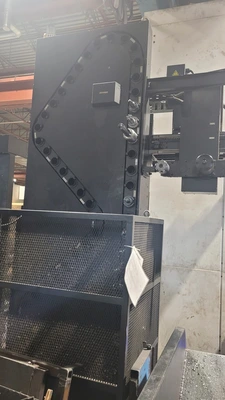

Automatic Tool Changer (ATC) Magazine Capacity:
Max Tool Diameter: Ø125 mm (Ø250 mm without adjacent tools)
Max Tool Length / Weight: 600 mm (23.6") / 20 kg to 30 kg depending on setup
