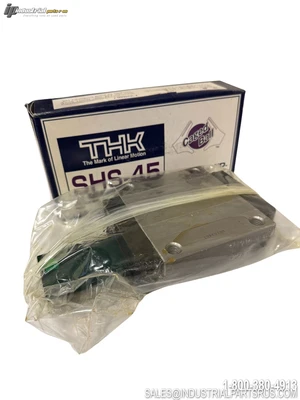

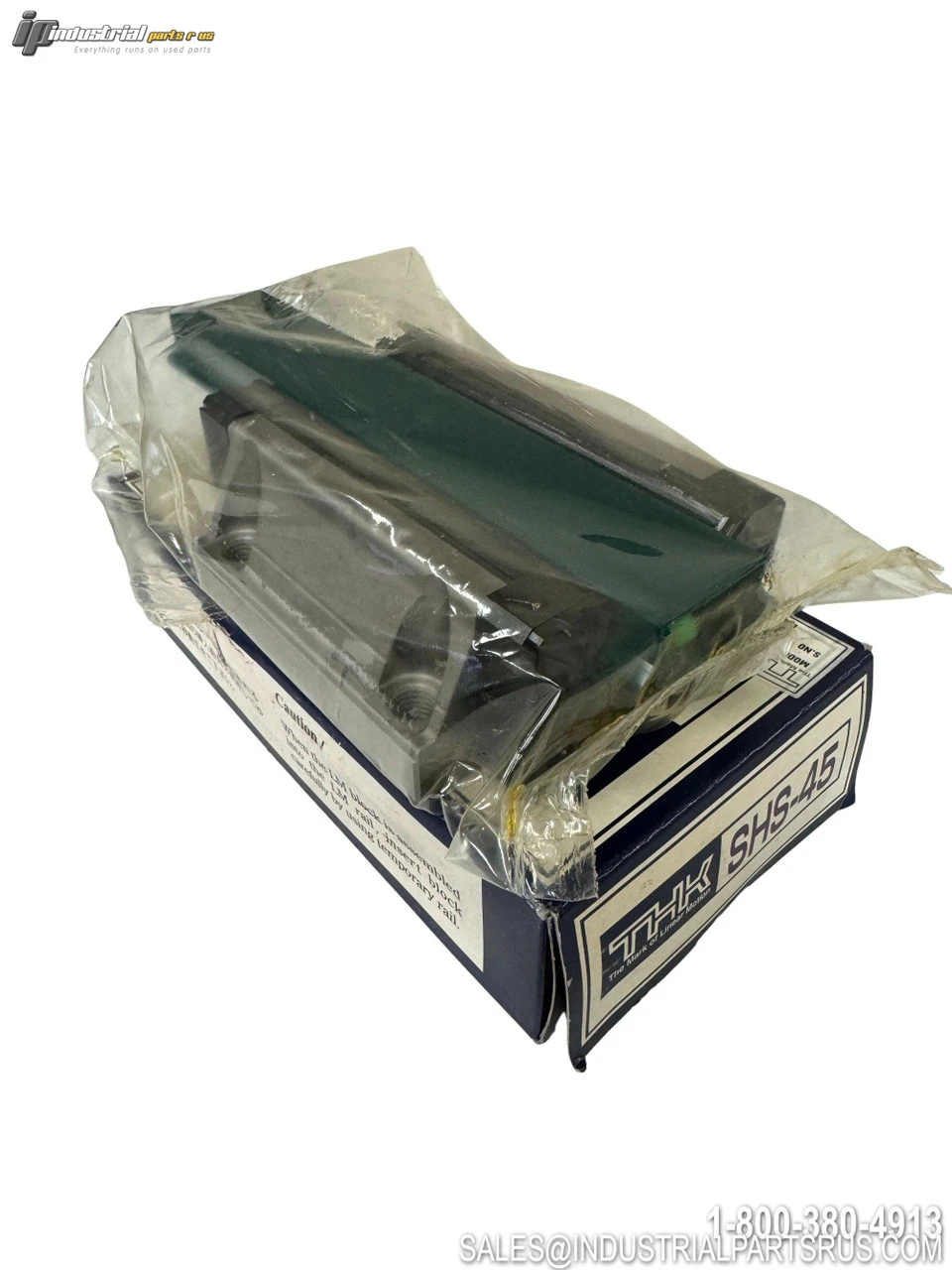

NEW THK SHS45C1SS(GK)

The THK SHS45C1SS(GK) is a Size 45 Caged Ball LM Guide Block from THK's Global Standard SHS Series. It features a C-Style flanged block with tapped holes, enabling mounting from both the top and bottom surfaces, making it ideal for applications where through-holes for bolts are not possible. The block is ordered separately from the rail (GK designation) and includes End Seals plus Side Seals (SS) for contamination protection.
The SHS series uses THK's caged ball technology with four rows of precision-ground raceways and a 45° contact angle, providing equal load capacity in all four directions (radial, reverse-radial, and lateral). The self-adjusting block design absorbs mounting errors even under preload, delivering highly accurate, smooth, and quiet linear motion with extended service life.
Specification
Value
Brand
THK
Model / Part Number
SHS45C1SS(GK)
Product Series
SHS (Global Standard Caged Ball LM Guide)
Size
45 (45mm rail width)
Block Style
C-Style — Flanged Tapped Holes
Number of Blocks
1
Seal Designation
SS — End Seals + Side Seals
Ordering Type
GK — Block Only (ordered separately from rail)
Rolling Element
Caged Ball
Number of Raceway Rows
4
Contact Angle
45°
Load Type
4-Way Equal Load (Radial, Reverse-Radial, Lateral)
Block Mounting Direction
Top Surface Mount / Bottom Surface Mount
Accuracy Grade
Standard Grade (Normal)
Interchangeability
Interchangeable
Basic Dynamic Load Rating (C) — Size 45C
~103 kN (series range: 14.2–205 kN)
Basic Static Load Rating (C0) — Size 45C
~160 kN (series range: 24.2–320 kN)
Rail Width
45 mm
Block Width (W)
120 mm
Block Height (H)
55 mm
Block Length (L)
~134 mm (incl. seals)
Grease Nipple
Included (B-M6F type)
LaCS Compatible
Yes
Max Operating Temperature
+80°C
Material
High-grade hardened steel
Manufacturer
THK Co., Ltd.
We warranty all items for 30 days from date of purchase.
