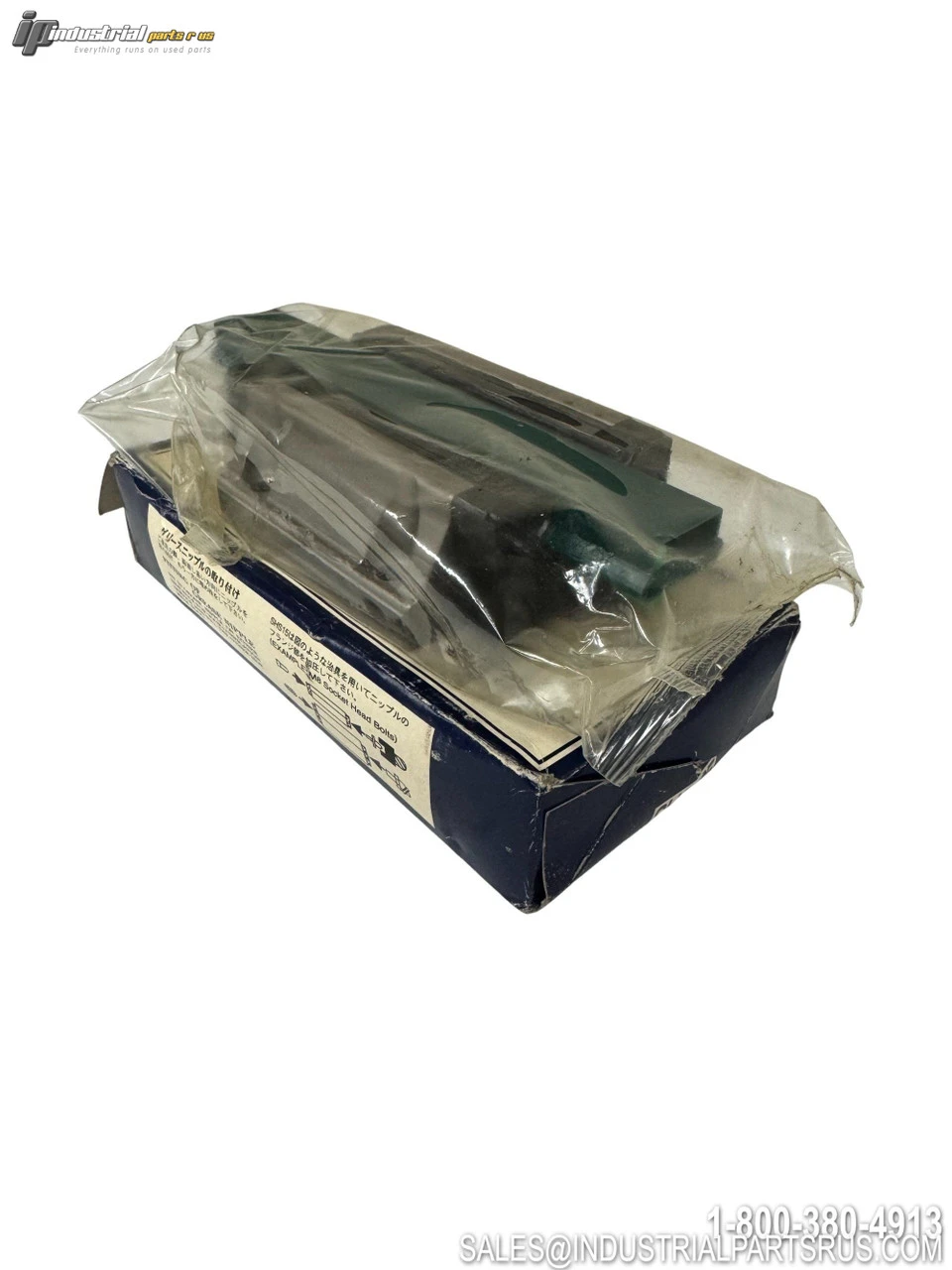

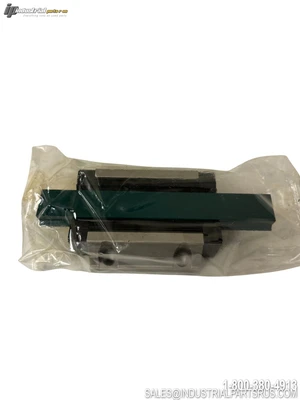

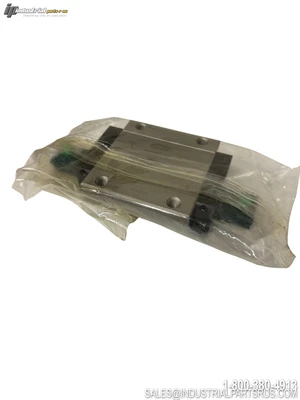

NEW THK SHS35C1SS(GK)

The THK SHS35C1SS(GK) is a Global Standard Interchangeable Caged Ball LM Guide block of the SHS-C (flanged) series, designed for precision linear motion on 34–35mm profile rails. The flanged block features tapped mounting holes on the flange face, allowing installation from either the top or bottom surface—ideal for applications where through-hole mounting is not possible. With a 4-way equal load structure and caged ball retainer design, it delivers smooth, low-noise, high-speed operation with extended maintenance intervals.
Specification
Value
Brand
THK
Model / Part Number
SHS35C1SS(GK)
Product Type
Caged Ball LM Guide Block (Linear Guide Carriage)
Series
SHS (GK — Global Standard Interchangeable)
Block Type
C — Flanged Block (Top or Bottom Mount)
Rail / Nominal Size
35 mm (Rail width: 34 mm)
Block Width (W)
100 mm
Block Length (L)
122 mm
Assembly Height (K)
40.5 mm (overall assembled height: 48 mm)
Basic Dynamic Load Rating (C)
62.3 kN
Basic Static Load Rating (C0)
96.6 kN
Bolt Hole Pitch
80 mm
Mounting Hole Size
M10
Seal Type
SS — End Seal, Side Seal, and Inner Seal (1SS = single end seal set)
Ball Retainer Type
Caged Ball (Ball Cage)
Load Direction
4-Way Equal Load (Radial, Reverse Radial, Lateral)
Contact Angle
45°
Accuracy Grade
Normal (Standard)
Interchangeability
Yes — GK Global Standard Interchangeable
Mounting Orientation
All orientations (top, bottom, side)
Weight
1.9 kg
Manufacturer
THK Co., Ltd.
We warranty all items for 30 days from date of purchase.
