USED 1997 HARDINGE HLV-H
Overview

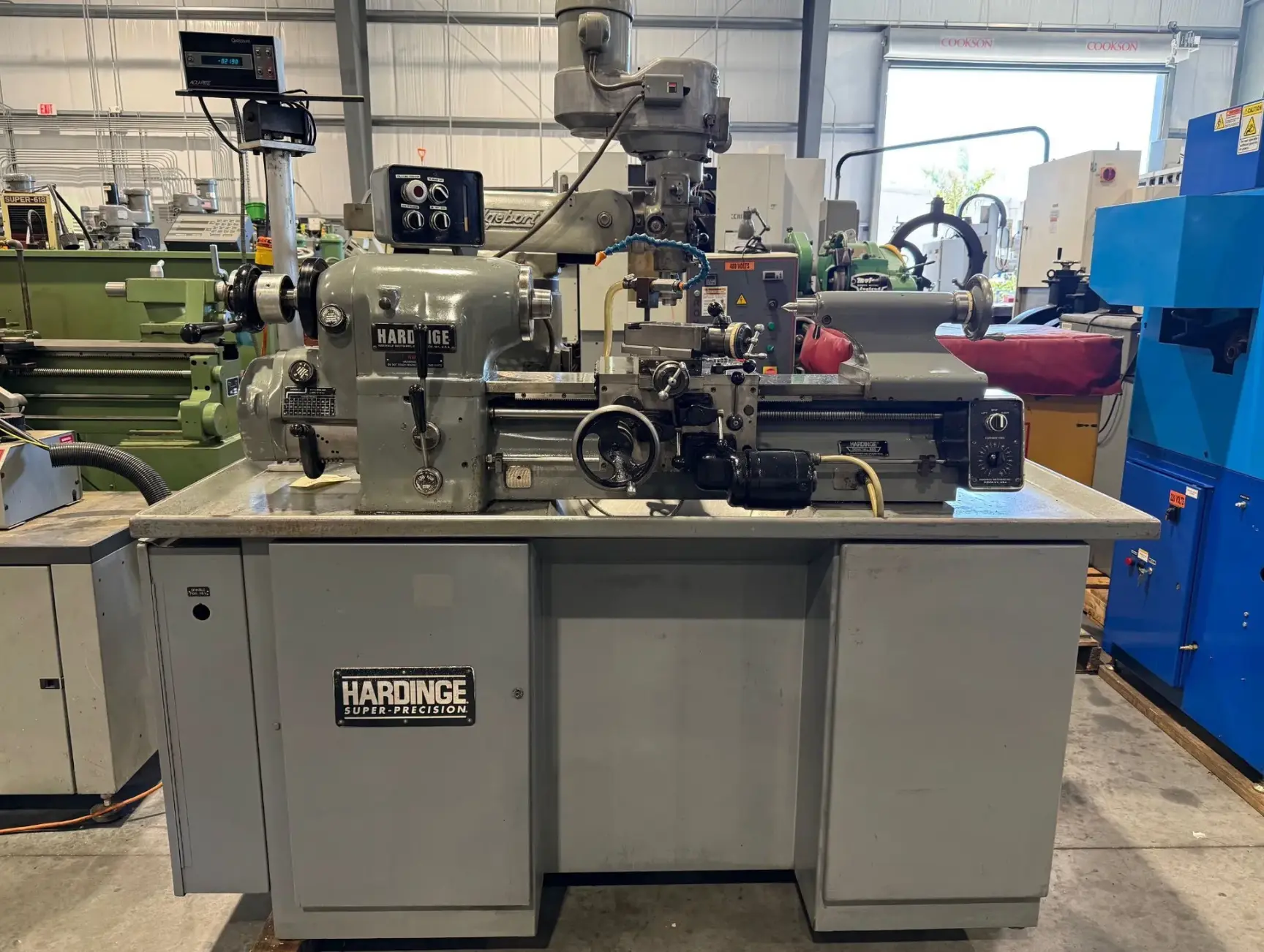

1997 HARDINGE HLV-H Precision Lathe, spindle speeds of 125-3,000 RPM, plus a 3-axis ACURITE DRO. Weighs 1,750 lbs with dimensions of 70"L x 30"W x 60"H.
Specs
Spindle construction- HARDINGE ball bearing
Spindle nose- HARDINGE taper
Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" to 6"
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125 - 3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”
Compound slide travel- 3”
Carriage power feed range- 5/16 – 7 I.P.M.
Cross slide power feed range- 3/16 - 4 I.P.M.
Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT
Inch threading range in gearbox (36)- 11 - 108 T.P.I.
Equipped With
ACURITE single axis DRO Digital Readout
Ball bearing quick acting 5C collet closer
(2) Adjustable longitudinal carriage stops
Self contained coolant system
.5 - 1 H.P. 3/60/208 volt two-speed main drive motor and electrical controls
Machine weight- 1750 Lbs.
Machine dimensions- 70’’ L x 30’’ W x 60’’ H
