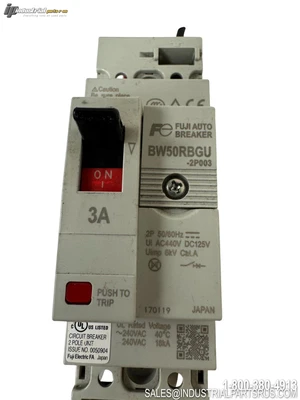

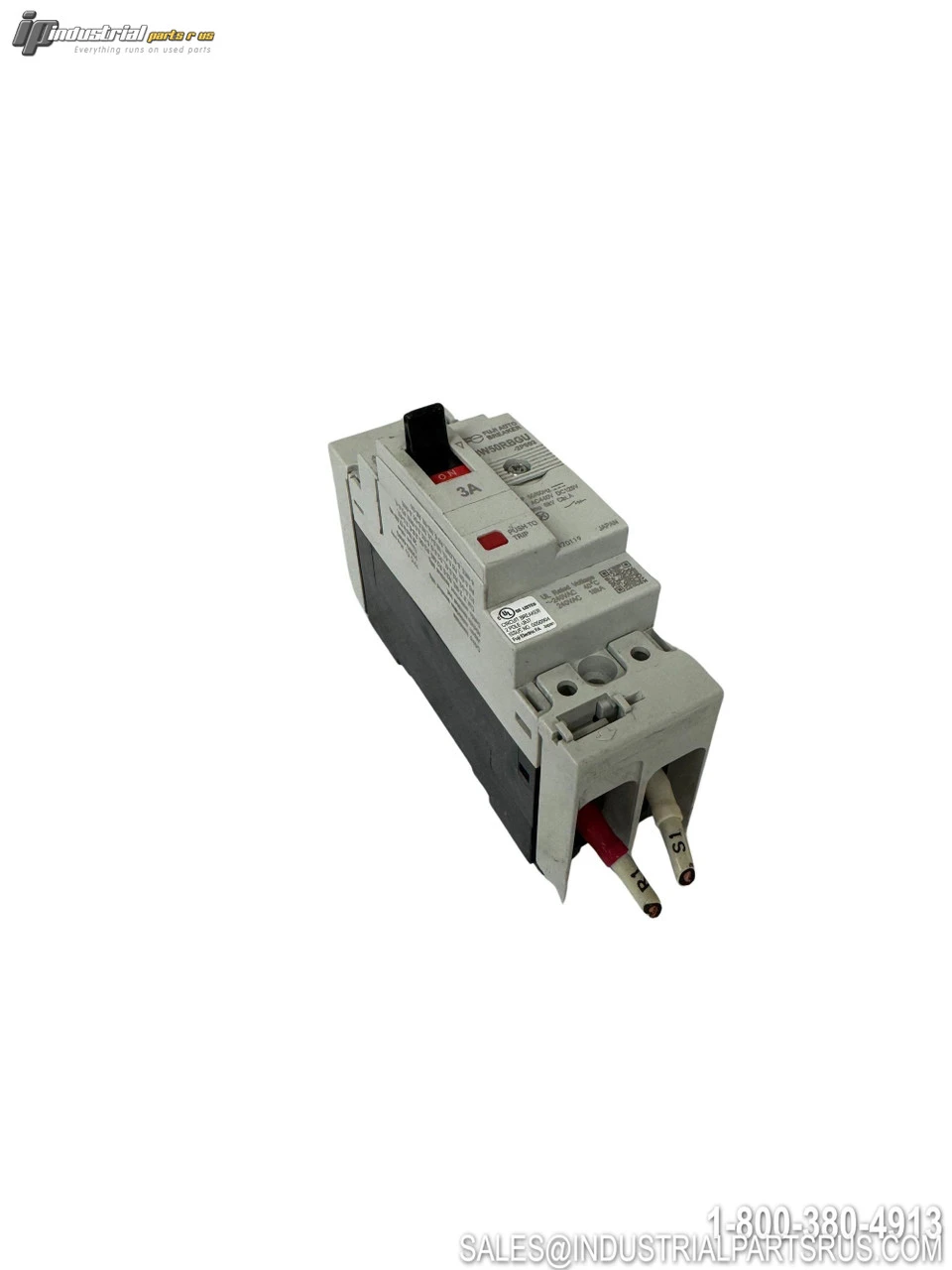

USED FUJI BW50RBGU-2P003

The Fuji Electric BW50RBGU-2P003 is a 2-pole Earth Leakage Circuit Breaker (ELCB) from the G-TWIN Global series, rated at 3 amperes with a 50AF (50 ampere frame) molded case construction. It provides combined overload, short circuit, and ground fault (earth leakage) protection at a 30mA sensitive trip current, conforming to international standards including UL489, CSA, IEC/EN (CE), GB (CCC), and JIS. The unit features hydraulic magnetic tripping, IP20 protection, RoHS-compliant cadmium-free contacts, and supports DIN rail or panel mounting. Accessories such as auxiliary switches, alarm switches, and shunt trip units can be installed in the field.
Specification
Value
Brand
Fuji Electric
Model / Part Number
BW50RBGU-2P003
Product Type
Earth Leakage Circuit Breaker (ELCB)
Series
G-TWIN Global (Lambda) Series
Rated Current
3A
Number of Poles
2
Frame Size (AF)
50AF
Voltage Rating (AC)
240VAC (UL listed) / 690VAC (IEC)
Voltage Rating (DC)
250VDC
Interruption Type
Hydraulic Magnetic
Breaking Capacity Grade
R (High Interrupting Capacity)
Terminal Connection
Screw Terminals
Standards / Certifications
UL, CSA, IEC/EN (CE), GB (CCC), JIS
Compatible Accessories
Auxiliary switch, Alarm switch, Shunt trip (field installable)
Application
Line / Branch Circuit Protection, Ground Fault Protection
