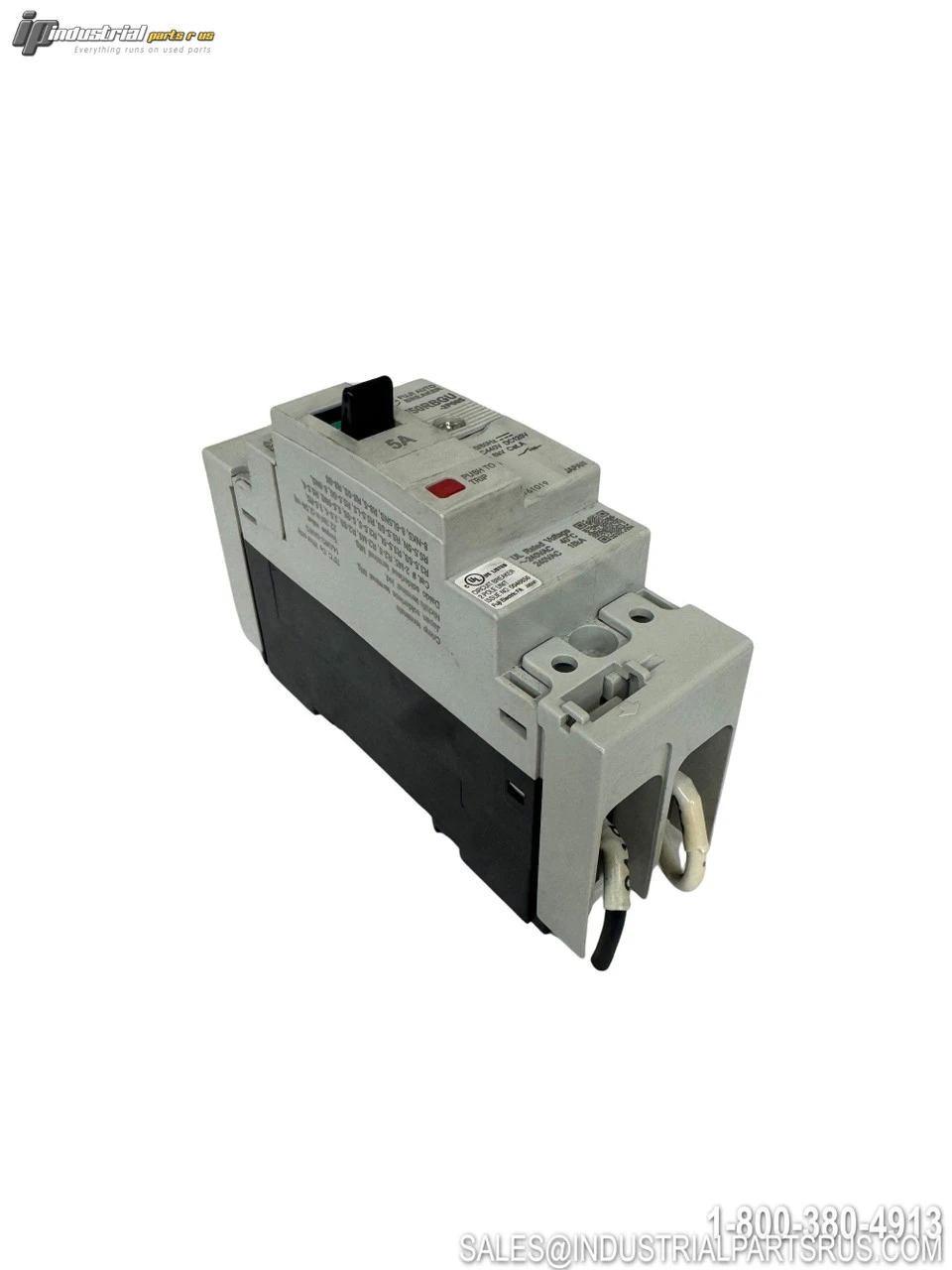

USED FUJI BW50RBGU-2P010

The Fuji Electric BW50RBGU-2P010 is a 2-pole, 10-amp molded case circuit breaker from the G-TWIN Lambda (BW series) global product line. It is designed for branch circuit and equipment protection in industrial and commercial applications, providing overcurrent and short-circuit protection with a 50A frame rating. The breaker features hydraulic-magnetic trip technology for time-delay overload and instantaneous short-circuit protection. It offers compatibility with a wide range of international power systems and supports DIN rail or screw panel mounting with screw-type terminals. Compatible wire gauge ranges from AWG 14 to AWG 6 (75°C copper wire).
Specification
Value
Brand
Fuji Electric
Model / Part Number
BW50RBGU-2P010
Product Type
Molded Case Circuit Breaker (MCCB)
Series
G-TWIN Lambda (BW Series)
Number of Poles
2
Rated Current
10A
Frame Size (AF)
50AF
Voltage Rating (AC)
690VAC
Voltage Rating (DC)
250VDC
Breaking Capacity (Icu)
18kA @ 690VAC (UL)
Mounting Method
DIN Rail / Screw Panel Mount
Terminal Type
Screw Terminal
Dimension Depth
90mm
Certifications
UL Listed
Application
Branch circuit protection, industrial and commercial equipment
Accessories
Auxiliary switch, alarm switch, shunt trip (field installable)
We warranty all items for 30 days from date of purchase.
