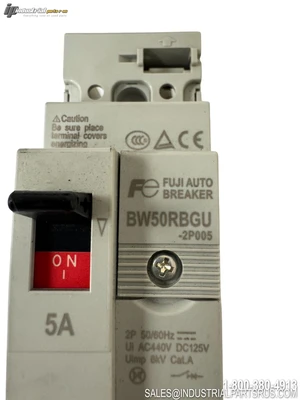

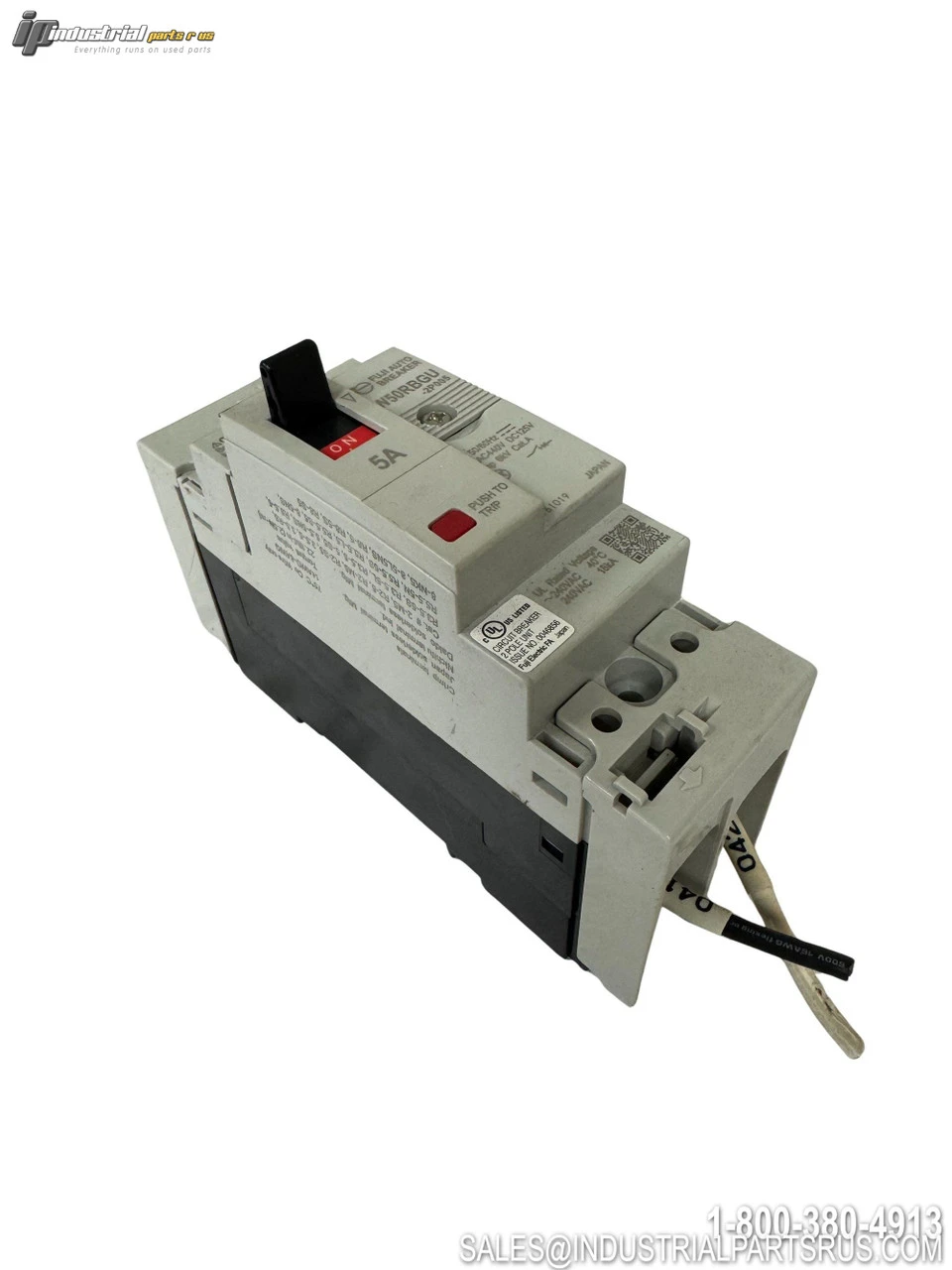

USED FUJI BW50RBGU-2P005

The Fuji Electric BW50RBGU-2P005 is a 2-pole, 5-ampere molded case circuit breaker (MCCB) from the G-TWIN Lambda BW Series, designed for line protection and branch circuit applications. It features a hydraulic-magnetic tripping mechanism within a compact 50A ampere frame and is rated for 240VAC operation with an 18 kA interrupting capacity per UL 489. This global-standard breaker conforms to UL/cUL, IEC 60947-2, EN 60947-2, and JIS C 8201-2-1, and supports DIN rail or screw-panel mounting with field-installable accessories including auxiliary switches and shunt trips.
Specification
Value
Brand
Fuji Electric
Model / Part Number
BW50RBGU-2P005
Product Series
G-TWIN Lambda BW Series
Product Type
Molded Case Circuit Breaker (MCCB)
Number of Poles
2
Rated Current (In)
5A
Ampere Frame
50AF
Rated Voltage (AC)
240VAC
Rated Insulation Voltage (Ui AC)
440VAC
Rated Insulation Voltage (Ui DC)
125VDC
Rated Impulse Withstand Voltage (Uimp)
6 kV
Breaking Capacity UL 489 @ 240VAC (Icu)
18 kA
Breaking Capacity IEC 60947-2 @ 240VAC (Icu/Ics)
15/15 kA
Breaking Capacity IEC 60947-2 @ 440VAC (Icu/Ics)
7.5/4 kA
Breaking Capacity DC @ 125VDC (Icu/Ics)
10/10 kA
Tripping Mechanism
Hydraulic-Magnetic
Application
Line Protection / Branch Circuit Protection
Mounting Method
DIN Rail / Screw Panel
Connection Method
Surface Type (Screw Terminal)
Depth
90 mm
Mass (2-Pole)
0.4 kg
Reference Ambient Temperature
40°C
Field-Installable Accessories
Alarm Switch, Auxiliary Switch, Shunt Trip, Undervoltage Release
Conforming Standards
UL 489, CAN/CSA C22.2 No.5 (cUL), IEC 60947-2, EN 60947-2, JIS C 8201-2-1
EU RoHS Compliant
Yes (2011/65/EU)
ECCN
EAR99
HTSUSA
8536200040
We warranty all items for 30 days from date of purchase.
