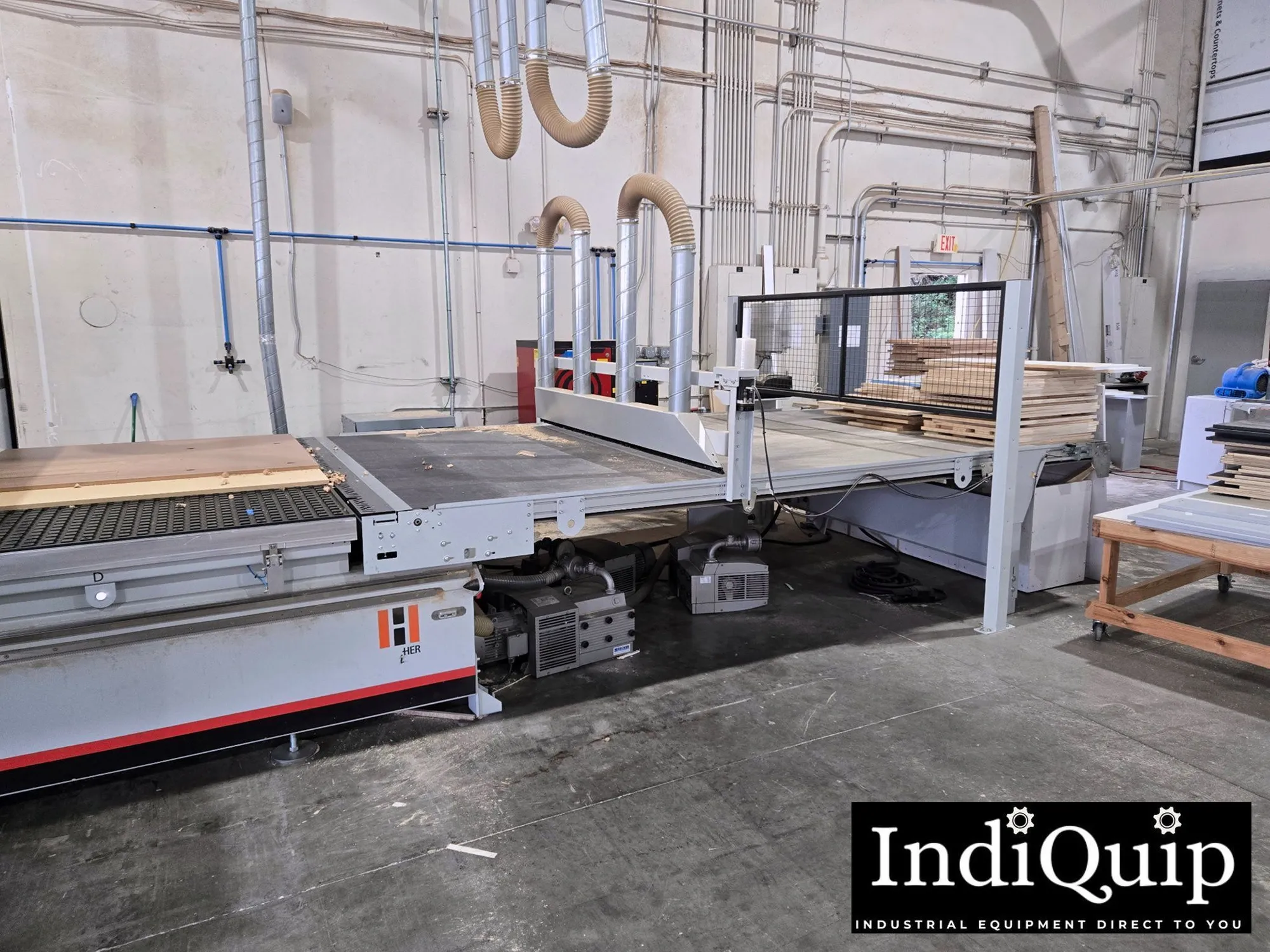

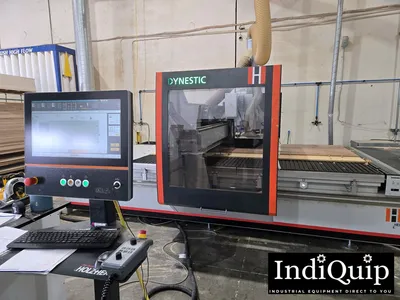

USED 2022 HOLZ-HER Lumina 1380

Control: 21.5" PPC 322W touchscreen, fa.s.t. function, graphic tool correction, ECO mode
Bridge: Motor-driven
Strip Magazine: 5.9 in (150 mm)
Joining: Patented AirStream Technology, 2.36 in (60 mm)
Glue Application: Glu Jet automatic (thin film technology)
Change-over Unit 1: Ltronic with NIR
Change-over Unit 2: Glu Jet automatic
Pressure Unit: 3 rollers, pneumatic and motor-driven
End Trimming: Two motors, pneumatic pivot
Milling: Multifunction 0.31 in (8 mm) + Multi-profile MOT6
Corner Rounding: Dual motor MOT4, 2.36 in (60 mm), pendulum sensor, proportional valve technology, shelf program
Scraper: Includes foil compensation, multifunction 2 radiuses MOT6
Flat Scraper: Application controlled
Buffing: 5° pivot
Overall Length: 18 ft 10 in (5,740 mm)
Weight: 4,409 lbs (2,000 kg)
Feed Rate: 32.8 – 59.1 ft/min (10–18 m/min)
Minimum Workpiece Length: 6.3 in (160 mm, depending on material and section)
Minimum Workpiece Width: 2.36 in (60 mm)
Workpiece Thickness Range: 0.31 – 2.36 in (8–60 mm)
Edging Thickness Range: 0.016 – 0.31 in, up to 0.59 in optional (0.4–8 mm, up to 15 mm)
