NEW DURMA AD-SERVO 30175

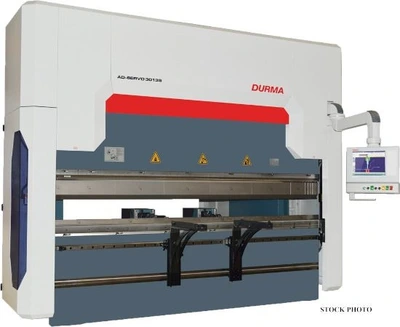

DURMA (NEW) MODEL AD-SERVO 30175 CNC PRECISION PRESS BRAKE

192 TONS BENDING FORCE
10' BENDING LENGTH
8' 6" DISTANCE BETWEEN COLUMNS
10.4" STROKE
20.8" DAYLIGHT
17.71" THROAT
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
438"/MINUTE Y-AXIS APPROACH SPEED
29"/MINUTE Y-AXIS BENDING SPEED
438"/MINUTE Y-AXIS RETURN SPEED
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
TWO 5 HP MOTORS

DELEM DA-66T CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 17" HIGH RESOLUTION COLOR TFT
- FULL WINDOWS APPLICATION SUITE
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING CORRECTION INTERFACE
- DELEM PROFILE-TL OFFLINE SOFTWARE PACKAGE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER AKAS-II LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS INCLUDED
- 4-AXIS BACKGAUGE - X=25.5" X, R, Z1, Z2

HYDRAULIC OIL ADDITIONAL
