USED 2007 OKUMA LOC650/1750 2SC
Overview
Description

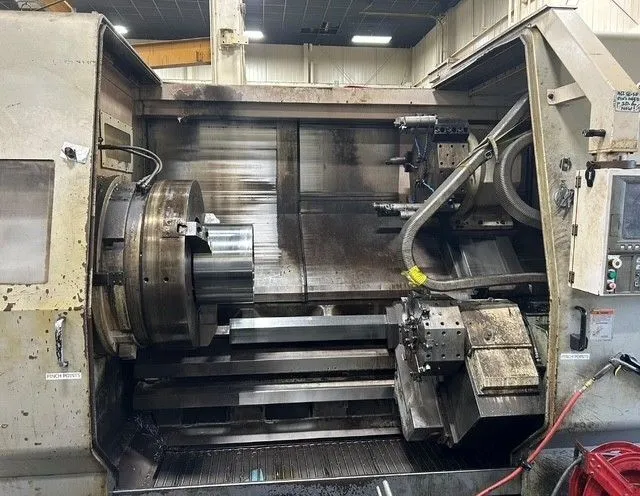

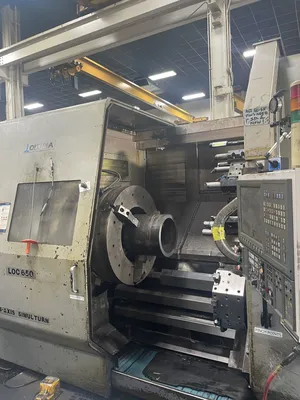

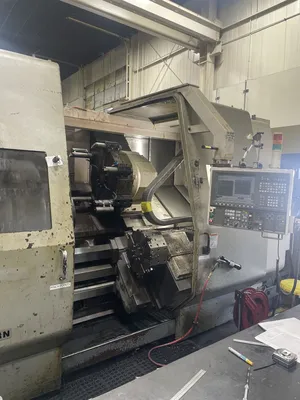

Okuma CNC Slant Bed Hollow Spindle Lathe Model LOC650/1750 2 SC With 22" Spindle Bore
Specifications
| Swing | 35.59" | 903.99 mm |
|---|---|---|
| Center Distance | 68.9" | 1,750.1 mm |
| Turning Dia | 22.05" | 560.07 mm |
| Max RPM | 350 RPM | 350 RPM |
| Bar Capacity | 22" | 558.8 mm |
| Chuck Size | 40" | 1,016 mm |
| Tailstock | Yes | Yes |
| Power | 60 hp | 44.7 kW |
| # Axis | 4 | 4 |
| Control | CNC (OSP-P200L) | CNC (OSP-P200L) |
| Dimensions | R-L 393" X F-B 118" X Height 111.9" | R-L 393" X F-B 118" X Height 111.9" |
| Weight | 58,280 | 58,280 |
Control.....................................................Okuma OSP-P200L
Swing over Way Covers.......................................35.59"
Swing over Saddle...........................................22.05"
Max turning diameter........................................XA - +25.99", XB - +19.68"
Swing over bed..............................................31"
X axis travel...............................................XA - 12.99", XB - 10.41"
Z Axis Travel...............................................ZA - 80.37", ZB - 39.9"
Work range between centers for tailstock machine............68.89"
Spindle nose................................................A2-20
Spindle bore................................................22.04"

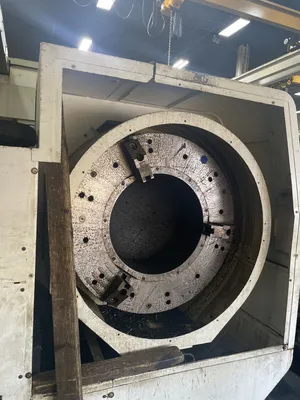

Chuck size front and rear...................................40" Schunk TB-100/560 LH
Spindle speed...............................................4 ~ 350 rpm
No. of gear ranges..........................................2

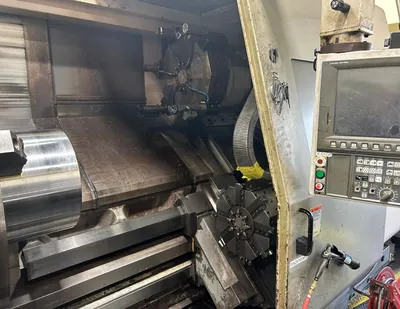

Upper turret................................................V 12
Lower turret................................................V 8
Tailstock...................................................MT No. 6
Main motor..................................................60 hp.
Dimensions..................................................R-L 393" X F-B 118"
Height......................................................111.9"
Weight......................................................58,280 Lbs.
Equipped With:
Chip conveyor...............................................Yes
Variable speed threading....................................Yes
