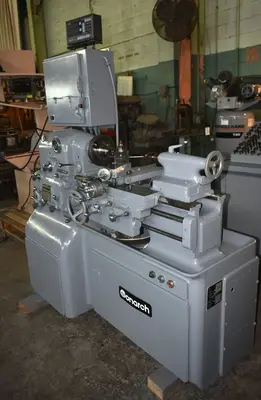

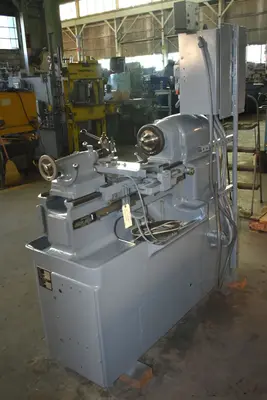

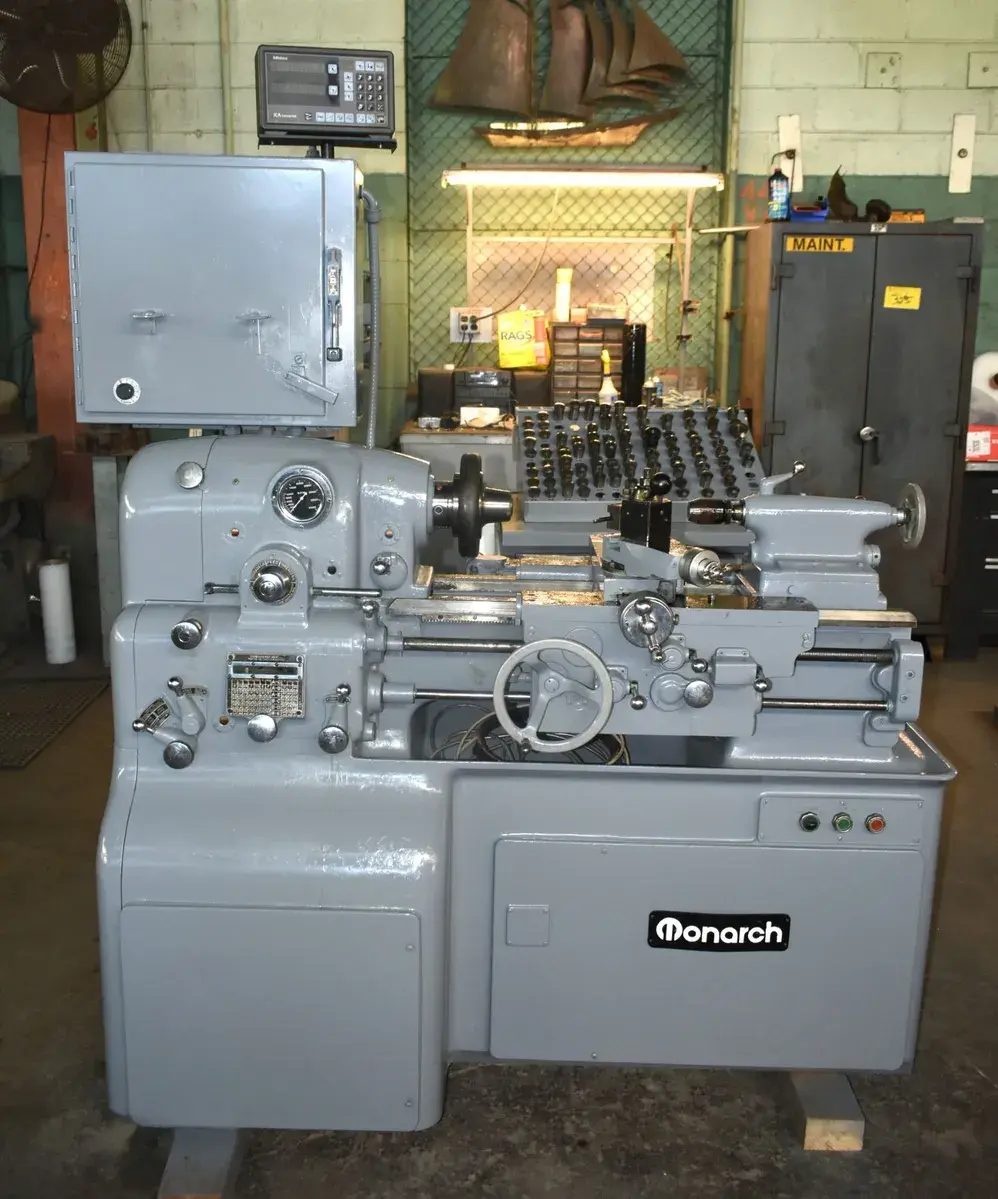

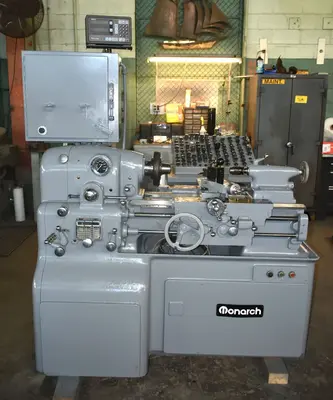

USED MONARCH 10EE
Overview
Used Engine Lathe. Equipped with Mitutoyo 2-axis DRO, taper attachment, and more. Features 12.5" swing over bed and variable spindle speeds up to 4000 RPM. Compact at 5'4"x2'5" and robust at 3450 lbs.
Specs
Hole Thru Spindle 1.41"
Swing Over Bed Ways, Rated 12.5"
Swing Over Cross-Slide 7.25"
Distance Between Centers 20"
Tailstock Spindle Diameter 1.25"
Tailstock Spindle Travel 3.5"
Spindle Speeds, Variable Range 0 to 4000 RPM
(50) Carriage Longitudinal Feeds .0005 to .016 IPR
(60) Thread Changes, Range 3 to 184 TPI
Spindle Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, L x W 5'4" x 2'5"
Weight, Approximately 3450 LBS
Equipped With
Mitutoyo 2-Axis Digital Readouts
Updated Dura "Pulse" Drive
Taper Attachment - Collet Chucks

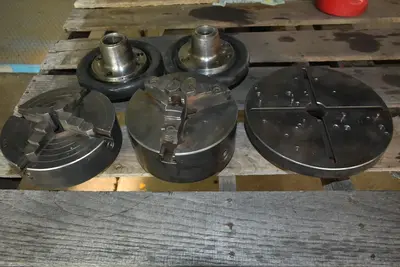

(2) Chucks - Faceplate - Extra Centers

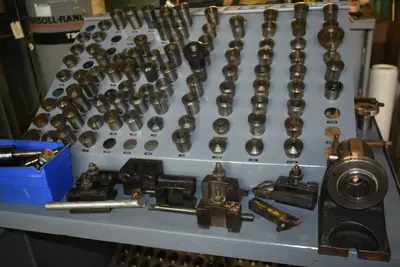

Steady Rest - Large Quantity Of Collets
Flame Hardened & Ground Bed Ways
Coolant System
