USED REDIN 72
Overview

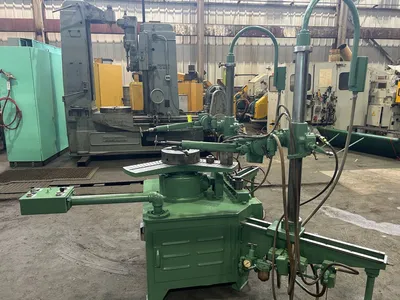

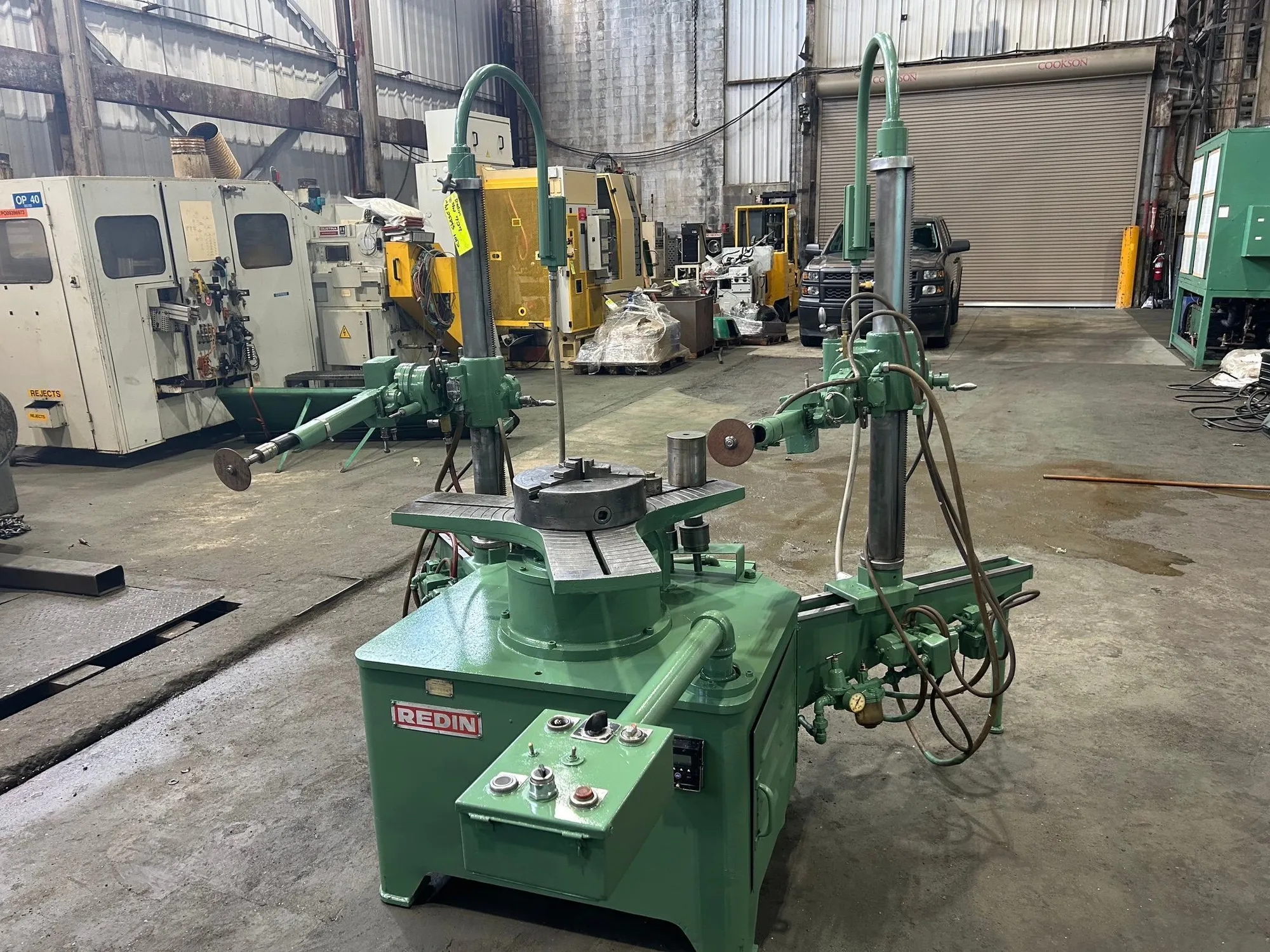

The Redin Model 72 is a heavy-duty, universal dual-arm gear deburring machine designed for the automatic deburring and brushing of internal and external gears. It is widely used in heavy manufacturing for precision finishing of spur and helical gears.
Specs
Specifications:
Work Table Diameter: 36" (915 mm)
Work Spindle Thru-Bore Diameter: 4" (101.6 mm)
Work Spindle Speed Range: .5 - 8 RPM
Work Spindle Motor Drive (Reversible): 3/4 HP DC
Maximum Work-piece Weight: 7,000# (3,182 kg)
Minimum Pitch Diameter External: 0" (00.0 mm)
Maximum Pitch Diameter Internal 68" (1727 mm)
Maximum Face Width: 16" (406.4 mm)
Minimum D.P.: 20 DP (1.27 Module)
Maximum Grinding Wheel Speed: 13,000 RPM
Grinding Spindle Speed (Full Load): 4,000 RPM
Maximum Diameter Work-piece (Nominal) W/Work Table Extension
Brackets Deployed: 72" (1829 mm)
Pneumatic Controls (Approximate): 90 PSI, 36 C.F.M
Overall Dimensions (LxWxH): 88" x 80" x 80"
Approximate Net Weight: 4,000 Lbs (1818 kg)
Equipped With
36" Diameter Tri-Base

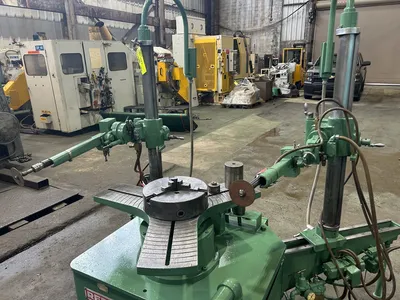

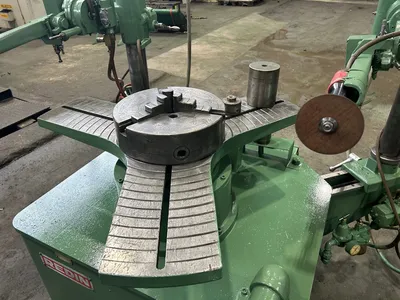

12" 3-Jaw Chuck
Variable Drive Work Table
Power Elevation

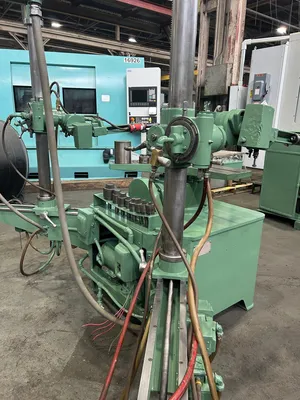

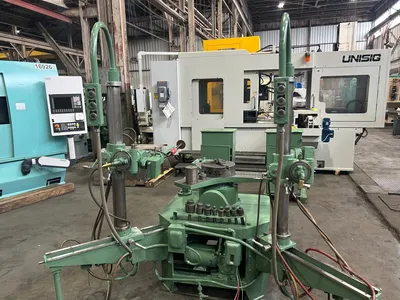

(2) Adjustable Arms

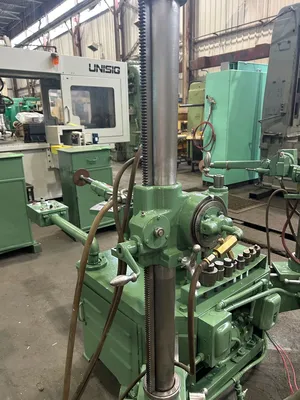

(2) Adjustable Columns

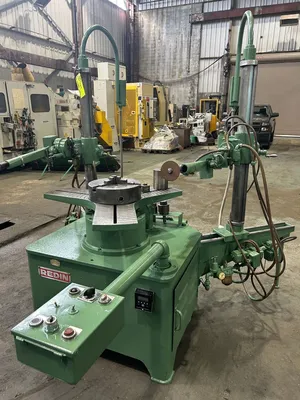

Pendant Controller
Pneumatic System
