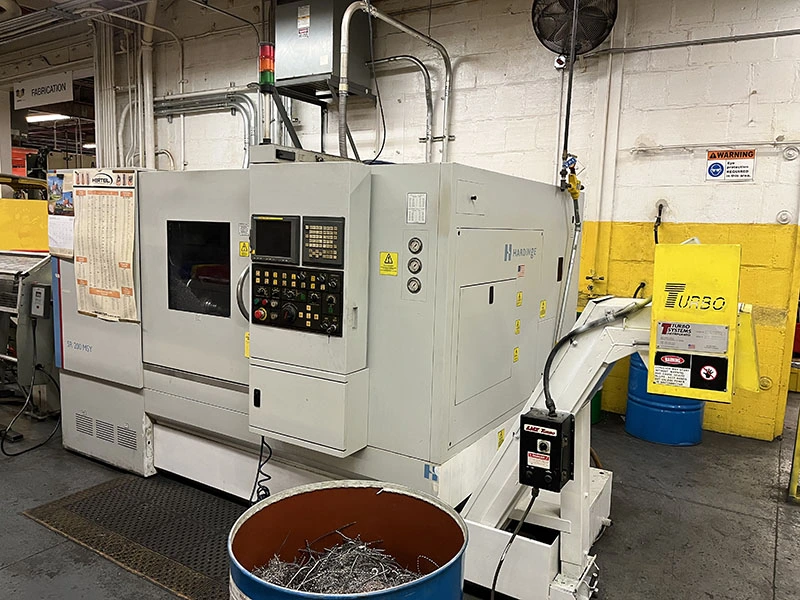

USED 2008 Hardinge SR-200MSY

HARDINGE SR-200BB/MSY MULTI AXIS CNC TURNING CENTER

NEW: 2008

SPECIFICATIONS:

SWING DIAMETER OVER WAY COVER ....... 20.44"

TURNING DIAMETER MAX ................ 12.28"

MAX. TURNING LENGTH ................. 17.2"

X-AXIS TRAVEL ....................... 7.45"

Z-AXIS TRAVEL ....................... 21.54"

Y-AXIS TRAVEL ....................... 3.377"

SPINDLE NOSE ........................ A2-6

SPINDLE THROUGH-HOLE ................ 3.15"

BAR CAPACITY ........................ 2.5"

SPINDLE SPEED RANGE ................. 45-4500 RPM

POWER RATING AT BASE SPEED .......... 30 HP

RAPID TRAVERSE X/Z .................. 1100/1500 IPM

TURRET TYPE ......................... 12 STATION VDI 30

ROTARY TOOL MOTOR ................... 5HP

ROTARY TOOL SPEED ................... 8000 RPM

SUBSPINDLE NOSE ..................... A2-5, 16C

ROUND 16C THROUGH CAPACITY .......... 1.625"

SPINDLE SPEED RANGE ................. 60 TO 6000 RPM

POWER RATING AT BASE SPEED .......... 10 HP

SUBSPINDLE TRAVEL ................... 17.90"

APPROX. MACHINE LENGTH W/CONVEYOR ... 165"

APPROX. WEIGHT ...................... 15,500 LBS.

EQUIPPED WITH:

 - FANUC "i" SERIES SR CNC CONTROL

 - TOOL SETTER

 - PROGRAMMABLE RESOLUTION - .00010"

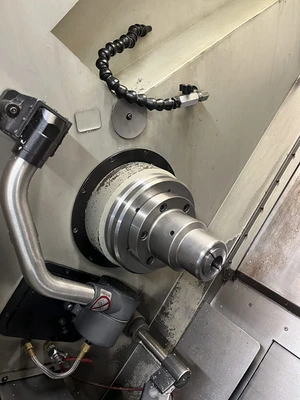

 - HYDRAULIC COLLET CHUCK ON MAINSPINDLE

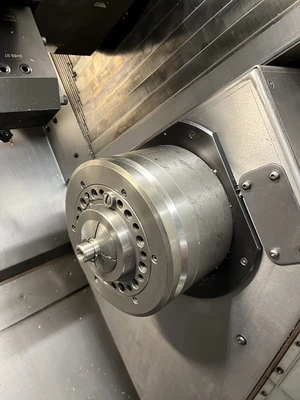

 - 16C COLLET SUBSPINDLE

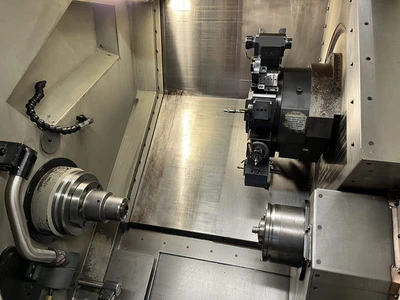

 - FULL C-AXIS ON BOTH MAIN AND SUBSPINDLES

 - Y-AXIS

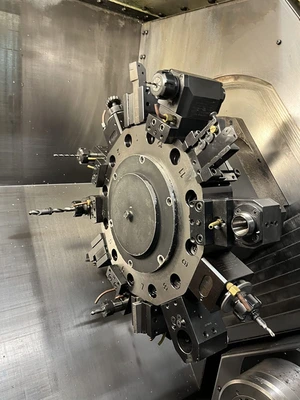

 - 12 STATION VDI 30 TURRET (ALL STATIONS CAN BE LIVE)

 - PARTS CATCHER

 - CHIP CONVEYOR

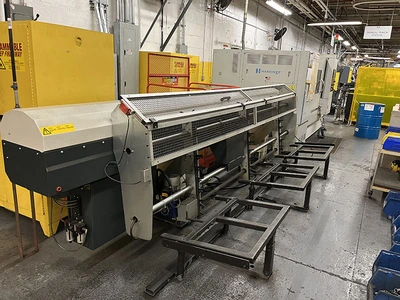

 - LNS SPRINT 565 MAGAZINE BARFEED

 - ALL AVAILABLE STANDARD TOOL HOLDERS

 - ALL AVAILABLE MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
