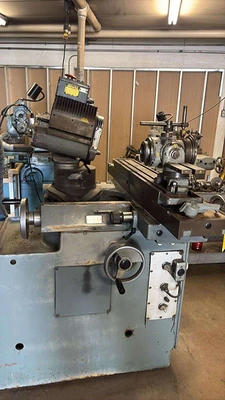

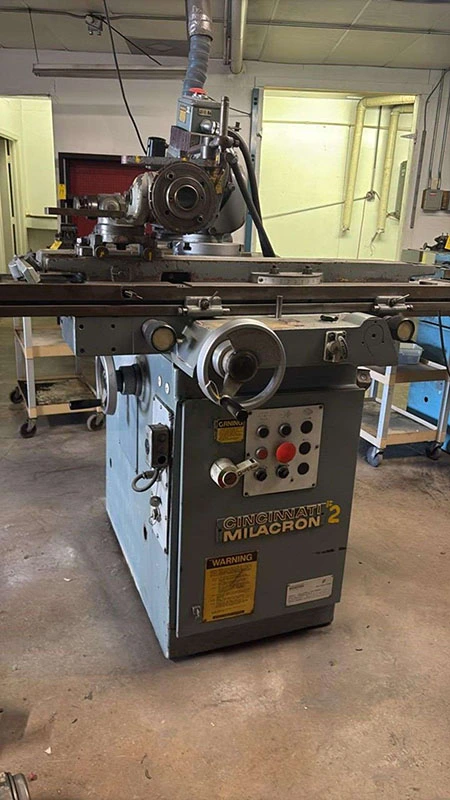

USED 1990 Cincinnati-Milacron No. 2, MODEL MT, 1990, TILT SPINDLE, ACCESSORIES

           #2 CINCINNATI-MILACRON

      UNIVERSAL TOOL& CUTTER GRINDER

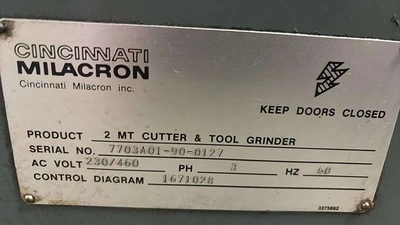

MODEL: MT     S/N: 7703A01-90-0127      NEW: 1990

    ** INSPECT UNDER POWER IN HOUSTON, TEXAS **

      ** EXCELLENT CONDITION & APPEARANCE **

              ** ORIGINAL PAINT **

CAPACITY:

SWING OVER TABLE DIAMETER ....................... 10"

LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"

LENGTH, BETWEEN TAILSTOCK & WORKHEAD ........ 21-1/2"

FACE MILLS ON WORKHEAD DIAMETER ................. 10"

FACE MILLS USING FACE MILL

 GRINDING ATTACH. ........................... DIA. 18"

SAWS ON TABLE DIAMETER .......................... 48"

FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........ 10"

RANGE:

TABLE SIZE ................................. 6" x 36"

LONGITUDINAL TABLE TRAVEL ....................... 16"

CROSS MOVEMENT OF TABLE ......................... 10"

TABLE SWIVEL ............................... 180 DEG.

TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ..... 5"

FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .. 2"

TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 90 DEG.

VERT. MOVEMENT OF GRINDING WHEEL SPINDLE .... 10-1/2"

MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ... 13-1/2"

SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.

SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.

SPINDLE SPEEDS:

6" WHEEL, SURFACE SPEED 6,022 FT./MIN. .... 3,834 RPM

3" WHEEL, SURFACE SPEED 5,887 FT./MIN. .... 6,425 RPM

WEIGHT & DIMS.

APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS

APPROXIMATE DIMENSIONS ................ 36" x 38"D x 60"H

MACHINE FEATURES:

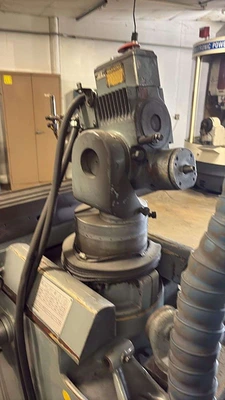

TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE

BALL BEARING ANTI-FRICTION TABLE ROLLING IN

REPLACEABLE HARDENED STEEL V-WAYS

360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH

CAN INCREASE SPECIFIED CROSS RANGE BY 70%

CAST IRON CONSTRUCTION

ONE-SHOT LUBRICATION SYSTEM

2-SPEED SPINDLE, INSTANTLY REVERSIBLE

1 HP 3/60/230-460 VOLT SPINDLE MOTOR

EQUIPPED WITH:

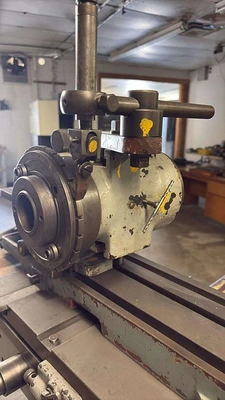

-CINCINNATI-MILACRON WORKHEAD WITH 24 POSITION

  INDEX PLATE, WORKHEAD HAS #5 MT& #50 NST TAPERS

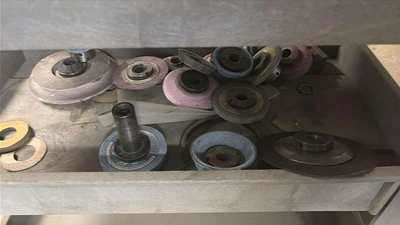

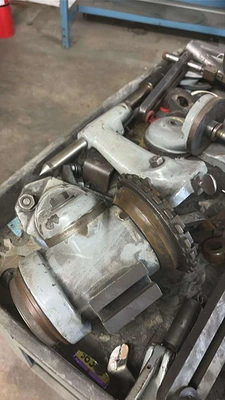

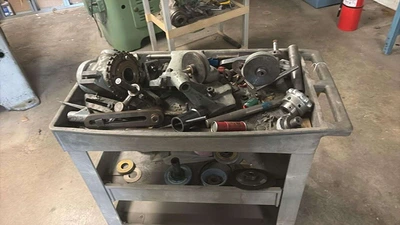

OTHER ACCESSORIES AS SHOWN IN THE PHOTOS

** LOCATED IN HOUSTON, TEXAS **

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
