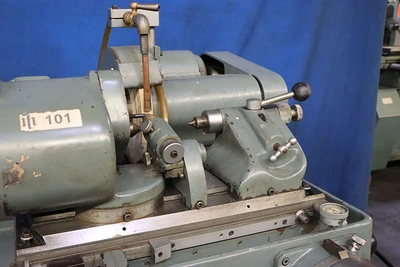

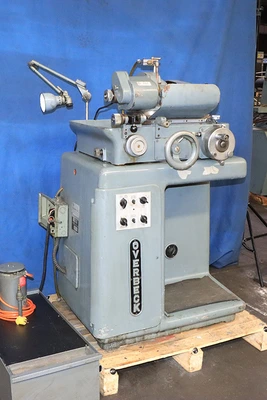

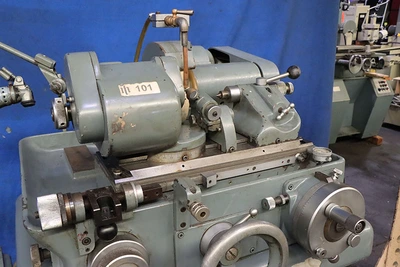

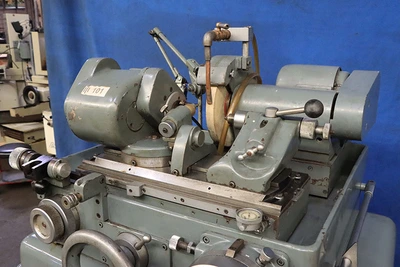

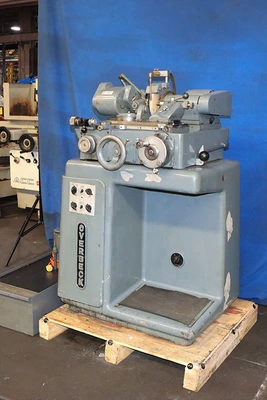

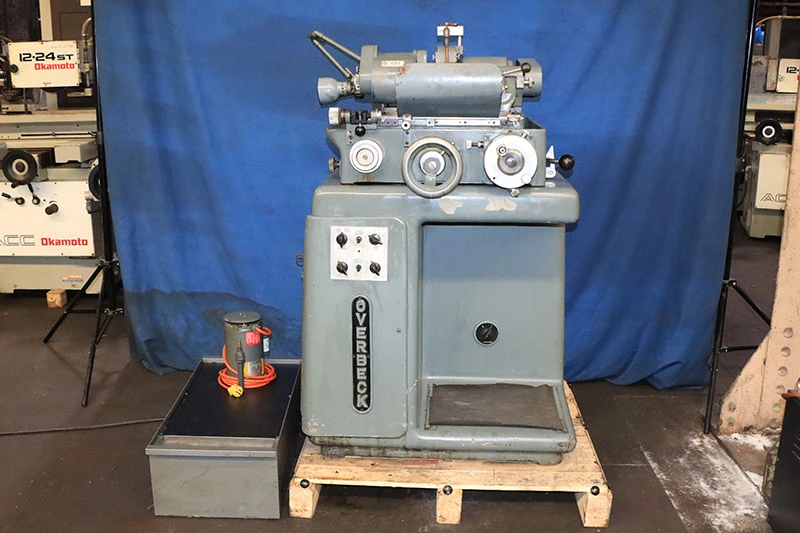

USED 1968 Overbeck ZETTO 20, ENTIRELY ORIGINAL BEAUTY FROM GERMANY!

OVERBECK "ZETTO 20"  HIGH PRECISION

(MADE IN WEST GERMANY)

PLAIN CYLINDRICAL GRINDER

S/N: 1082        NEW: 1968

IDEAL FOR "SMALL PARTS"

CAPACITY:

8" MAX. DISTANCE BETWEEN CENTERS

4.75" MAX. GRINDING LENGTH

3.5" MAX. SWING

8" DIA. GRINDING WHEEL, WITH 1" TO 2" WIDE WIDTHS

4- 5/16" POWER TABLE STROKE

TABLE MOVES ON PRECISION NEEDLE BEARINGS

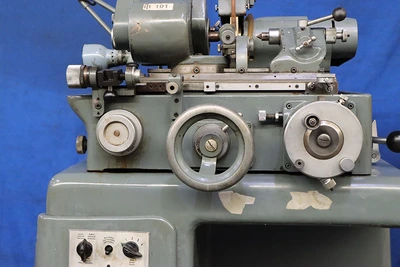

POWER TABLE FEED, MECHANICAL (NO HYDRAULICS), WITH

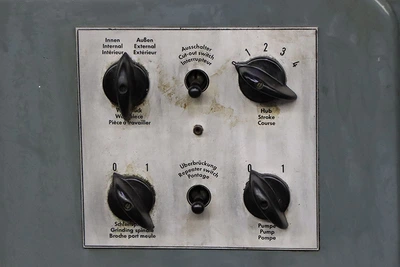

  SELECTOR SWITCH, WITH (4) TABLE SPEEDS OFFERED.

HANDWHEEL FOR MANUAL TABLE TRAVERSE

TABLE STOPS IN CENTER, WITH FINE ADJUSTMENT MECHANISM

  ON THE LEFT SIDE OF THE TABLE

TABLE SWIVELS +/-6°, WITH DIAL INDICATOR

MANUAL INFFED OF THE GRINDING WHEEL

WHEELHEAD HAS A LEVER, PROVIDING RAPID WHEEL STROKE.

  MOVEMENT OF THE GRINDING WHEEL IS SMOOTH & LIGHT.

  WHEELHEAD IS ON VEE & FLAT WAYS, WITH ROLLER

  BEARINGS, MAKING THE ACTION SMOOTH & BUTTERY.

INFEED HANDWHEEL, I DIVS. = .0004".

FINE ADJUSTMENT SCALE IS CALIBRATED TO .0001" DIVS.

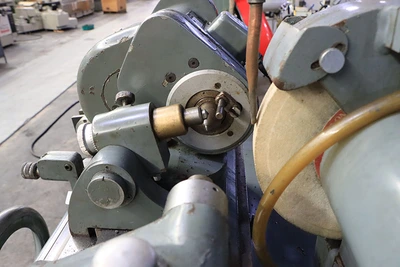

TAPER IN WORKHEAD, #3MT SPINDLE

CENTER IN WORKHEAD IS A "DEAD' TYPE

WORKHEAD CAN ALSO BE USED WITH "LIVE" SPINDLE

WORKHEAD SWIVELS 0 TO 90° TO ONE SIDE

(4) SPEEDS BY STEPPED PULLEY (250/500/750/1000 RPM)

CAST IRON CONSTRUCTION (BEAUTIFULLY MADE)

SWING BACK DIAMOND DRESSER, WITH MICROMETER FINE FEED

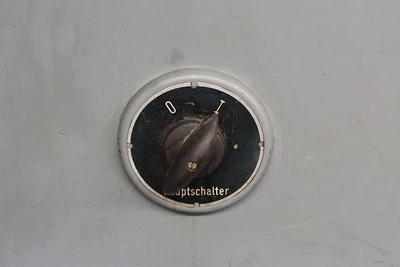

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

APPROX. DIMS.:  34"L-R x 27"F-B x 47"H

APPROX. WEIGHT:  1,540 LBS.

** ORIGINAL PAINT - ORIGINAL APPEARANCE **

** LIKE FINDING A 1968 PORSCHE IN MINT CONDITION **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
