USED BALDOR 2517 X 45MM

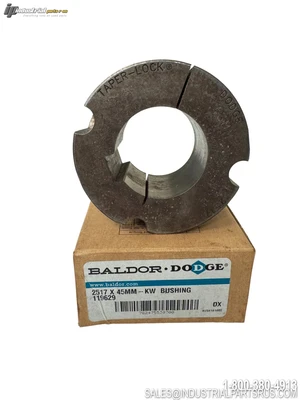

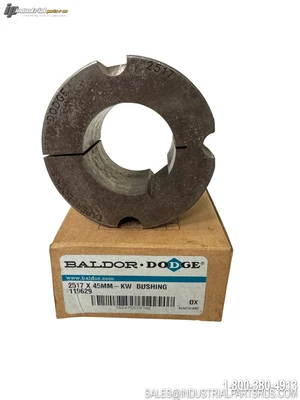

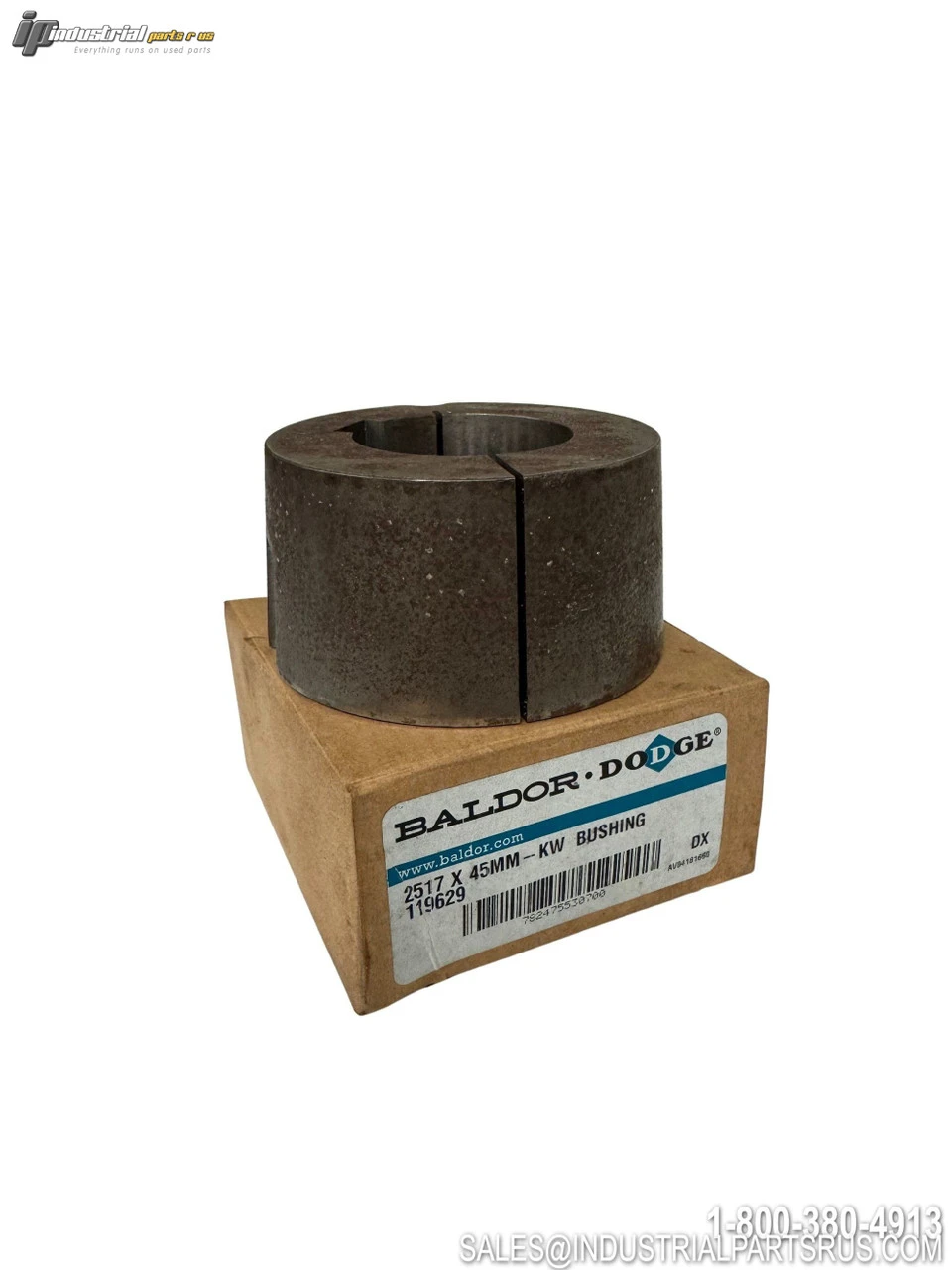

The Baldor Dodge 2517 X 45MM is a Taper Lock Bushing from the Dodge 2517 series, featuring a 45mm metric finished bore with keyway. Designed for use with taper lock style sheaves, sprockets, and pulleys, this bushing employs an 8° self-locking taper for flush, wobble-free mounting with no protruding parts. It is manufactured from sintered steel and is widely used in belt drive, chain drive, and gear applications across industrial power transmission systems.
Specification
Value
Brand
Baldor / Dodge
Model / Part Number
2517 X 45MM
Dodge Catalog Number
119629
Product Type
Taper Lock Bushing
Bushing Series
2517
Bore Diameter
45 mm
Bore Type
Finished / Stock Bore with Keyway
Outside Diameter (Barrel)
3.38 in (85.85 mm)
Hub Outside Diameter (Max)
4.38 in Steel / 4.88 in Class 30 Gray Iron
Overall Length (Length Through Bore)
1-3/4 in (44.45 mm)
Taper Angle
8°
Bolt Circle Diameter
3-1/4 in
Number of Bolt Holes
2
Screw Size
1/2 × 1 in
Keyway Size
14 × 3.8 mm
Torque Capacity
11,600 in-lb
Material
Sintered Steel
Compatible Applications
V-Belt Sheaves, Synchronous Pulleys, Sprockets, Drum/Drive/Tail Pulleys, Gears
We warranty all items for 30 days from date of purchase.
