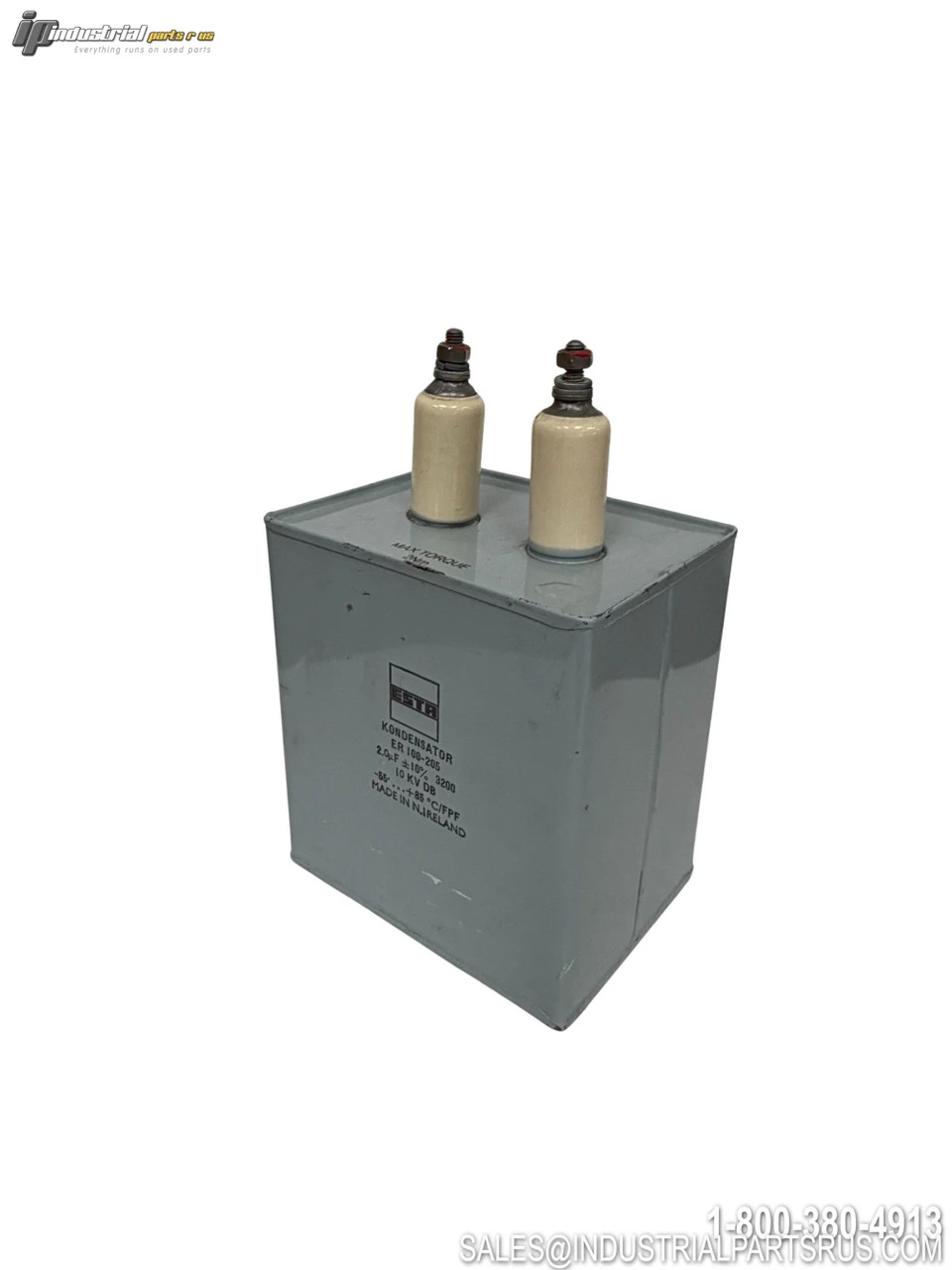

USED ESTA ER 100-205

The Esta ER 100-205 is a high-voltage DC filter capacitor (Kondensator) manufactured by Vishay ESTA, designed specifically for DC filtering applications in power electronics. The ER series is engineered for demanding industrial environments, featuring a robust construction rated at 10,000 VDC and a capacitance of 2.0 mF. These capacitors are used to reduce the AC ripple component of a DC voltage in drives, converters, and high-power industrial equipment.
Specification
Value
Brand
Esta ER (Vishay ESTA)
Model / Part Number
100-205
Type
DC Filter Capacitor (Kondensator)
Capacitance
2.0 mF (2,000 µF)
Rated DC Voltage
10,000 V DC (10 kVDC)
Operating Temperature
-55°C to +85°C
Dimensions (L x W x H)
178 x 152 x 178 mm (approx. 7 x 6 x 7 in)
Weight
Approx. 6 lbs
Dielectric
Polypropylene (MKP), self-healing segmented
Application
DC Filtering, Power Electronics, Industrial Drives, Converters
Series
ER
Manufacturer
Vishay ESTA
We warranty all items for 30 days from date of purchase.
