USED 2019 APEC GM40 5-AXIS
Overview

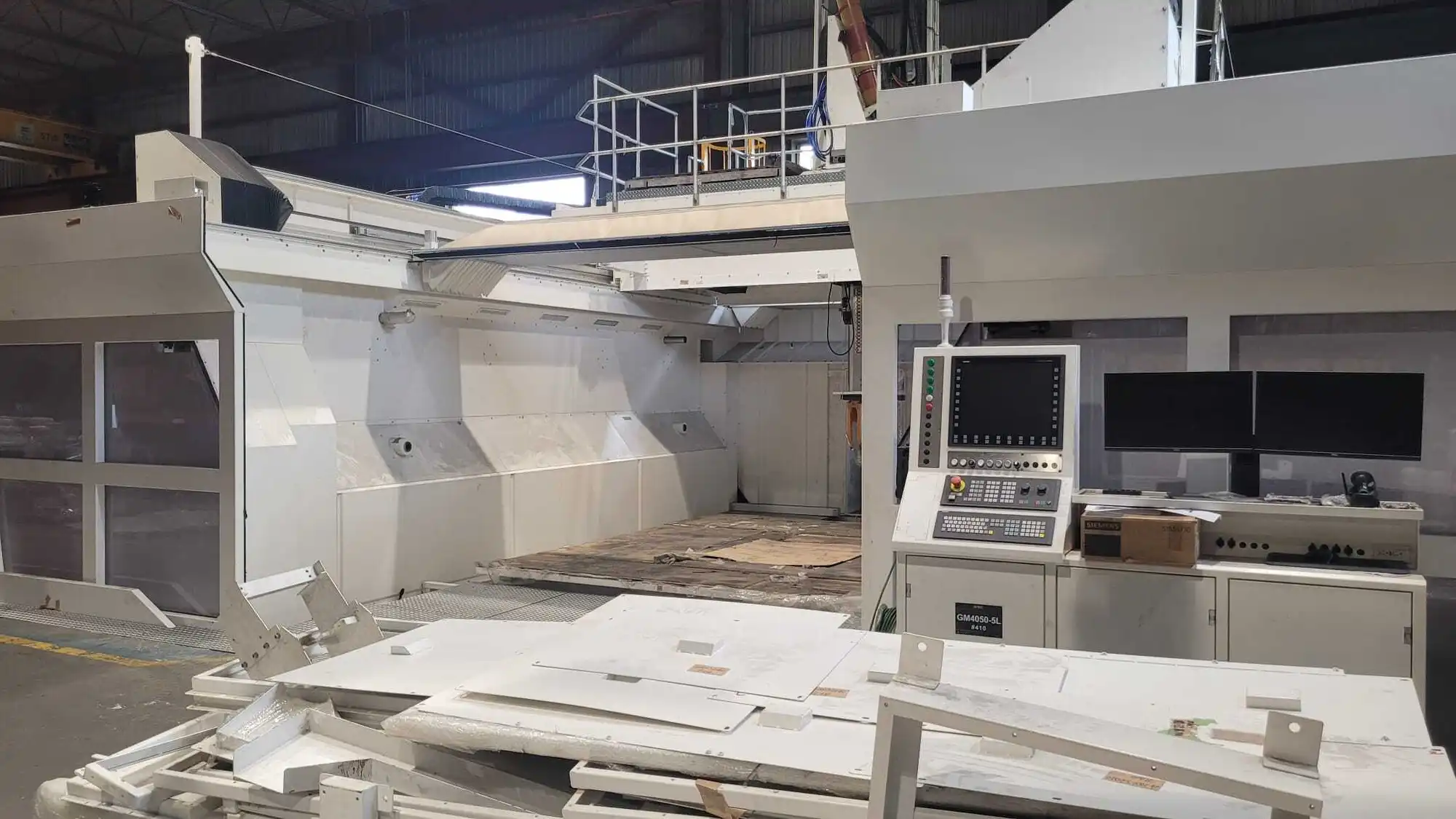

APEC GM4050 High-Speed 5-axis Gantry Type Machining Center (2019)
Specs
APEC GM4050 High-Speed 5-axis Gantry Type Machining Center
X-Axis Travel 4,978 mm / 196.85”
Y-Axis Travel 4,000 mm / 157.48”
Z-Axis Travel 2,000 mm / 78.74”
Axis Drive System High-speed linear motors on X, Y, and Z axes
Rapid Traverse Feedrate Up to 60 m/min
Top Spindle Speed 24,000 RPM (Built-in design with thermal cooling)
Spindle Taper HSK
Spindle Power 54 to HP
2-Axis Swivel Head Rotation
B-axis: ±115° to ±120° / C-axis: ±360°
Clamping Torque 4,000 Nm for rigid positioning
Equipped With
Siemens 840D Solution Line CNC Control, 69” Max. Spindle End To Table, 2-Axis Swivel Head, +/-125 Degree Swivel, 360 Deg. C-Axis Rotation, 24,000 RPM, 54.6 HP, , Full Coolant Enclosure with Sliding Roof Cover
