Used

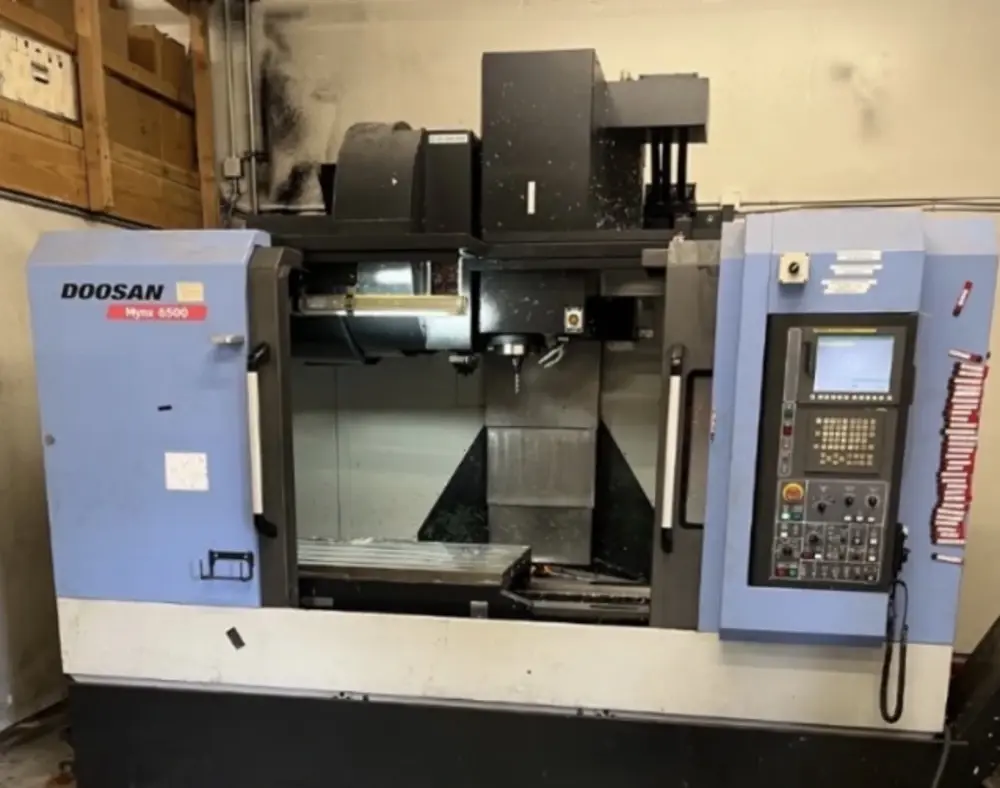

USED 2011 DOOSAN MYNX 6500

Ohio, United States
1,540Listings|425Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center available, featuring a 50" x 26.4" x 24.6" capacity, 21 hp, 8,000 RPM. Equipped with Fanuc i Series, spindle chiller, and chip conveyor. Holds 2,200 lbs. Only 6199 cutting hours.

Specs
X
50"
1,270 mm
Y
26.4"
670.56 mm
Z
24.6"
624.84 mm
Power
21 hp
15.7 kW
RPM
8,000 RPM
8,000 RPM
# ATC
30
30
Taper
CAT 40
CAT 40
Table-W
26.4"
670.56 mm
Table-L
55"
1,397 mm
# Axis
3
3
Control
CNC (Fanuc)
CNC (Fanuc)
Dimensions
132" x 97" x 108"
132" x 97" x 108"
Weight
15500 Lbs
15500 Lbs

Table Size 55" x 26.4"
Table Capacity 2,200 lbs

Equipped With

Fanuc i Series
Coolant Thru Spindle
(2) Chip Augers
400 Pairs Tool Offsets
6199 Cutting Hours
Big-Plus Spindle Taper
Chip Conveyor Included
Doosan Conversational Machining Software
Embedded Ethernet
30 Station Side Mounted Tool Changer
Box Ways
Remote Pulse Generator
Spindle Chiller
