USED JET 1DS-3-20

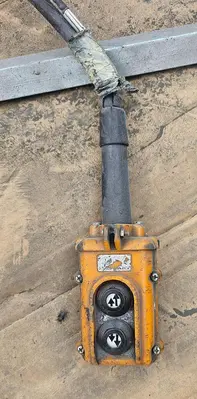

Technical SpecificationsLoad Capacity: 1 Ton (2,000 lbs.) Standard Lift: 20 feet Lifting Speed: 24 Feet Per Minute (FPM) Motor Phase: 3-Phase Motor Voltage: 230V / 460V (Typically pre-wired 460V) Motor Power: 2-1/7 HP Duty Cycle Rating: H4 Duty Cycle (%): 30% (Max 18 minutes on-time per hour / 180 starts per hour) Load Chain Dimensions: 8 mm x 24 mm (Grade 80 black oxide coated) Number of Falls: 1Headroom: 24-7/16 inches Net Weight: 161 lbs. Key FeaturesSlip Clutch Overload Protection: Prevents the hoist from lifting damaging loads above its rated capacity. Reverse Phase Relay: A safety mechanism that protects the 3-phase motor from damage due to incorrect power supply wiring. DC Electro-Magnetic Brake: Industry-proven design that immediately holds and secures the load safely even if power to the unit is completely interrupted. Sealed Gear Train: Maintenance-free gear train utilizing a fully sealed oil bath to eliminate routine upkeep. All-Steel Construction: Enclosed steel plate body with a durable powder coat finish to repel dust, moisture, and shop debris. Control Pendant: NEMA 4X compliant 24V push-button controller equipped with a rugged cable strain relief system
