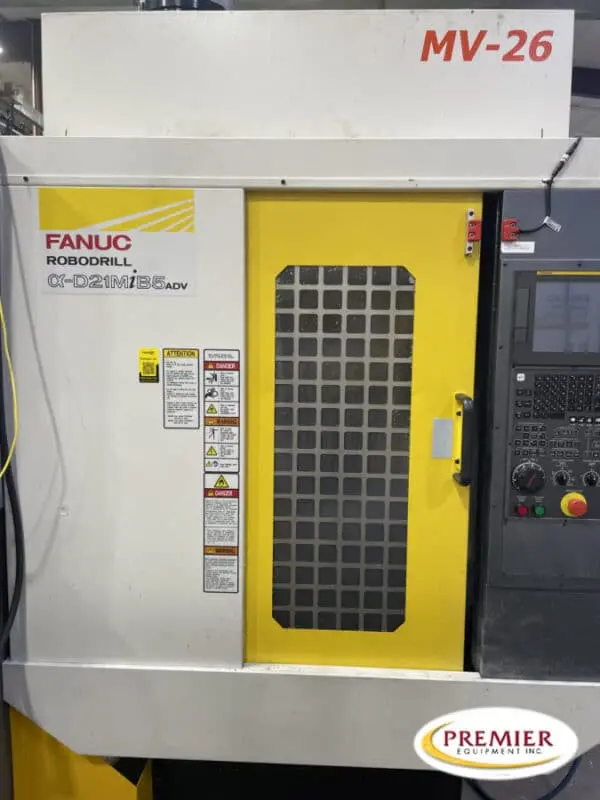

Fanuc Robodrill D21MiB5-ADV with Rotary Table – 2021
Overview
Fanuc Robodrill α-D21MiB5ADV CNC Drill Tap with Rotary Table
Specs
Travel X/Y/Z19.69” x 15.75” x 15.75”
Max. tool length (0–24,000 rpm) 9.84”
Max. tool diameter 3.93”
Table size 25.59” x 15.75”
Max. table load 880 lbs
Max. tool mass (0–24,000 rpm) 8.8 lbs
Distance from spindle nose to table (with HC100) 7.08” – 22.83”
Spindle speed 24,000 RPM
Taper BT30
Rapid traverse in all axes 2125 IPM
Programmable cutting feed 1181 IPM
Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6
Number of tools 21 ATC
Tool change time (2 kg-tool) (cut to cut) s 1.3 sec
Machine Weight4000 lbs
Equipped With
Fanuc Series 31i-Model B5
Chip Covneyor
High Pressure Coolant @ 1000 PSI
Royal FX900 FIltermist
DDR Rotary Table
Tool Taper Wash
Side Auto Door
