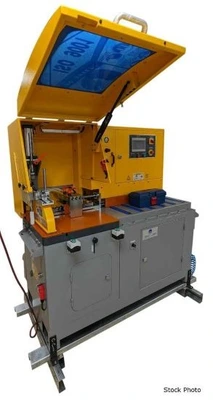

NEW PAT MOONEY PMI-18 DB

PAT MOONEY (NEW) MODEL PMI-18 DB AUTOMATIC
HIGH-PRODUCTION CUTOFF SAW

SAWS ALUMINUM EXTRUSIONS AND OTHER NON-FERROUS
MATERIALS

3200 RPM SAW BLADE SPEED
14" STROKE
7.5 HP SAW MOTOR
500W MATERIAL INDEXING SERVO MOTOR
35.82" SAW WORKTABLE HEIGHT

CUTTING CAPACITY
- 5" ROUND
- 4.72" SQUARE
- 1.57" X 10.5" RECTANGLE
- 4" X 8" RECTANGLE
- 4.72" X 6" RECTANGLE

MACHINE FEATURES
- SAW BLADE FEED
IS DRIVEN BY AN AIR OVER HYDRAULIC SYSTEM THAT ALLOWS FOR AN
ADJUSTABLE FEED RATE AND STABILITY DURING THE CUT. THE SAW BLADE
IS AN UPCUT DESIGN SO THE SAW BLADE TRAVELS FROM UNDER THE WORKTABLE
AND THROUGH THE BOTTOM OF MATERIAL
- 7.5 HP SAW MOTOR
SAW MOTOR ALLOWS FOR MAXIMUM CUTTING FORCE AND CHIP REMOVAL
POWER EXTENDS THE LIFT OF THE SAW BLADE BETWEEN REGRINDS
- SAW BLADE SPEED IS 3200 RPM
- PLC CONTROL
A PLC CONTROLS AND MONITORS THE OPERATION OF THE MACHINE
IN THE AUTOMATIC MODE, THE OPERATOR ENTERS A CUT LENGTH, QUALITY, AND
INCOMING MATERIAL LENGTH. THE MACHINE WILL THE CUT TO THE PROGRAMMED
DIMENSIONS AND MONITORS THE OPERATION
THE MACHINE HAS A SEMI-AUTOMATIC MODE TO CUT REMNANTS INTO USEABLE PARTS
IN THIS THE OPERATOR USES THESHUTTLE VISE AS A STOP
- HMI TOUCH SCREEN
THE MACHINE HAS A 7" HMI TOUCHSCREEN. IT GIVES A VISUAL OF ALL THE MACHINE'S
FUNCTIONS, MANUAL MOVEMENTS, DIAGNOSTICS, PARAMETERS, AND PROGRAMMING MODES.
WHEN PROGRAMMING A CUT JOB THE OPERATOR ENTERS IN THE REQUIRED QUANITIES, CUT
LENGTH, AND INCOMING MATERIAL LENGTH. THE OPERATOR WILL ENTER A CUT JOB, LOAD
MATERIAL, AND PUSH THE CYCLE START BUTTONS. THEN THE MACHINE WILL AUTOMATICALLY
CUT TO THE ENTERED DIMENSIONS WITHOUT OPERATOR INTERVENTION.
- MATERIAL INDEX SYSTEM
THE MATERIAL INDEX SYSTEM CONSISTS OF A SERVO MOTOR AND ENCODER, SERVO
DRIVE, CYLINDER, AND GRIPPER VISE. THE GRIPPER VISE TRAVELS ON A HARDENED
PRECISION LINEAR RAIL
THE GRIPPER VISE HAS A HORIZONTAL CLAMP.
THE STOKE OF THE SHUTTLE VISE IS 14". THE MACHNE WILL DO MULTIPLE STROKES TO
COMPLETE CUTS OVER 14". THE MINIMUM CUT LENGTH IS 0.314" HOWEVER WITH
MODIFICATIONS THE MACHINE CAN HANDLE SHORTERCUT LENGTHS, THE
MACHINE HAS A PROGRAMMABLE TRIM CUT LENGTH
- CLAMPING SYSTEM
THE MACHINE'S CLAMPING SYSTEM IS PNEUMATIC. THE PNEUMATIC SYSTEM ALLOWS
FOR ADJUSTABLE CLAMPING PRESSURE TO PREVENT DISTORTION OF THIN WALL PROFILES,
WHICH GIVES THE MACHINE THE ABILITY TO PROCESS A WIDE RANGE OF
MATERIAL THICKNESS.
THE MACHINE'S SAW VISE HAS HORIZONTAL AND VERTICAL CLAMPS. THE CARRIAGE
VISE HAS HORIZONTAL CLAMPING. THE VERTICAL CLAMP AT THE SAW HEAD COVERS
THE ENTIRE CUTTING WIDTH CAPACITY OF THE MACHINE. THIS HELPS CLAMP IRREGULARLY
SHAPED PROFILES WITHOUT ANY MOTIFICATIONS.
THE STROKE OF THE CLAMPS CAN BE SET TO THE PART SIZE FOR MORE EFFICIENCY AND
FASTER CYCLE TIME.
- PRECISE SAW BLADE LUBRICATION: MICRO-DRIP BLADE LUBRICATION SYSTEM
THE SAW BLADE LUBRICATION IS PRECISION METERED SYSTEM SUPPLIED VIA AIR TO
THE CUTTING EDGE OF THE SAW BLADE. THE MIST SYSTEMS SPRAYS A SMALL AMOUNT
OF CUTTING FLUID ONTO THE SAW BLADE, SO CUT PARTS COME OF THE MACHINE NEAR
DRY. THIS IS MUCH CLEANER COMPARED TO A MACHINE THAT USEDS A FLOOD COOLANT
SYSTEM
- MACHINE SAFETY ENCLOSURE
THE MACHINE SAFETY ENCLSOSURE COVERS THE AREA WITH SHUTTLE VISE AND THE SAW
TABLE AREA. IF THE ENCLOSURE IS OPEN, THE MACHINE WILL NOT OPERATE.
- SAW BLADE ENCLOSURE
AN ENCLOSURE HOUSES THE SAW BLADE. THE ENCLOSURE HAS A LOCKING SAFETY SWITCH, SO IT
MUST REMAIN CLOSED WHILE THE MACHINE IS IN OPERATION. IF THE ENSLOSURE IS OPEN
THE MACHINE WILL NOT OPERATE. THE UPCUT DESIGN LIMITS THE AMOUNT OF SAW BLADE
EXPOSURE DURING THE CUT. WHEN THE MACHINE IS NOT IN OPERATION, THE BLADE IS
COMPLETELY ENCLOSED BELOW THE WORKTABLE.

STANDARD FEATURES
- 120T SAW BLADE
- OPERATORS MANUAL
- TOOL KIT
- 3.28' OUTFEED SOLID TOP TABLE WITH PLASTIC ROLLERS

OPTION AVAILABLE - PRICE ON REQUEST
- EXTRA 120T KANEFUSA SAW BLADE
- CHIP COLLECTOR SYSTEM - 3 HP
- 10' PLASTIC ROLLER CONVEYOR (FREE STANDING)
