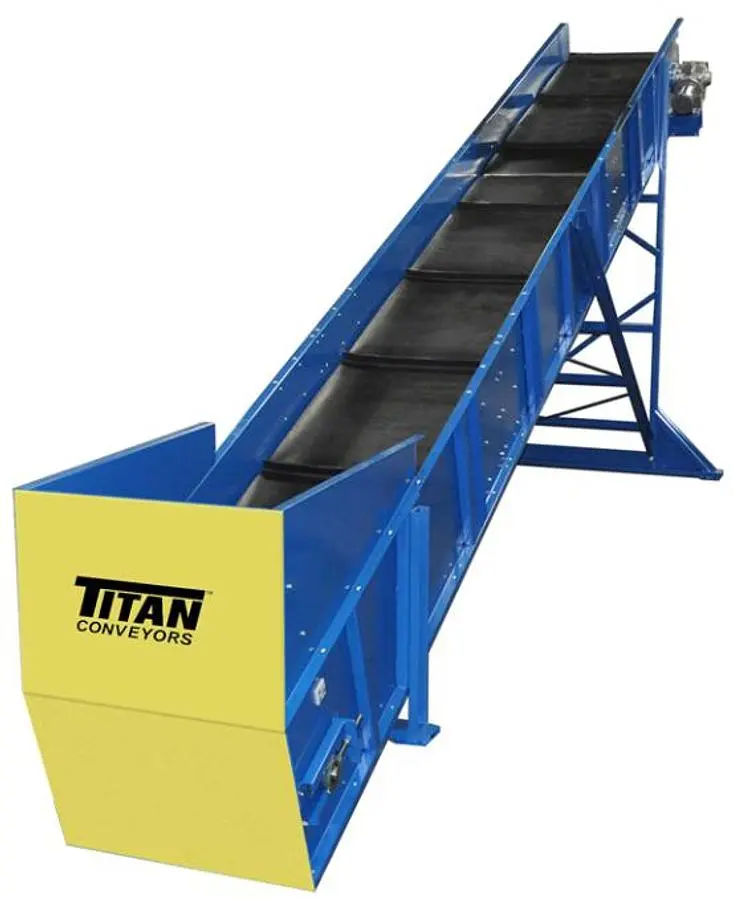

NEW 2026 TITAN CONVEYORS SLIDER-BED INFEED CONVEYOR 4815
Overview
The 2026 Titan Conveyors Slider-Bed Infeed Model 308 is designed for high efficiency in recycling, baling, and shredding operations. It features a 48-inch wide, 15-foot long black PVC belt with 2-inch high cleats spaced 36 inches apart, operating at a speed of 30 feet per minute. This model is powered by a 1 HP motor compatible with 240/480 V three-phase systems and includes a NORD 60:1 reducer, ensuring robust and reliable performance.
Constructed with a formed #12 gauge steel frame, the conveyor is equipped with regreaseable bearings and 12-inch high siderails for enhanced durability and containment. The adjustable support system offers flexibility, with a 24-inch top of belt at the infeed and a 90-inch clear at the discharge. The feed hopper is designed for easy loading with a 44-inch height from the floor to the top.
Safety features include a non-reversing starter with an E-stop mounted near the starter for emergency shut-off. The conveyor also comes with a one-year factory warranty covering parts and labor, ensuring dependable service in demanding industrial environments.
Specs
Conveyor Belt Width: 48"
Conveyor Length: 15'
Belting: Black PVC #120 W/ 2" High Cleats on 36" Centers
Conveyor Speed: 30 FPM
Drive Location: Side Mount Drive RH
Motor Size: 1HP 240/480 Volt Inverter Duty 1800RPM 56C
Electrical: Three Phase 240 / 480 volts
Reducer: 60:1, NORD REDUCER
DRIVE SPROCKET: 50B DRIVEN SPROCKET
Head Shaft: 8" Diameter x 48" FL, CFRL, Drive
Tail Shaft: 4" Diameter x 48" FL, CFRL, Tail
Frame Thickness: Formed #12 Gauge
Bearings: Regreaseable
Skirting: 12" High Siderails, Full Length - Both Sides
Conveyor Supports: Three Pair of Supports for 24" Top of Belt at the Infeed and 90" Clear at the Discharge Knee Braces Included
Additional Features: Hopper at the Infeed for Loading, 44" Top of Hopper to the Floor
CONTROLS WIRING: Wiring Required
Safety Features: Starter Mounted Back from the Drive, Approximately 60" High from the Floor, Wired to the Motor. E-Stop Mounted Near Starter and Wired.
BRT Classification: Factory New
