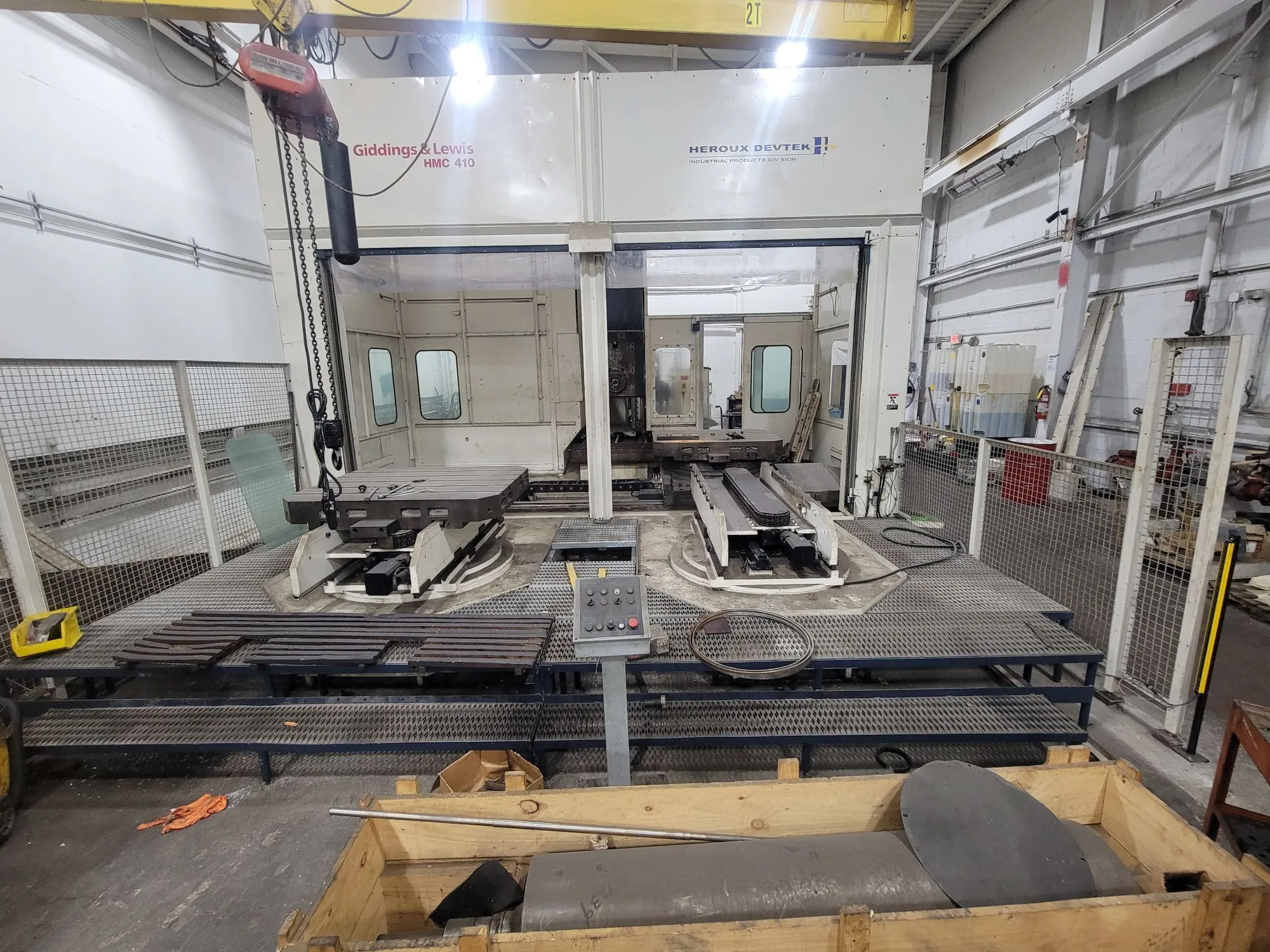

USED GIDDINGS & LEWIS HMC-410
Overview
Huge HMC Pallet changer, 60 ATC, Siemens control, New "Z" linear ways under power
Specs
SPECIFICATIONS:
X-Axis, Cross Travel of Pallet 3300 MM
Y-Axis, Vertical Head Travel 2100 MM
Z-Axis, Column Infeed 2000 MM
B-Axis, Pallet Rotation 360,000
Spindle Taper ANSI B5.50
Pallet Size 1600 MM x 1250 MM
Number of Pallets 2
Maximum Swing of In Load Area 3000 MM
Pallet Weight Capacity 6999 KG
Feed Rates All Axes 16002 MM/MIN
Rapid Traverse All Axes 32004 MM/MIN
Spindle Speeds, Infinitely Variable 30-6000 RPM
Maximum Rotatable Part Size 3000 MM
Equipped With:
Siemens, Sinumerik 4-Axis CNC Control
60 Station Automatic Tool Changer
Pallet Shuttle Changer
Thru-Spindle Coolant, 70 Bar,(1015 PSI)
Paper Filtration
Linear Scales All Axis
Renishaw Part Probe
Chip Conveyer
37 KW /45 KW AC Spindle Motor
Specifications are Approximate, buyers are strongly advised to check Specifications
Equipped With
2 pallets, Full guarding, Siemens control, Temperature controlled electronic cabinet, New linear bearings in "Z" onder column.
