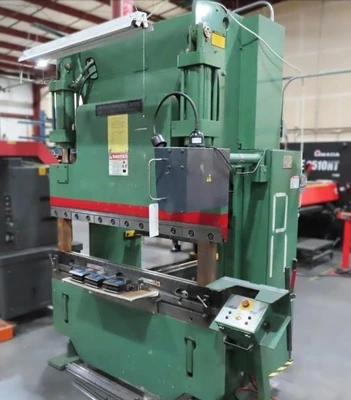

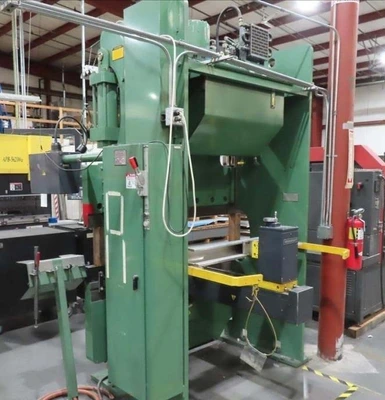

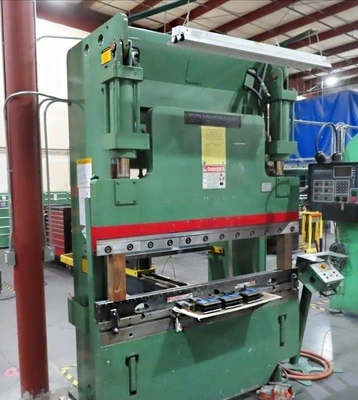

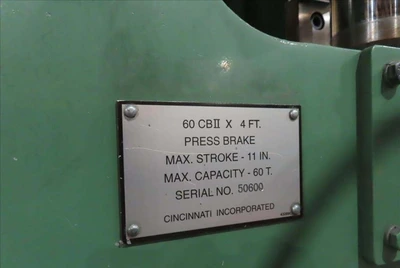

USED Cincinnati 60CB11

Forming Capacity 60 Tons
Overall Length 48 in (1,220 mm)
Distance Between Housings Approximately 40 in (1,016 mm)
Throat Depth 8 in (203 mm)
Maximum Open Height 17–18 in
Ram Stroke 11 in
Approach Speed 100–150 ipm
Press Speed 15–25 ipm
Return Speed 100–150 ipm
Main Motor 7.5 HP
Hydraulic Pressure Approximately 2,500–3,000 psi
Oil Reservoir Approximately 35–50 gal
Machine Weight Approximately 7,500–9,000 lb (3,400–4,100 kg)
Hydraulic dual-cylinder design
Cincinnati CBII precision ram guidance
CNC-ready hydraulic system

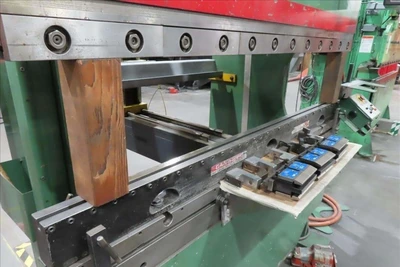

American-style press brake tooling
Mechanical ram stop adjustment
Adjustable hydraulic pressure

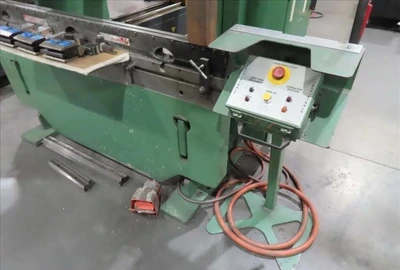

Foot pedal operation

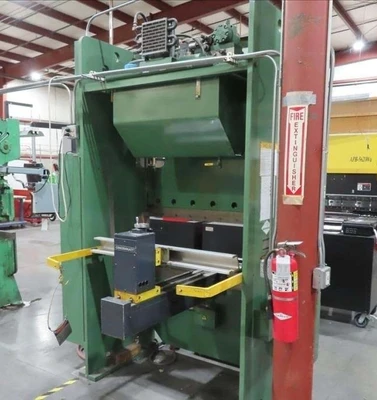

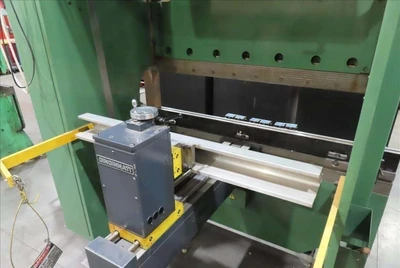

Electric backgauge (if equipped)
Precision-ground bed and ram
Adjustable ram parallelism
