Used

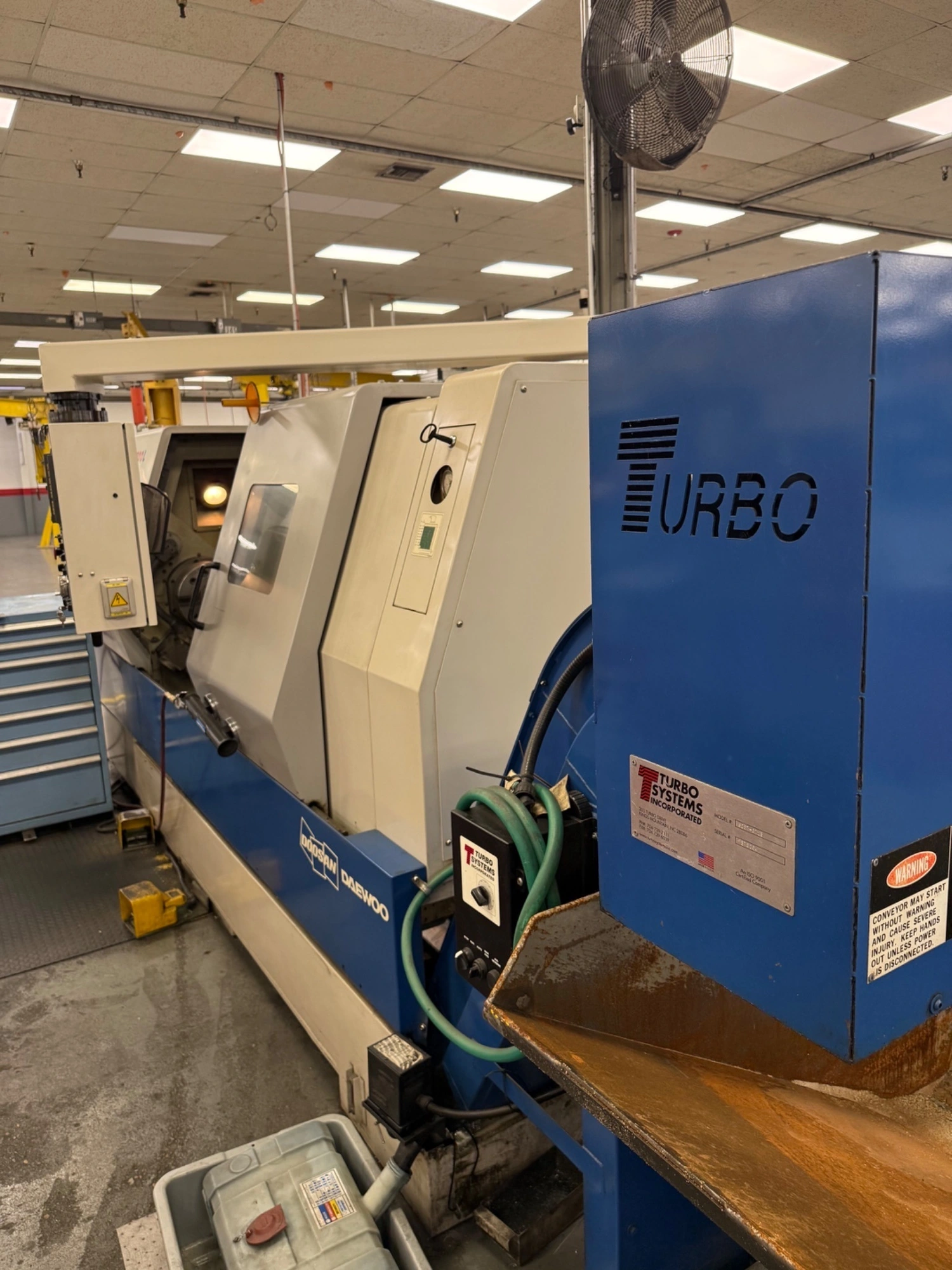

USED 2006 DOOSAN PUMA 300LC
Illinois, United States
Overview
Specs
Swing Over Bed
23.2"
589.28 mm
Machining Length
50.6"
1,285.2 mm
Distance Between Centers
50.6"
1,285.2 mm
Turning Diameter, Shaft Diameter
15.7"
398.78 mm
Chuck Size 1
12"
304.8 mm
Spindle Nose 1
A2-11
A2-11
Spindle Bore Diameter 1
4.53"
115.06 mm
Spindle Bar Capacity 1
4.05"
102.87 mm
Spindle Speeds 1
2,800 RPM
2,800 RPM
Spindle Horsepower 1
35 hp
26.1 kW
X1 - Axis Travel
11.1"
281.94 mm
Z1 - Axis Travel
52.1"
1,323.3 mm
Rapid Traverse Rate - X1
630 in/min.
266.7 mm/sec.
Rapid Traverse Rate - Z1
945 in/min.
400.1 mm/sec.
Gear Ranges
2
2
Turret Configuration 1
10
10
Tailstock Quill Diameter
3.9"
99.06 mm
Tailstock Quill Travel
3.9"
99.06 mm
Programmable Tailstock
YES
YES
Tailstock Travel
50.1"
1,272.5 mm
# Axis
2
2
Bar Capacity
4"
101.6 mm
Tailstock
'Yes'
'Yes'
Live Tooling
'No'
'No'
Sub Spindle
'No'
'No'
Weight
14580
14580
Equipped With
FANUC 21ITB CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
