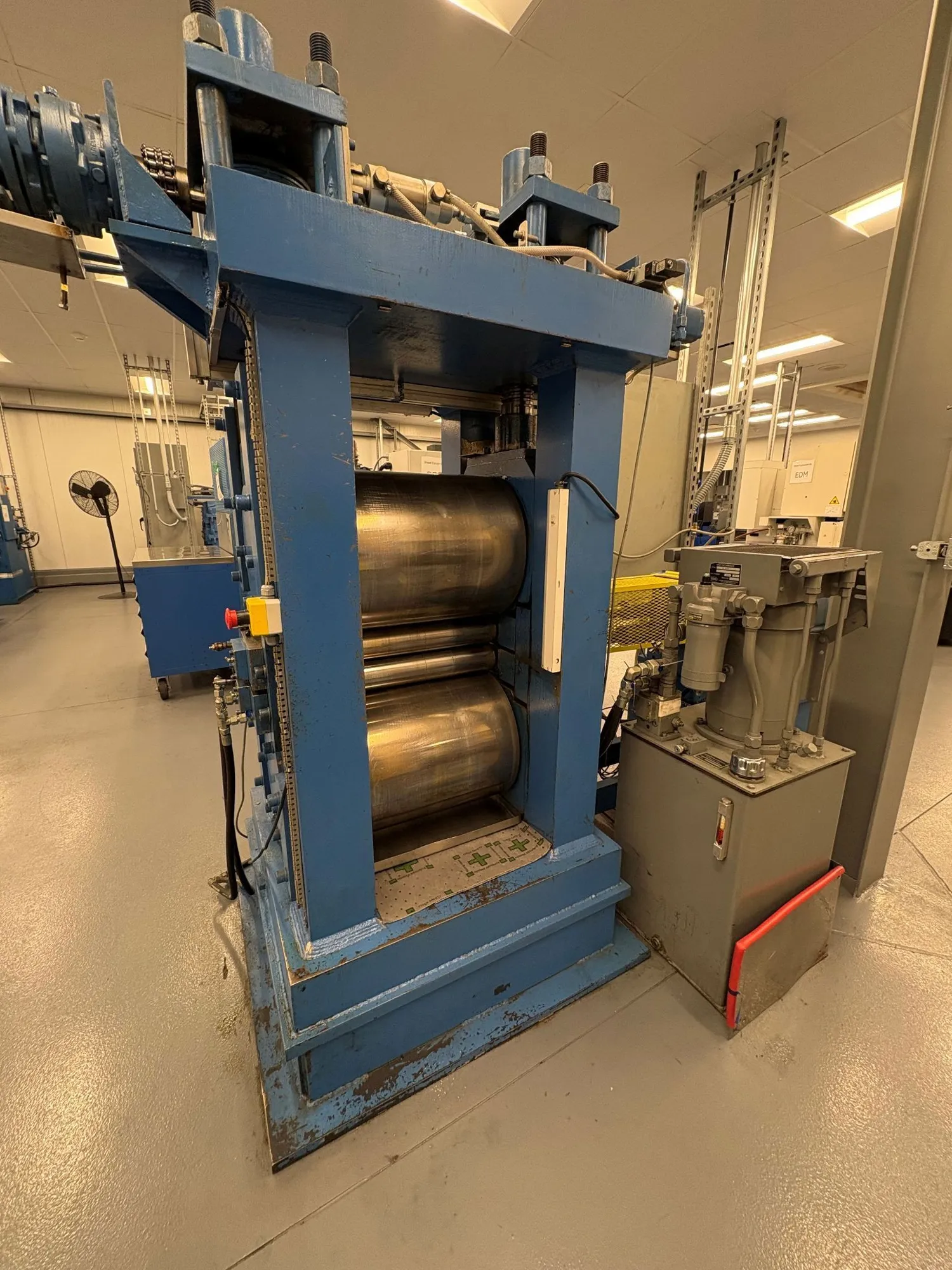

USED CAUFFIEL 3.75" X 16.5" X 19.6" 4 HI REVERSING MILL (14662)

3-3/4" X 16.5" X 19.6" CAUFFIEL 4HI REVERSING MILL
STOCK # 14662

MANUFACTURER: CAUFFIEL MACHINERY CO. (USA)
YEAR OF MANUFACTURE: 2002
WORK ROLL SIZE:
-DIAMETER: 3-3/4" (95MM)
-ROLL FACE WIDTH: 19.6" (500MM)
BACKUP ROLL SIZE:
-DIAMETER: 16.5" (419MM)
-ROLL FACE WIDTH: 19.6" (500MM)
TYPE OF ROLL BEARINGS: ROLLER
WORK ROLL DRIVEN

MILL STAND CROSS SECTION: 6" (152MM) X 6" (152MM)
WINDOW WIDTH: 19" (482MM)
NO UNCOILER OR RECOILER. PREVIOUSLY USED AS A SHEET MILL
SCREWDOWNS: HYDRAULIC MOTORS ACTUATE SCREW JACKS

DRIVE MOTOR: 50 HP, 230/460 VOLTS, 118/59 AMPS, 3 PH., 60 HZ.
-MOTOR MANUFACTURER: SEW-EURODRIVE, INC. USA
-TYPE: INVERTER VECTOR DRIVE
-SPEED RANGE: 300-1800 RPM/10-60HZ
GEAR BOX
-MANUFACTURER: SEW-EURODRIVE, INC. USA
-INCOMING RPM: 300-1800 RPM
-OUTGOING RPM: 16-90 RPM
-TORQUE: 35935 LB-IN
-RATIO: 20.07
-SERVICE FACTOR: 1.1
MILL IS INSTALLED IN USA
INCLUDES FOUR SETS OF SPARE WORK ROLLS
FLOOR SPACE OF MILL: 10 FT. 8"(3.25M) X 3 FT. (914MM)
HEIGHT OF ELECTRICAL CABINET: 8 FT (2.44M)

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
