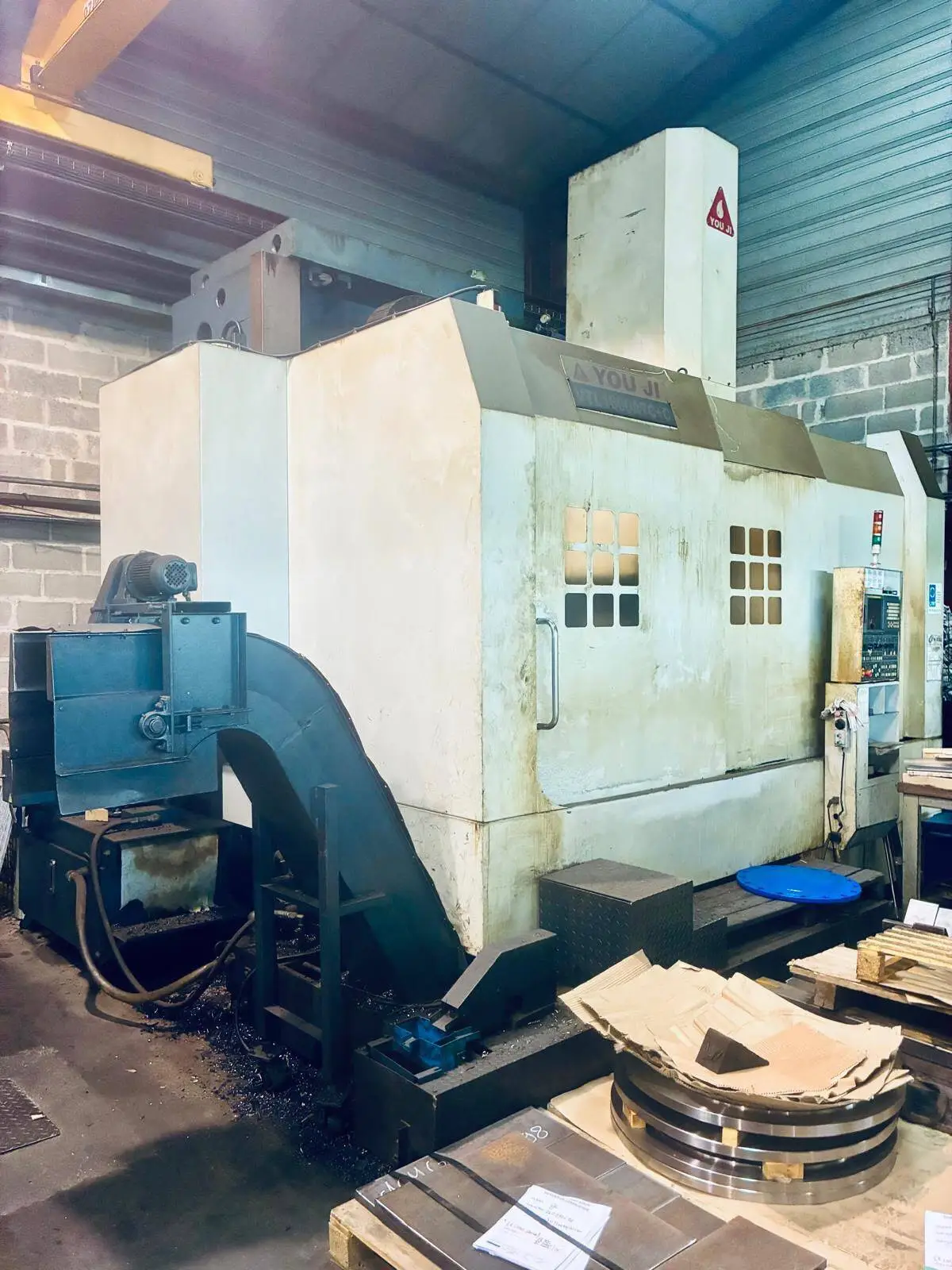

USED 2008 YOU JI 1600ATC

YOU JI VTL-1600ATC+C CNC VERTICAL TURNING LATHE

S/N 1VTL160TC00303 Year: 2008

The YOU JI 1600 ATC VTL with C-axis are heavy-duty CNC machines engineered to process large, complex components. They offer advanced milling, drilling, & tapping capabilities in a single setup, vastly reducing the need for secondary operations & multiple machines.

STANDARD SPECIFICATIONS
Table diameter……………………………………………. 62.99”
Maximum turning diameter…………………………….… 78”
Maximum turning height…………………………………. 47.24”
Maximum table load……………………………………… 17,600 lbs.
Maximum table speed…………………………………….. 250 RPM
Spindle taper………………………………………………. BT50
Tool indexing time………………………………………… 40 seconds
Maximum tool weight…………………………………….. 110 lbs.
Rapid feeds………………………………………………… 78.74 IPM
Accuracy…………………………………………………… +/- 0.0002”

EQUIPPED WITH
Fanuc 18iT CNC Control.
16-ATC Automatic tool changer.
C-Axis milling, drilling & tapping.
Chip conveyor.
Coolant thru spindle (about 190 PSI).
Approximate weight………………………………………. 55,000 lbs.

GENERAL PRODUCT LINE CHARACTERISTICS
• YOU JI’s VTL series covers single-column & double column (twin column) vertical lathes, typically in table diameters ranging roughly from 800mm up to 3000mm+ depending on the model.
• Models with C-axis add rotary positioning/indexing on the table spindle, which lets the machine do live milling, drilling, & off-center machining in addition to standard turning-essentially turning the VTL into a mill-turn center.
• C-axis variants are usually paired with a driven tool turret or an auxiliary milling head, & often include Y-axis capability on the higher-end models for full mill-turn work.
• Typical applications: large flanges, gears, pump housings, wheel hubs, hydraulic cylinders – parts too large or heavy for a horizontal lathe but needing secondary milling / drilling operations without a second setup.

Specifications are deemed accurate, however, subject to verification or prior sale.
