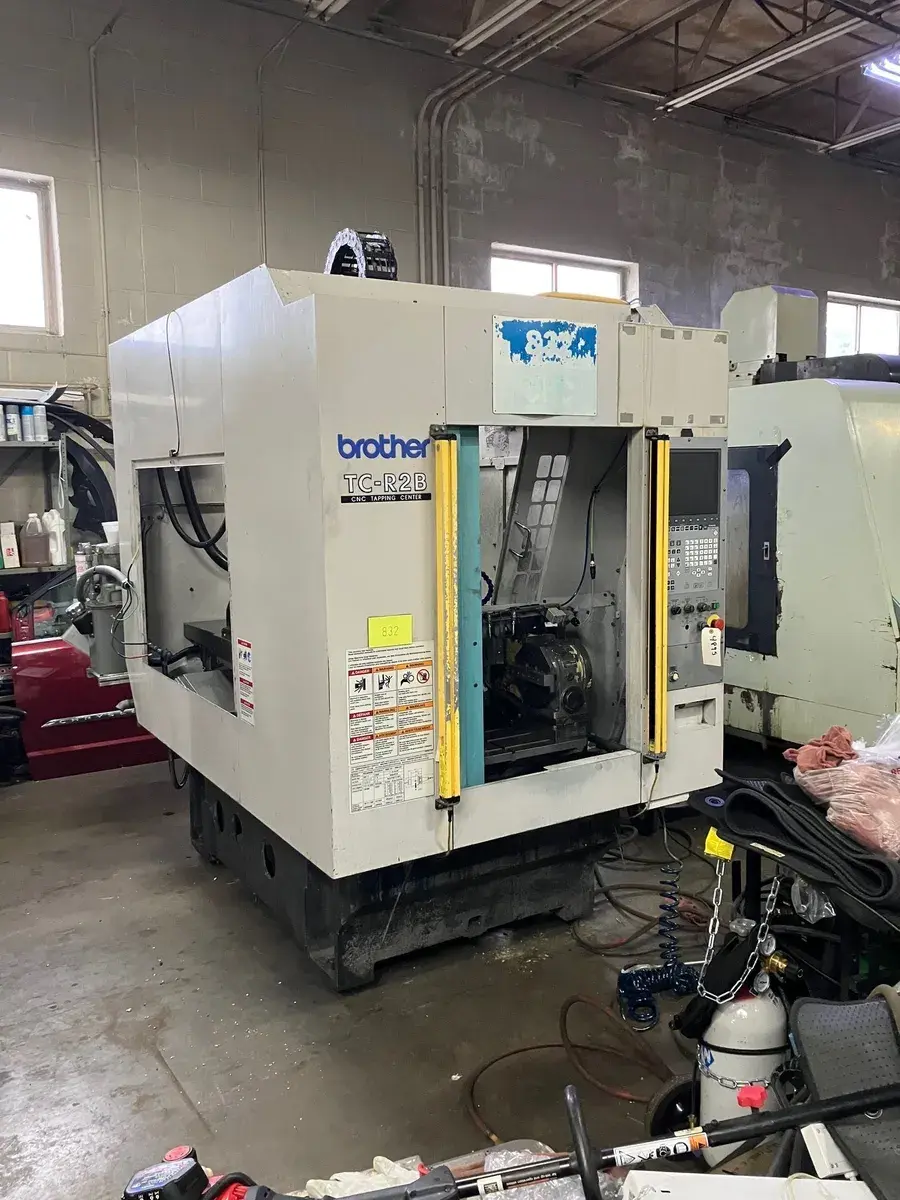

USED 2010 BROTHER TC-R2B

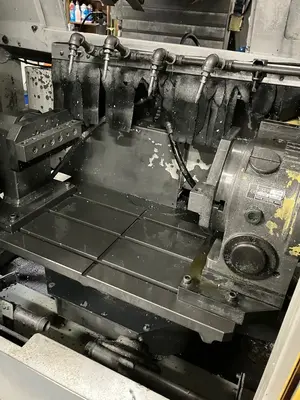

Table Size: 23.6" x 16.5" (each side)
Table Capacity: 256 lbs (one side)
Table Position Time: 2.9 S/180 deg.
X-Axis Travel: 16.5"
Y-Axis Travel: 12.8"
Z-Axis Travel: 12"
X-Axis Rapid Feedrate: 1969 ipm
Y-Axis Rapid Feedrate: 1969 ipm
Z-Axis Rapid Feedrate: 1969 ipm
Cutting Rate: 394 (X, Y) 787 (Z)
Spindle Speed: 10,000 IPM
Spindle Taper: 30
Main Motor: 15 HP
Distance from table top surface to spindle and face
Table work area 200-505mm 8”-20”
Work area size 600 x 300 23.6 x 11.8”
Max. load weight (uniform load) 120 kg.
Spinlde spee (min) 10-10,000
Spinlde speed when tapping (min) 6,000 Max.
Spindle taper hole 7/24 Taper No.30
Feed Rate
Rapid traverse rate (m/min) 50x50x50 m/min
Cutting feed rate (m/min) 1-10,000 mm/min
Z Axis 1-20,000 RPM

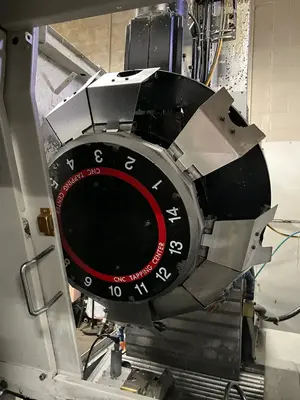

ATC
Tool shank type MAS.BT30
Pull stud type MAS.P30T-2
Tool storeage capacity (pcs) 14
Max. tool length 200mm
Distance from taper gauge/max. diameter 30-150/D80 mm
160-200/D40 MM
Max. Tool weight (total weight 25) 3.0 kg.
Tool selection method Randaom short cut
Tool change time
Tool to tool .09
Chip to chip 1.7
Motor
Spindle motor (continuous for 30 min.) 10.1/6,7
Feed axis motor 1.0 kw xy 1-5 kw z
(CONT.)
Machine Dimensions
Height 2,588mm
Installation are 1,617 x 2,658 mm
(when control box is open) 1,456 x 2,644 mm
Weight (including box and splash guard) 2600 kg
