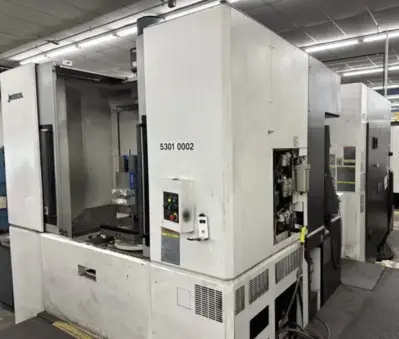

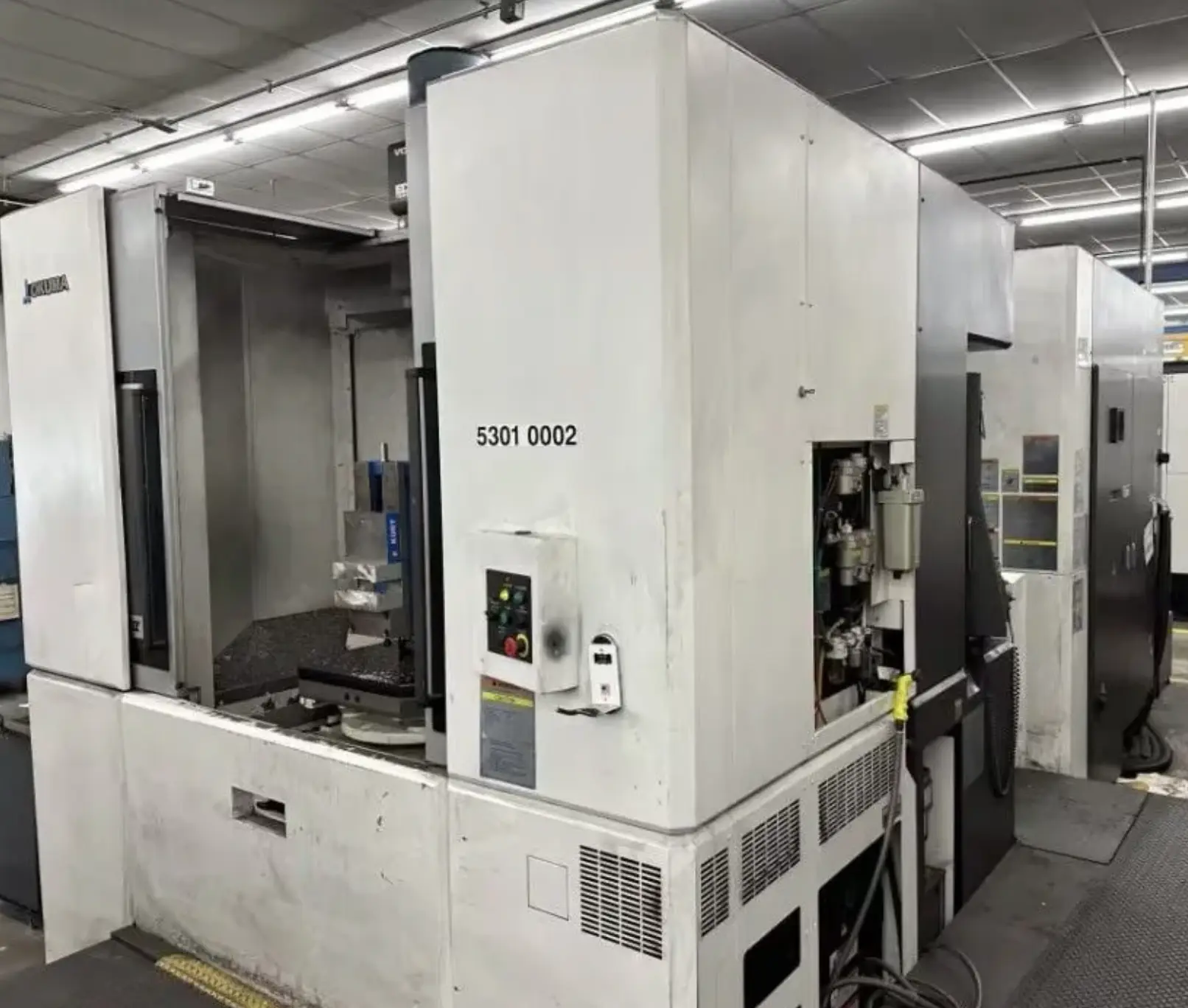

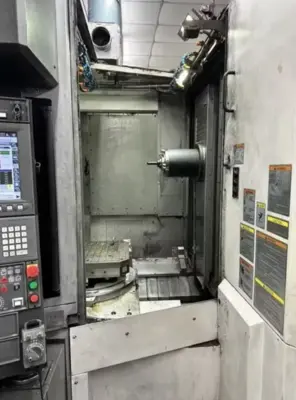

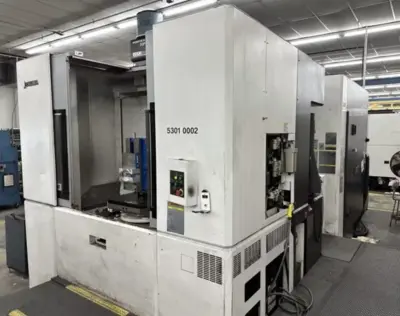

USED 2018 OKUMA MA-600HII

Capacity & Travels
X-Axis Travel: 39.37" (1,000 mm)
Y-Axis Travel: 35.43" (900 mm)
Z-Axis Travel: 39.37" (1,000 mm)
Max Machining Volume: 39.37" x 35.43" x 39.37" (1,000 x 900 x 1,000 mm)
Max Workpiece Size: 41.34" diameter x 47.24" height (1,050 x 1,200 mm)
Max Workpiece Weight: 2,645 lbs (1,200 kg)

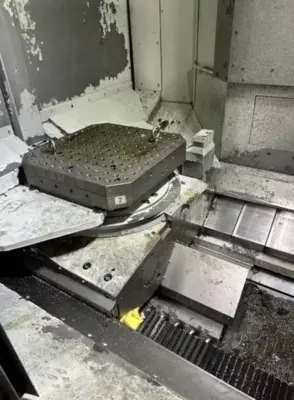

Pallet System
Pallet Size: 24.80" x 24.80" (630 x 630 mm)
Table Indexing: 1-degree (or 360,000 positions with full 4th-axis rotary table)
Pallet Changer: 2-pallet rotary shuttle (APC)

Spindle
Spindle Taper: CAT50 / SK-50 Big-Plus
Spindle Speed: 50 – 6,000 RPM
Spindle Motor: 40/30 HP (30/22 kW)
Spindle Torque: 606 Nm

Tooling & Performance

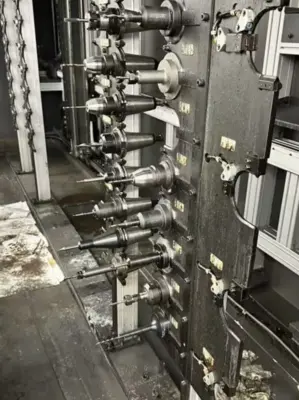

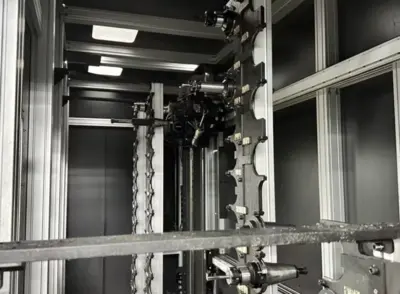

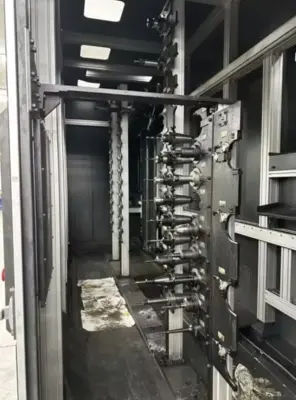

Tool Capacity: 110 tools
Max Tool Weight: 55 lbs (25 kg)
Chip-to-Chip Time: ~4.4 seconds
Rapid Traverse (X, Y, Z): 2,362 ipm (60 m/min)

Footprint & Weight
Approximate Weight: ~52,900 to 55,000 lbs (24,000 to 25,000 kg)
Approximate Dimensions: 182" L x 130" W x 118" H (dependent on ATC and chip conveyor configuration)
