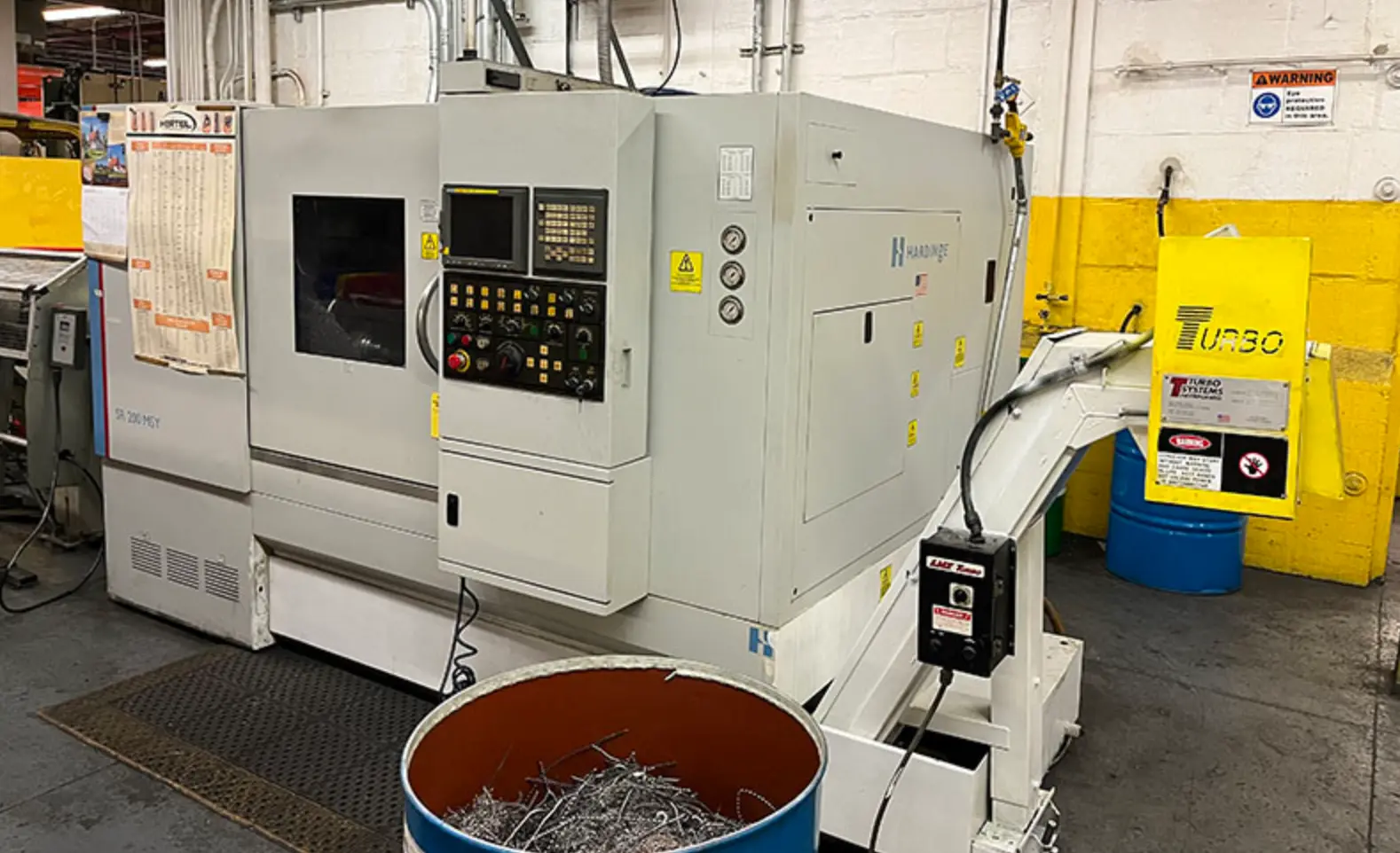

USED 2008 HARDINGE SR-200MSY
Overview
Used CNC Lathe, equipped with FANUC "i" Series Control, features 20.44" swing, 12.28" max turning diameter, and 17.2" turning length. Includes tool setter, hydraulic collet chuck, and LNS barfeed, 30 HP.
Specs
SWING DIAMETER OVER WAY COVER ....... 20.44"
TURNING DIAMETER MAX ................ 12.28"
MAX. TURNING LENGTH ................. 17.2"
X-AXIS TRAVEL ....................... 7.45"
Z-AXIS TRAVEL ....................... 21.54"
Y-AXIS TRAVEL ....................... 3.377"
SPINDLE NOSE ........................ A2-6
SPINDLE THROUGH-HOLE ................ 3.15"
BAR CAPACITY ........................ 2.5"
SPINDLE SPEED RANGE ................. 45-4500 RPM
POWER RATING AT BASE SPEED .......... 30 HP
RAPID TRAVERSE X/Z .................. 1100/1500 IPM
TURRET TYPE ......................... 12 STATION VDI 30
ROTARY TOOL MOTOR ................... 5HP
ROTARY TOOL SPEED ................... 8000 RPM
SUBSPINDLE NOSE ..................... A2-5, 16C
ROUND 16C THROUGH CAPACITY .......... 1.625"
SPINDLE SPEED RANGE ................. 60 TO 6000 RPM
POWER RATING AT BASE SPEED .......... 10 HP
SUBSPINDLE TRAVEL ................... 17.90"
APPROX. MACHINE LENGTH W/CONVEYOR ... 165"
APPROX. WEIGHT ...................... 15,500 LBS.
Equipped With
- FANUC "i" SERIES SR CNC CONTROL
- TOOL SETTER
- PROGRAMMABLE RESOLUTION - .00010"
- HYDRAULIC COLLET CHUCK ON MAINSPINDLE
- 16C COLLET SUBSPINDLE
- FULL C-AXIS ON BOTH MAIN AND SUBSPINDLES
- Y-AXIS

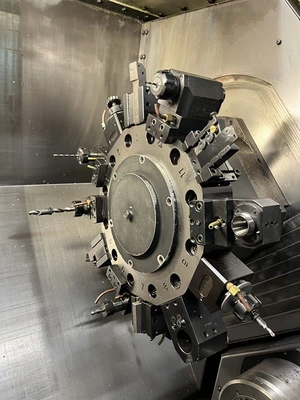

- 12 STATION VDI 30 TURRET (ALL STATIONS CAN BE LIVE)
- PARTS CATCHER
- CHIP CONVEYOR

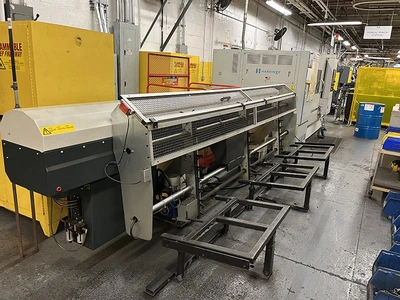

- LNS SPRINT 565 MAGAZINE BARFEED
- ALL AVAILABLE STANDARD TOOL HOLDERS
- ALL AVAILABLE MANUALS
