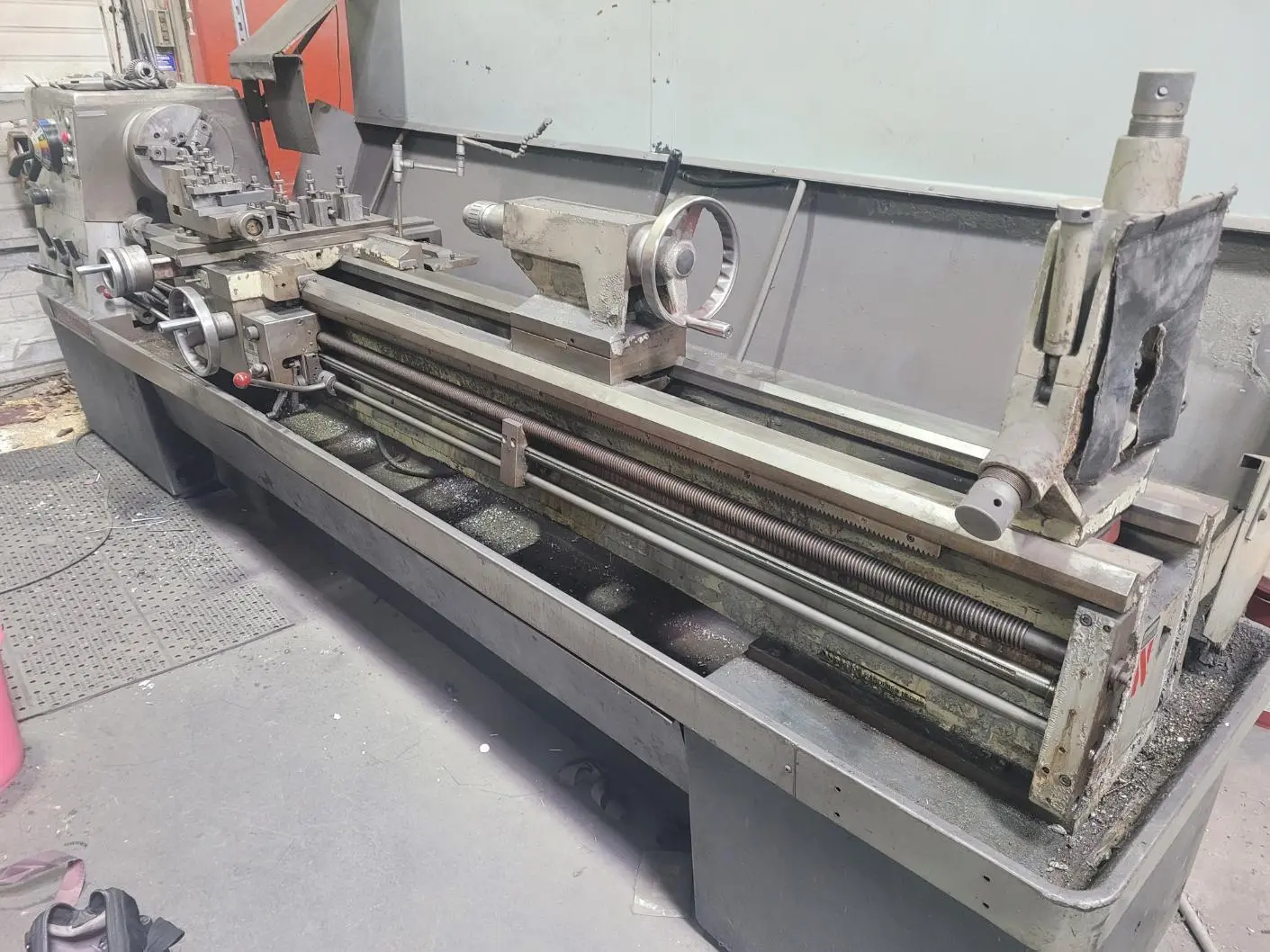

Precision Engine Lathe
OEM: Clausing-Colchester
Model No.: 17" 8000 Series
Serial No.: 7 0056 10762
Age (circa): 1976
Electrics: 460 Volt, 3 Phase, 60 Cycle, 15 Amps
Main Spindle: 10 HP
Features and Specifications:
...Swings:
......17" Over Ways
......10-1/2" Over X-Slide
...Height of Centers: 8-1/2"
...Distance Between Centers: 100"
...Thru Hole: 3-3/16"
...Spindle Speeds (16): 20 - 1600 RPM
...Spindle Nose: D1-8 Camlock
...Threading Modes: Metric, Inch, Modular, Diametral
...Center Taper: #5 MT
...Tailstock
...Coolant System
......1/16 HP Pump
......Splash Guard
...Taper Attachment
...Tooling (see pics):
......(2) 12” x 3-Jaw Chuck
......(1) 14” x 4-Jaw Chuck
......Steady Rest
......Holders
......Drill Chucks & Centers
......Faceplate
Machine Dimensions (measured): 156" x 48" x 72"
Machine Weight (approx.): 5,600 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This machine was being used within the last two years. Current owner is reselling this machine because they no longer need it in their manufacturing process. Machine has been disconnected, not under power. Available for inspection in "as is, where is" condition. Comes with holders, chucks, and other tooling.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR
Equipment is not under power; available for inspection.
Seller agrees to load machine onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quote per request.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
(3) Chucks
Holders
Drill Chucks
Centers
Steady Rest
Faceplate
