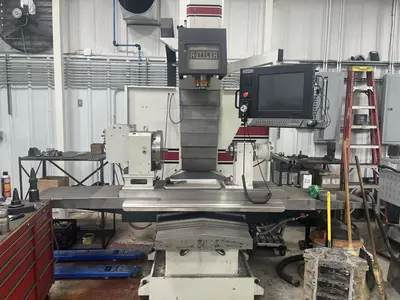

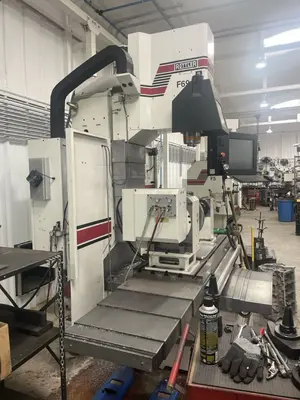

Used Rottler F69 A 2022

Key Specifications
Year 2022
Table Size: 59″ x 20″
T-Slots: 5 slots | Spacing: 3.939″ | Upper Width: 0.632″ | Lower Width: 1.29″ | Depth: 1.034″
X-Axis Travel (Horizontal): 40.5″
Y-Axis Travel (In/Out): 20.5″
Z-Axis Travel (Vertical): 30.5″
Spindle Nose to Table: 10″
Spindle Center to Column: 20.9″
Spindle Taper: CAT 40 (industry-standard for tool versatility)
Spindle Speed: Up to 4,000 RPM
Spindle Motor: 6 HP
Boring Capacity: Cylinder Bore Range 2″ – 5″ (with optional cutterheads) | Line Bore Range 1.9″ – 5.6″ (with optional cutterheads)
Shipping Dimensions: 90″ D x 132″ W x 106″ H
Machine Weight: 9,000 lbs
Equipped With Premium Features
Advanced Rottler CNC Control with intuitive Windows Touch Screen Operating System for easy programming and operation
Power Drawbar for quick tool changes

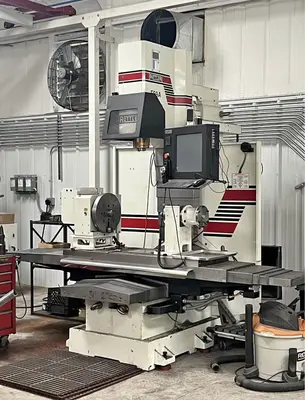

4th Axis Rotary with Tailstock for enhanced block rotation and multi-angle machining

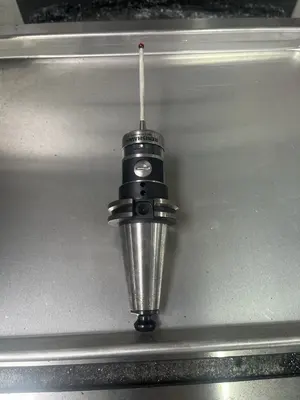

Renishaw Probe for precise probing, auto-leveling, and measurement

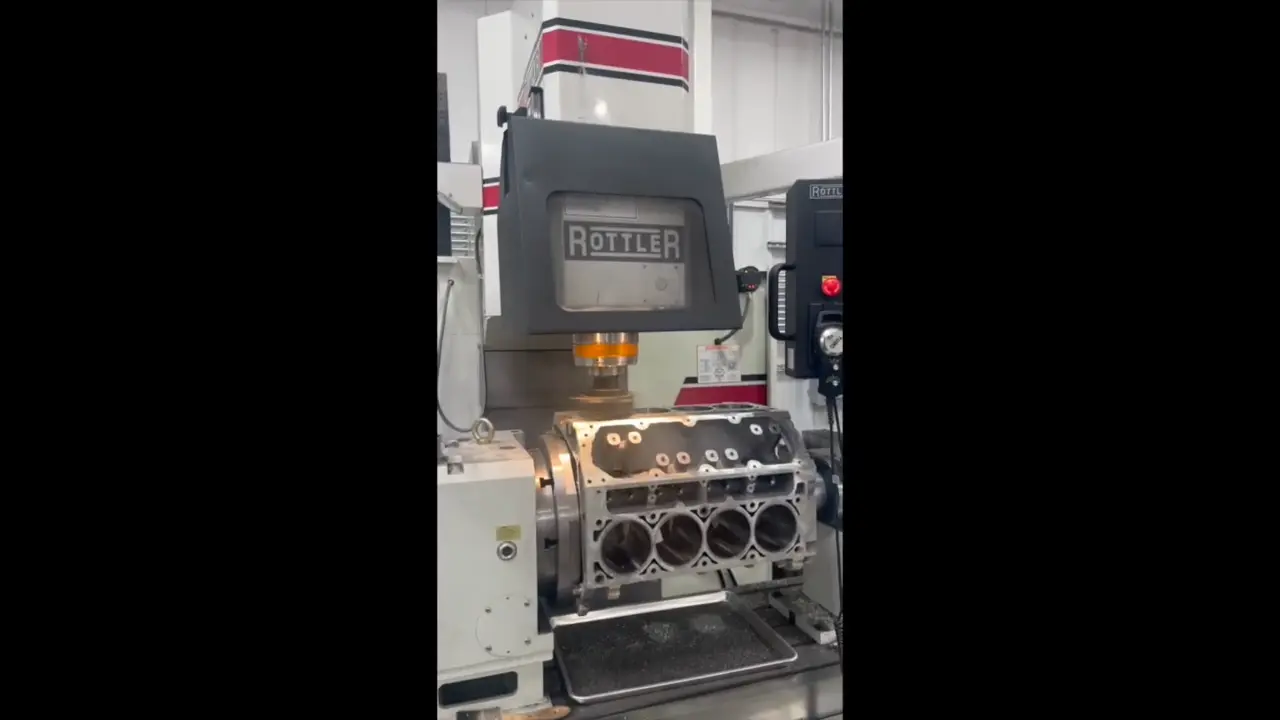

Built for demanding shops, the Rottler F69A delivers rigid, chatter-free performance thanks to its robust construction and linear roller bearing slideways. Ideal for automotive engine blocks (V8, diesel, big block), cylinder heads, and general precision CNC work.
Perfect for engine remanufacturers, performance builders, and machine shops seeking reliable, high-capacity CNC boring and surfacing. Contact us for availability, pricing, or custom configurations on this top-tier Rottler CNC boring machine!
