USED 1997 CINCINNATI ARROW-750

Cincinnati Arrow-750 VMC, 10 HP, 21 ATC, 30" X, 20" Y, 20" Z, 8000 RPM

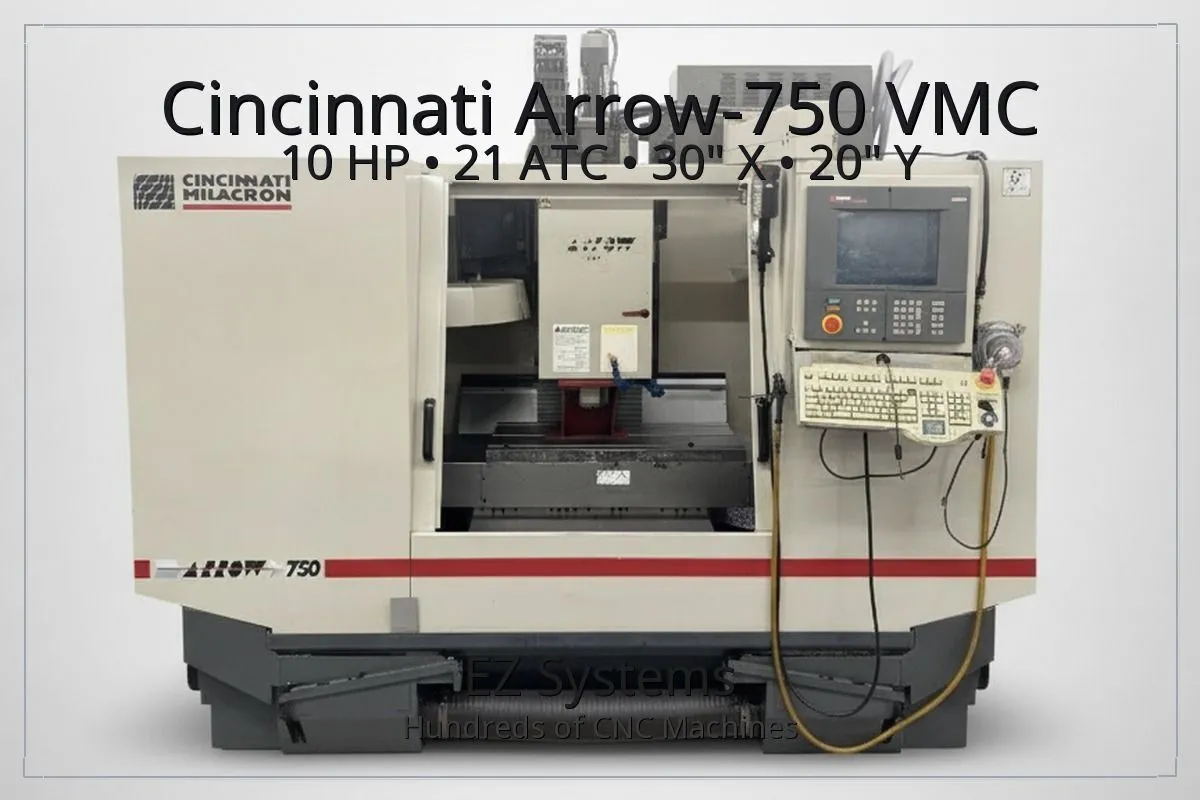

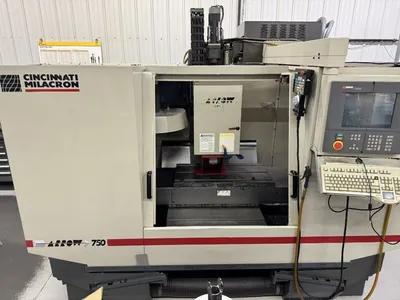

Cincinnati Arrow-750 Vertical Machining Center, 10 HP Spindle, 21-Station ATC, 30" X, 20" Y, 20" Z Travel, 8000 RPM, FOB Brainerd, MN
+
Specifications
- X-Axis Travel: 30" (762 mm)
- Y-Axis Travel: 20" (510 mm)
- Z-Axis Travel: 20" (510 mm)
- Spindle Taper: CAT-40
- Spindle Speed: 60 - 8,000 RPM
- Spindle Power: 10 HP continuous / 17 HP peak
- Tool Changer: 21-station automatic tool changer

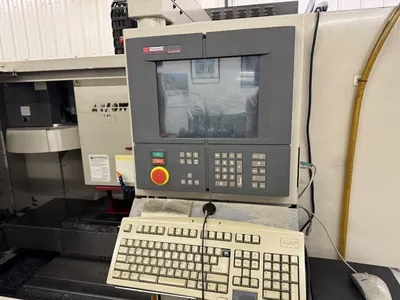

- Control Unit: Siemens Acramatic 2100
+
Description
Discover the robust capabilities of the Cincinnati Arrow-750 Vertical Machining Center, a reliable choice for diverse machining needs.
The Cincinnati Arrow-750 is a reliable, rigid vertical machining center (VMC) highly favored for light to medium production runs and toolroom work. This machine, originally owned and made in England, is currently under power but has a Z-axis problem. It comes with assorted manuals. It offers a robust 10/17 HP spindle motor, a solid work envelope, and the highly capable Acramatic 2100 controller.
+
Key Features & Benefits
The Acramatic 2100 control is renowned for its conversational programming, making it highly forgiving and easy to use at the machine without needing offline CAM for simpler jobs. With a cast iron frame, these machines handle aluminum, plastics, and mild steels beautifully. It’s relatively compact for the workspace it offers. While the Acramatic 2100 contains older electronic components, many owners have modernized these with LCD screens or SSDs over time. Users should note that these machines do not always feature full-enclosure splash guards, which may require careful management of high-pressure flood coolant.
+
Dimensions & Weight
- Physical Footprint: 100" x 100"
- Weight: Approximately lbs
+
Shipping & Location Details
Location: Brainerd, MN
This machine is offered FOB Brainerd, MN. Buyer is responsible for all applicable freight and rigging expenses.
+
