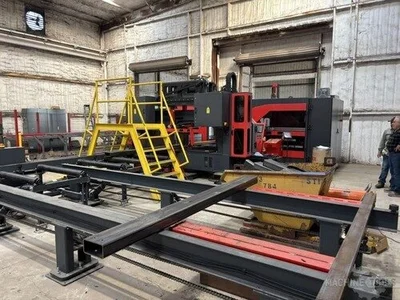

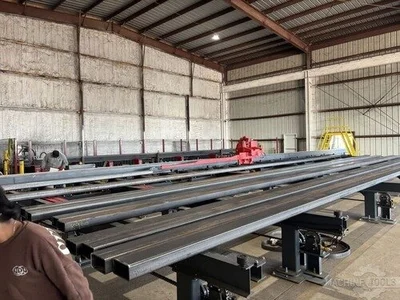

USED 2025 AKYAPAK 3 ADM 1200 / AST 1300

General Info

Stock #: 171260016
Location: TX
Brand: Akyapak
Model: 3 ADM 1200 / AST 1300
Year: 2025
Loading Fee: Rigging Required

Specifications

Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking
Material: Beam, Channel, Tube, Angle, Plate
Min Beam Size: 8" x 3.15"
Max Beam Size: 48" x 20"
Number of Drill Heads: 3
Automatic Tool Changer (ATC): 3 (4 Station)
Drill Diameter: 3/8" - 1-1/2"
Thread Tapping: M10 - M24
Drilling Thickness: 0.2" - 3.94"
Tool Holder: BT40
Spindle Speed: 50 - 3,000 RPM (Stepless)
Vertical Spindle Strokes (X, Y, Z): 57", 20", 36"
Horizontal Spindle Strokes (X, Y, Z): 20", 21", 28"

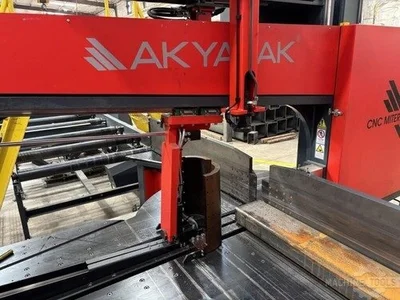

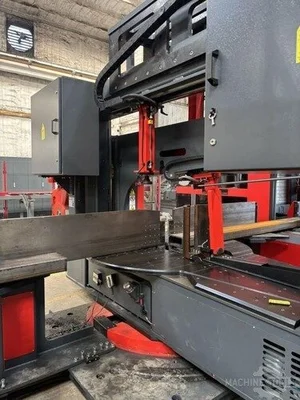

Miter Bandsaw Cutting Capacity: 3.15" - 51.5"
Cutting Angle: 60°/60°
Upper Pressure Cylinders for Batch Cutting: Yes
Blade: 67 x 1,6mm (2.64" x 16ga)
Total Saw Power: 24HP
Blade Speed: 65.6 - 377.3 ft/min

Equipped With

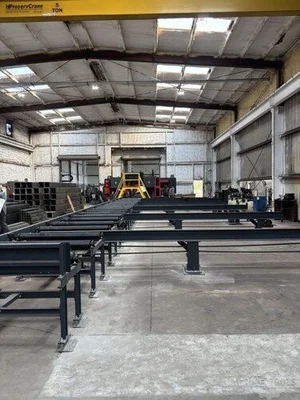

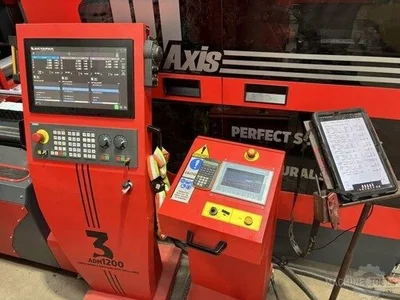

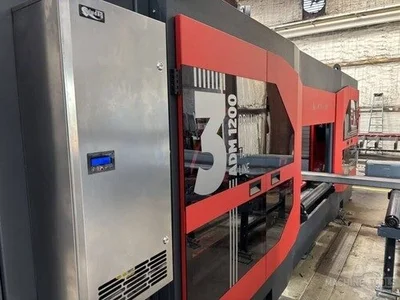

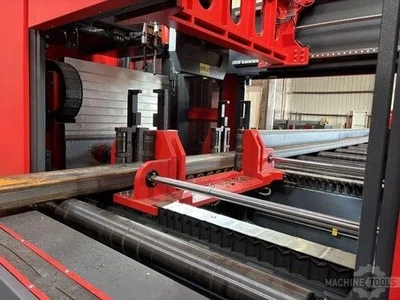

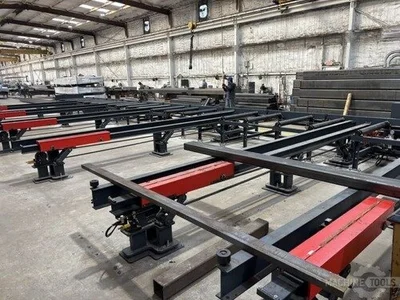

Drilling Unit: 3 ADM Drilling Units w/ 3 Automatic Tool Changer, Part Marking, Bandsaw Integration, Feeding Arm, Material Clamping, Automatic Tool and Material Measurement, 4th Side Layout Marking, Chip Conveyor, High Speed (20,000 RPM) Scribing Tools, Lantek Flex 3D Steel Work SD Plus Software, 60' Infeed with Transfers, 60' Outfeed with Transfers Miter Bandsaw Unit: Automatic Blade Tensioning System, Chip Brush for Blade, Integrated Chip Conveyor, Clamping Vice, Magnetic Material Discharge System, Feeding Arm with 60' Infeed with Transfers, 60' Outfeed with Transfers, AKYAPAK AST Controller Software

Additional Info
System is under power and available to demo. System available for removal in 08/2026.
