USED FICOM IW-66
Overview

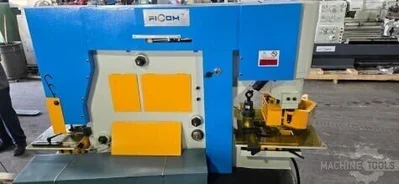

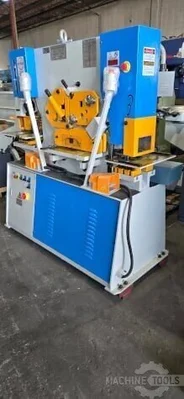

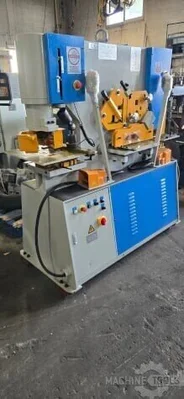

New Ficom IW-66 66 Ton Ironworker
Specs
General Info
Stock #: 193260002
Location: Lithia, FL 33547
Brand: Ficom
Model: IW-66
Approx. Shipping Weight: 3,527 Lbs
Approx. Shipping Dimensions: 65” X 32” X 70”
Specifications
Tonnage: 66 Tons
Throat: 11-13/16”
Capacity: 1” Hole Thru ⅝” Plate
Stroke: 3-⅛”
Cutting Capacity - Max. Width: 5/16” X 15-¾”
Max. Thickness: ⅝” X 10”
Round - Solid: 1-¾”
Square Solid: 1-9/16”
Channel: ½”
Angle: 4-59/64” X ½”
Max. Cut: 2-¼” X 3-15/16” X 25/64”
Motor Power: 5.3 HP
Electrics - Standard: 230 / 460 / 3 / 60
Equipped With
Dual Operator Stations With (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table With Fence, Punch Station For Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard For Notching Station, Movable Workstation Light W/ Magnetic Base And 12” Press Brake Attachment
