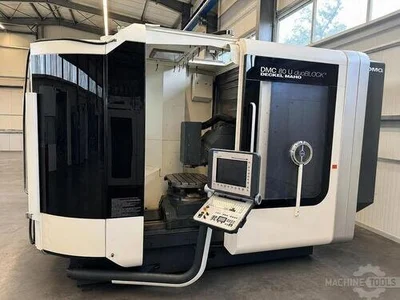

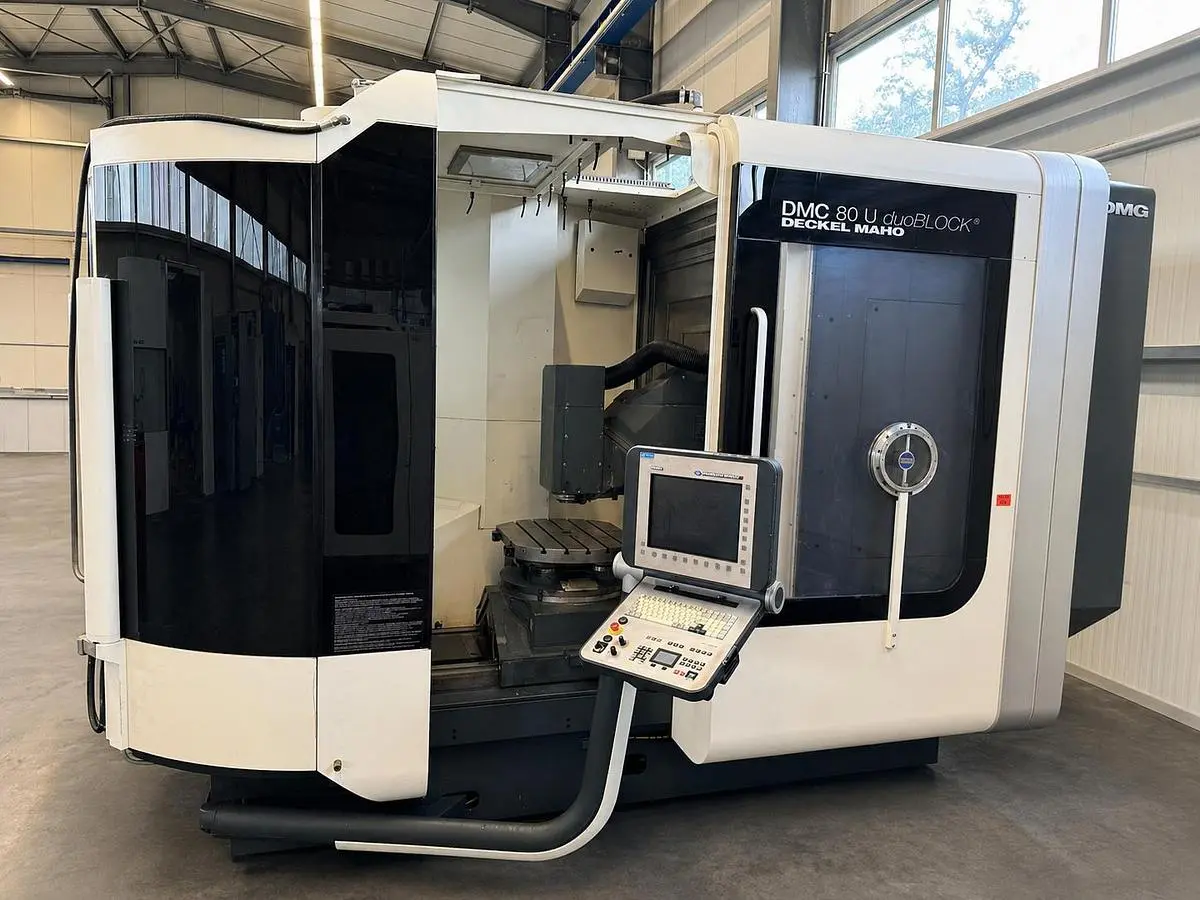

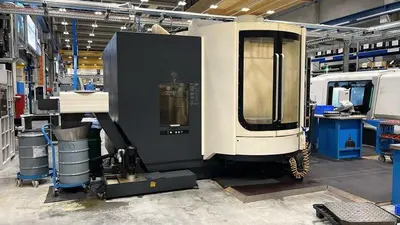

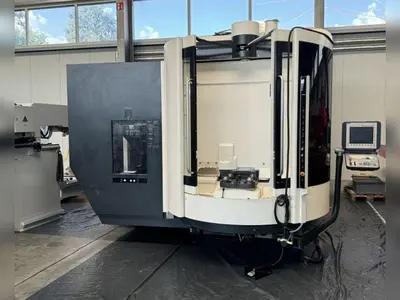

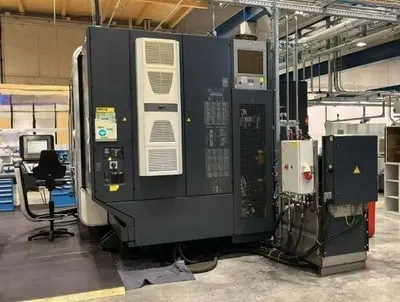

USED 2009 DMG DMC 80 U DUOBLOCK

HEIDENHAIN MillPlus IT CNC Control
NC-swivelling milling head with 18,000 rpm motor spindle for 5-axis simultaneous machining
3D CNC-control HEIDENHAIN MillPlus iT
Spindle cone HSK 63 with internal coolant supply (IKZ)
Direct distance measuring system (glass scale in all three axes)
SmartKey for operating mode 3
SmartKey for operating mode 4

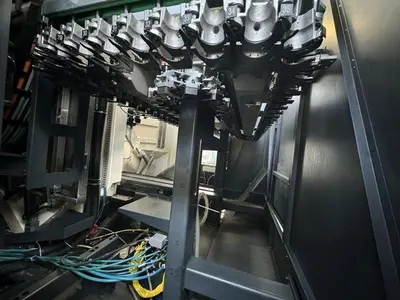

120-position tool magazine with automatic changer
2 pcs. Exchangeable pallets Ø800 x 630mm
Swiveling control panel for machine operator
Exhaust system for oil/emulsion mist with separator
Chip conveyor with discharge height approx. 956mm

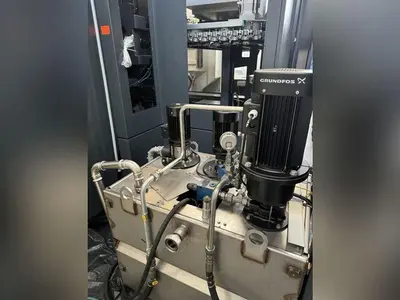

Intermediate tank with feed pumps and high-pressure pump 40 bar)
Machine prepared for central coolant supply
Chip cleaning gun
3 pcs installation elements
3D Touchprobe
Machine in new design
Machine on: approx. 59.500h, Operation hours: approx 18.900h

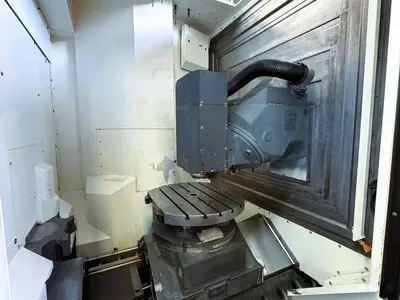

NC Rotary Table:
Clamping surface Ø 800 x 630mm
Resolution of C-Axis 0.001°
Max. workpiece weight 1,200 Kg
Max. holding torque of the table surface 5,000 Nm
Max. speed of the table plate 30 rpm
Permitted mass moment of inertia max. 205 kgm² - H12
Number and size of T-slots 5 x Gr.14
Distance of T-slots 100 mm
Centering hole Ø50H6 mm

Universal NC-Milling Head:
B-Axis, steplesss 180°
Resolution 0.001°
Type of spindle - Motor spindle
Max. power S3, 40 % ED 28 kW
Max. torque S3, 40% 121 Nm
Speed range, stepless 20 - 18,000 rpm
Tool clamping system HSK-63 - DIN 69893 Form A
