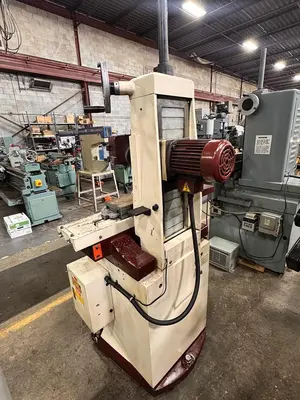

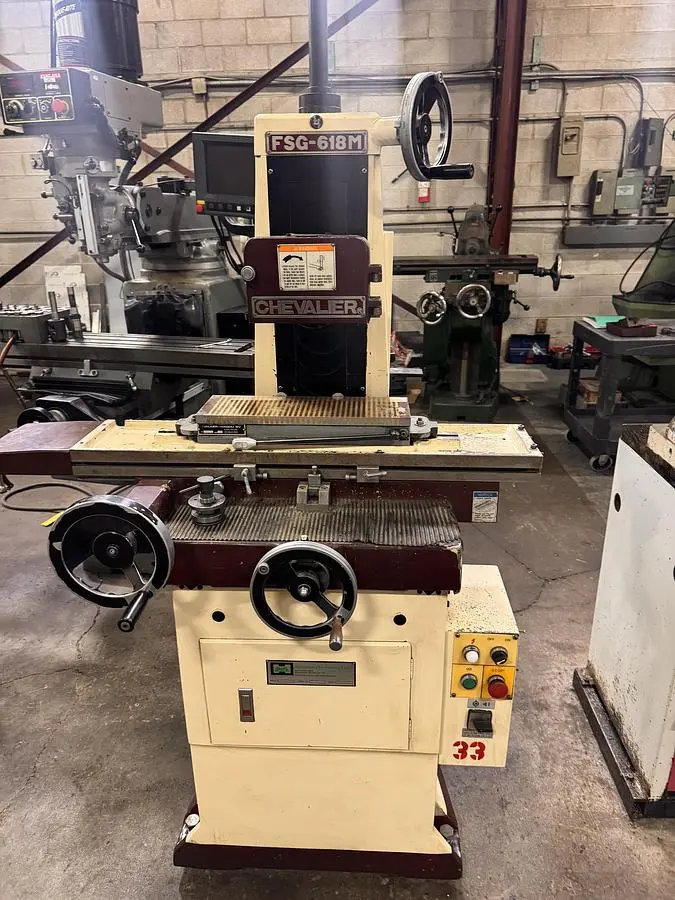

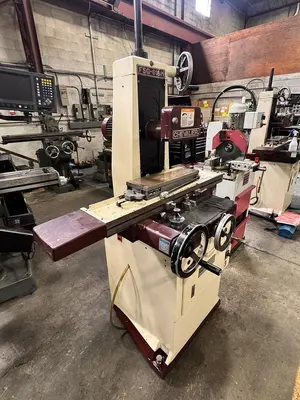

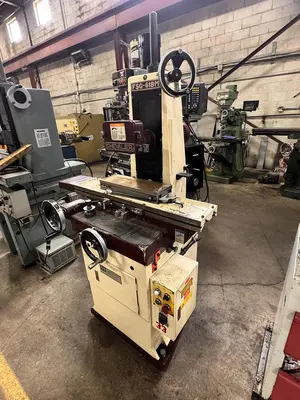

USED CHEVALIER FSG-618M
Specs
Table size: 5.75" x 18"
Spindle motor: 3 HP
Spindle speed: 3450 RPM
Max grinding width: 6"
Grinding wheel bore: 1.25"
Max grinding length: 18"
Grinding wheel width: 0.5"
Max workpiece weight: 462 LBS
Approx machine weight: 1480 LBS
Dimensions (l x w x h): 53" x 36" x 67"
Grinding wheel diameter: 8"
Crossfeed travel (y axis): 7"
Longitudinal travel (x axis): 19"
Max distance (table surface-spindle): 18"
Equipped With
6" X 18" MANUAL MAGNETIC CHUCK
The Chevalier FSG-618M is a manual surface grinder designed for precise grinding tasks. It features a 5.75" x 18" table size and operates with a robust 3 HP spindle motor, achieving a spindle speed of 3450 RPM. This model accommodates a maximum grinding width of 6 inches and a grinding length of 18 inches, suitable for a wide range of workpieces. The grinder's crossfeed travel measures 7 inches, while the longitudinal travel extends to 19 inches, providing flexibility during operation.
Additional specifications include a grinding wheel bore of 1.25 inches and a grinding wheel diameter of 8 inches, with a wheel width of 0.5 inches. The machine supports a maximum workpiece weight of 462 lbs, ensuring it can handle substantial loads. The structure of the unit is sturdy, with approximate machine weight being 1480 lbs. It also offers a maximum distance from the table surface to the spindle of 18 inches, facilitating greater versatility. The dimensions of the grinder are 53" x 36" x 67", which is compact for its class.
Overall, the Chevalier FSG-618M efficiently handles tasks requiring accuracy and reliability, making it a suitable addition to any workshop in need of manual grinding capabilities.
