USED CHEVALIER FSG-618M
Specs
Table size: 5.75" x 18"
Spindle motor: 3 HP
Spindle speed: 3450 RPM
Max grinding width: 6"
Grinding wheel bore: 1.25"
Max grinding length: 18"
Grinding wheel width: 0.5"
Max workpiece weight: 462 LBS
Approx machine weight: 1480 LBS
Dimensions (l x w x h): 53" x 36" x 67"
Grinding wheel diameter: 8"
Crossfeed travel (y axis): 7"
Longitudinal travel (x axis): 19"
Max distance (table surface-spindle): 18"
Equipped With
6" X 18" MANUAL MAGNETIC CHUCK

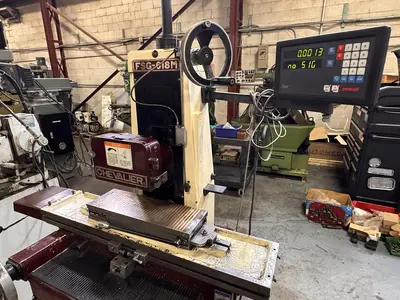

NEW ALL DIGITAL READOUT FOR Z-AXIS ONLY

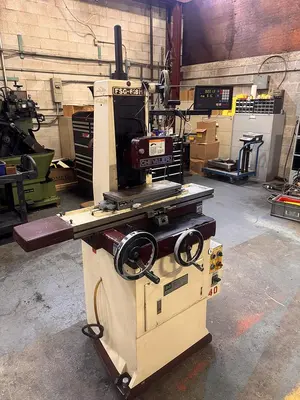

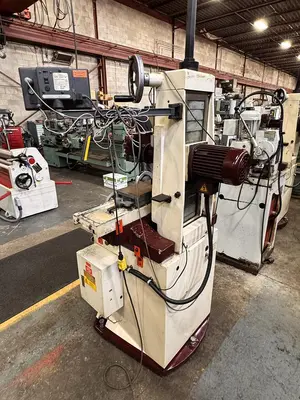

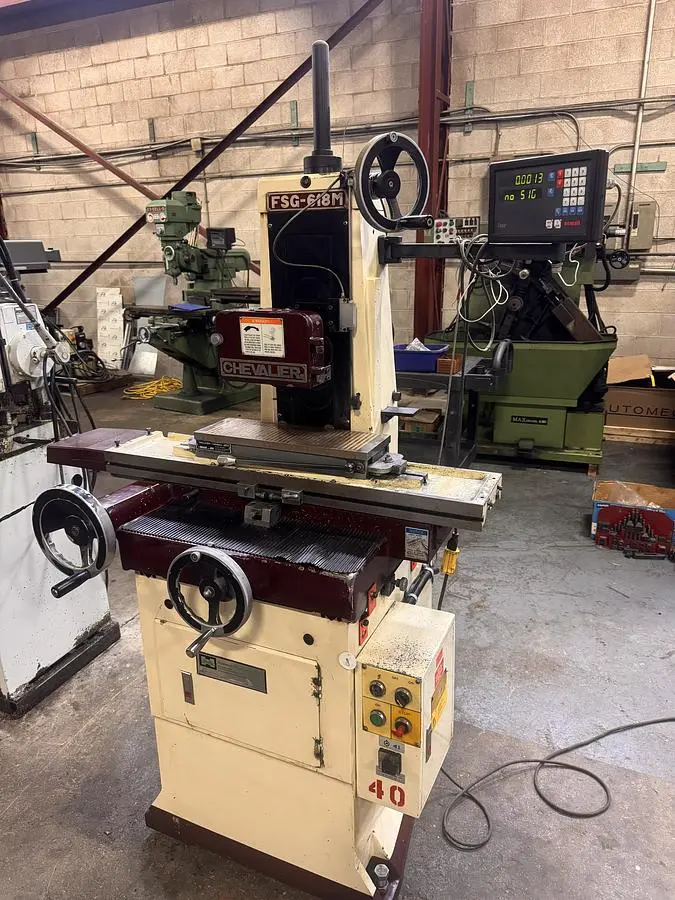

The CHEVALIER FSG-618M is a manual surface grinder known for its reliable performance in precision grinding tasks. This used machine features a 6" x 18" manual magnetic chuck, offering ample workspace for a variety of grinding applications. It's equipped with a New all-digital readout specifically for the Z-axis, enhancing accuracy and ease of operation when adjusting to precise depths.
Key specifications include a table size of 5.75" x 18", and it's driven by a 3 HP spindle motor that operates at a steady 3450 RPM. The grinder can accommodate workpieces up to a maximum weight of 462 lbs, with a grinding width and length capacity of 6" and 18" respectively. The grinding wheel measures 8" in diameter, with a bore of 1.25" and a width of 0.5", ensuring it can handle a variety of materials effectively.
The machine dimensions are 53" x 36" x 67", with the total machine weight at approximately 1480 lbs. For operators focusing on precision and control, this unit offers a crossfeed travel of 7" on the Y-axis and a longitudinal travel of 19" on the X-axis, along with a maximum table-to-spindle distance of 18". This surface grinder is ideal for workshops needing precise manual grinding with the added advantage of a Z-axis digital readout for improved accuracy.
