USED 1998 Daewoo Lynx 200A

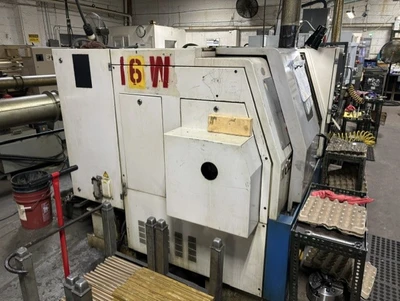

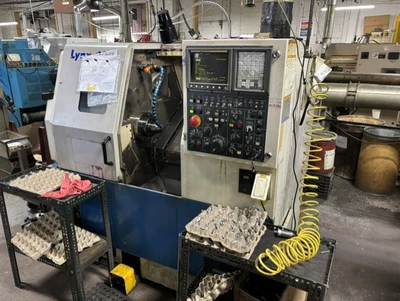

DAEWOO LYNX 200A CNC TURNING CENTER

NEW: 1998

VIDEI LINK: https://youtu.be/Wqy4GZPle2s?si=7F1y71Uiicgepu2M

SPECIFICATIONS:

SWING OVER BED ................. 20.1"

SWING OVER SADDLE .............. 13.7"

MAX. TURNING DIA. .............. 11.0"

MAX. TURNING LENGTH ............ 12.7"

BAR CAPACITY ................... 1.75"

X-AXIS TRAVEL .................. 6.3"

Z-AXIS TRAVEL .................. 13.0"

SPINDLE SPEED, MAX. ............ 6000RPM

SOINDLE NOSE ................... A2-5

SPINDLE THRU DIAMETER .......... 2.09"

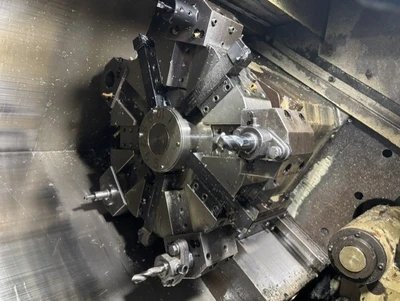

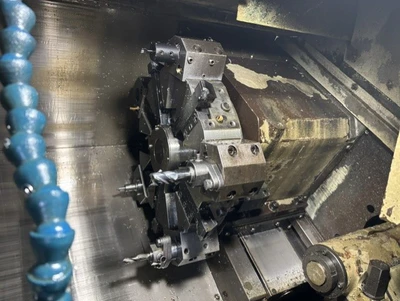

NUMBER OF TOOL STATIONS ........ 12

TAILSTOCK QUILL DIAMETER ....... 2.6"

TAILSTOCK QUILL TAPER .......... MT#4

TAILSTOCK QUILL TRAVEL ......... 3.1"

SPINDLE MOTOR .................. 10HP

APPROX. MACHINE WEIGHT ......... 7,200

EQUIPPED WITH:

 - FANUC 21-T CNC CONTROL

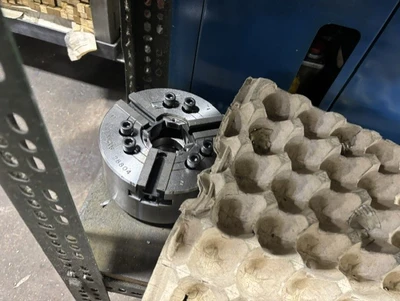

 - 6" 3-JAW HYD. CHUCK

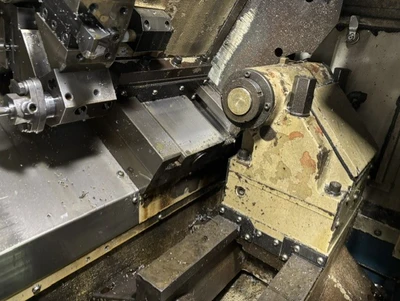

 - TAILSTOCK

 - ALL AVAILABLE TOOL HOLDERS AND MANUALS

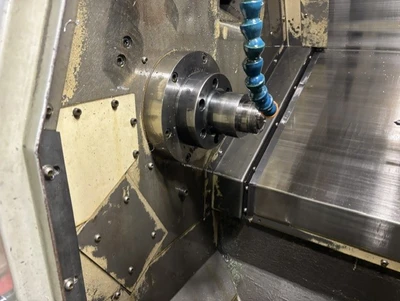

Comes w/6" Chuck only, Collet Chuck mounted to machine in photos and video is not included.

FOR MORE INFORMATION: Call Mike at 973-497-7540
