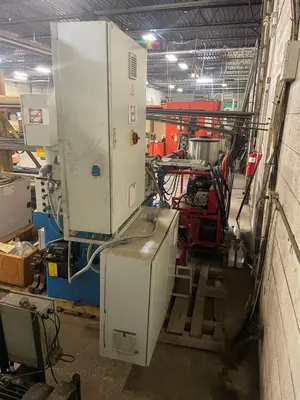

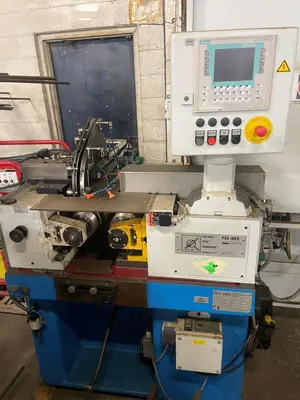

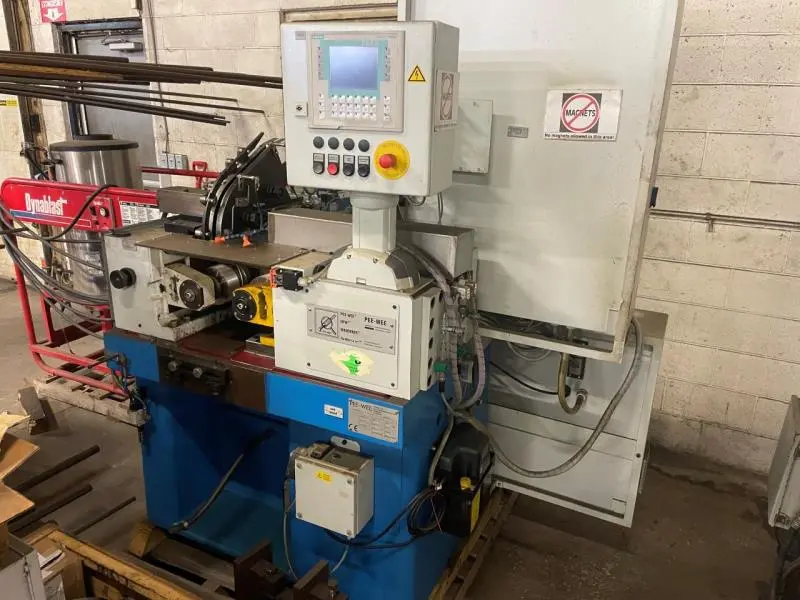

USED 2015 PEE-WEE P15U CNC
Overview
Specs
Maximum Thread Diameter: 40 millimeters
Minimum Thread Diameter: 2 millimeters
Maximum Rolling Force: 18 tons
Max Thread Length: 54 millimeters
Spindle Diameter: 54 millimeters
Max. pitch: 5mm
Spindle Speeds: 25 - 90 rpm
Main Motor: 10 kW
Weight approx: 1800 kilograms
Equipped With
Automatic central lubrication

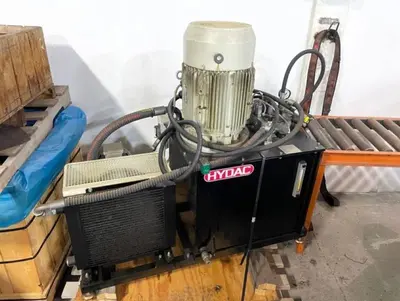

Complete hydraulic system
PC control from Siemens with PEE-WEE CNC software
Control panel display Siemens
AC servo drive for E-pitch
Pressure & positioning monitoring
Measuring of linear movement of one tool
Standard work piece fixture P15
Guide support, long version
Tipping fixture
Only used in production for about 2-1/2 years, Light duty job operation of burnishing ball studs.
