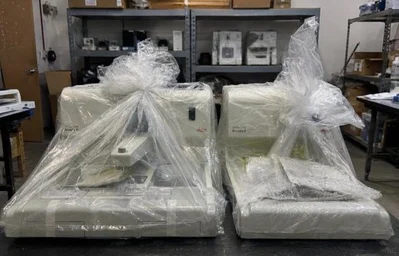

USED LEICA HISTOCORE ARCADIA H EMBEDDING STATION WI

The Leica HistoCore Arcadia H Embedding Station with Arcadia C Cryoplate is a modular tissue embedding system designed for efficient paraffin embedding in histology and pathology laboratories. The Arcadia H heated embedding station provides precise temperature control for paraffin dispensing, cassette warming, mold warming, and an ergonomic workspace, while the Arcadia C Cryoplate (Cold Plate) rapidly cools embedded tissue blocks for efficient solidification prior to microtomy. The modular design allows both units to operate together as a complete embedding center or independently as standalone instruments.

An unused (New Old Stock) system offers the advantage of minimal wear and full operational life, making it particularly desirable for clinical pathology, hospital, pharmaceutical, and research laboratories.

---------------------------------------------------------------
Key Highlights

- Modular tissue embedding center with heated workstation and cold plate
- Arcadia H heated paraffin embedding station
- Arcadia C self-regulating cryoplate (cold plate)
- LCD touchscreen for temperature monitoring and control
- Large 4 L paraffin reservoir
- Cassette warming tray capacity of approximately 150 cassettes
- Cold plate accommodates approximately 65 tissue blocks
- Working temperature range:
- Heated station: 50–75°C
- Cold plate: -6°C (self-regulating)
- Bright LED illumination and integrated magnifier
- Ergonomic, symmetrical workspace
- Easy-clean metal work surfaces with reduced paraffin adhesion
- Designed for continuous, high-volume histology workflows
---------------------------------------------------------------

Applications / Uses

- Histopathology laboratories
- Clinical pathology
- Hospital laboratories
- Tissue embedding
- Paraffin block preparation
- Cancer diagnostics
- Veterinary pathology
- Research laboratories
- Academic medical centers
- Pharmaceutical pathology
---------------------------------------------------------------

Typical Specifications (Summary)

Arcadia H Embedding Station

- Paraffin Tank Capacity: 4 L
- Operating Temperature: 50–75°C
- Cassette Tray Capacity: Approximately 150 cassettes
- Dimensions (W × D × H): 636 × 560 × 384 mm
- Weight: 27 kg
- Power: 110–240 VAC, 50/60 Hz
- Maximum Power Consumption: 1000 VA

Arcadia C Cryoplate

- Cooling Temperature: -6°C (self-regulating)
- Capacity: Approximately 65 tissue blocks
- Dimensions (W × D × H): 636 × 400 × 384 mm
- Weight: 32 kg
- Power: 110–240 VAC, 50/60 Hz
- Maximum Power Consumption: 400 VA
---------------------------------------------------------------

Typical Configuration Includes

- Leica HistoCore Arcadia H Embedding Station
- Leica HistoCore Arcadia C Cryoplate
- Paraffin dispenser
- Heated cassette tray
- Heated mold trays
- Heated work surface
- LED illumination
- Magnifier
- Power cords
- User documentation
