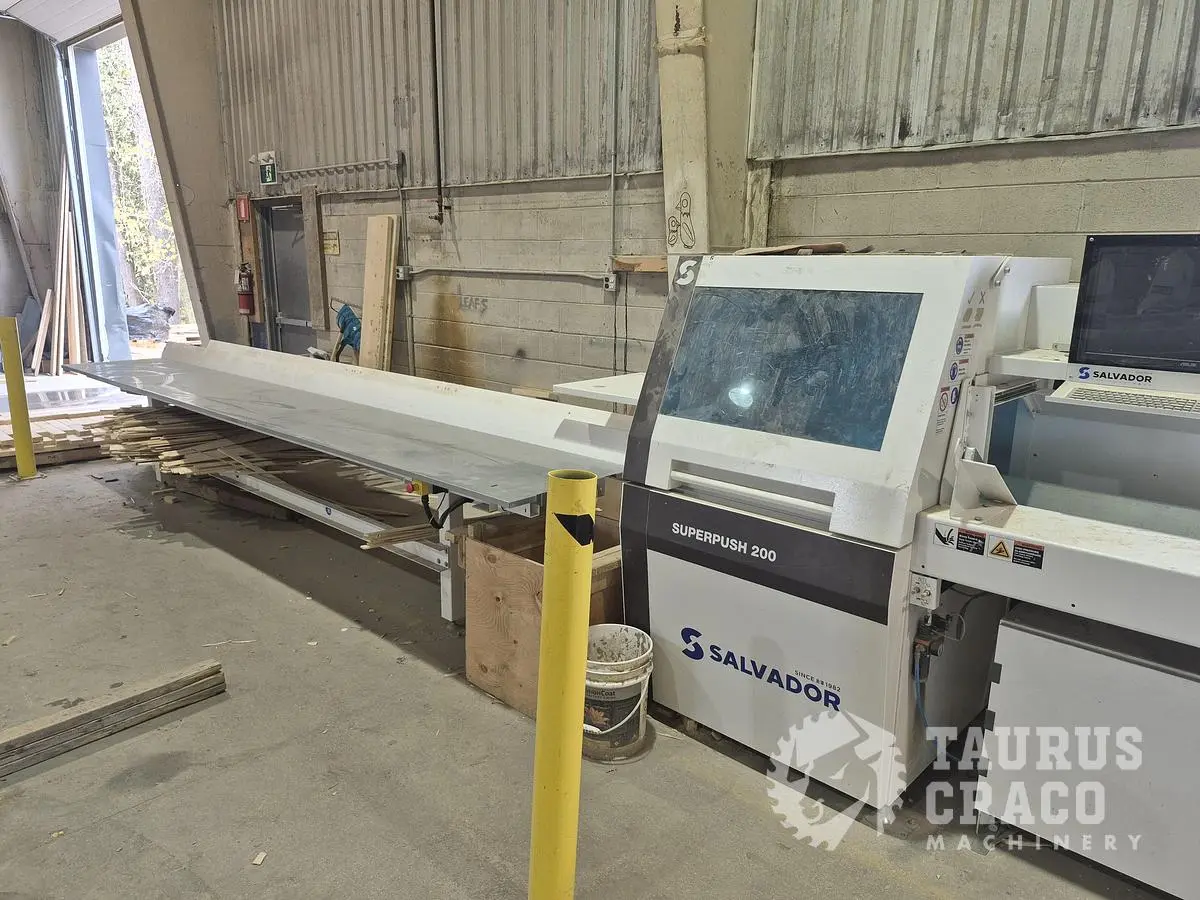

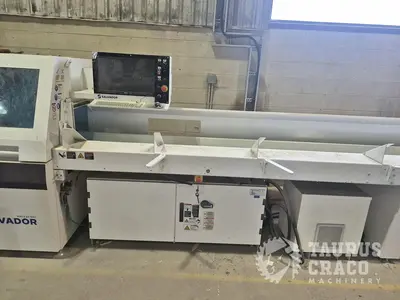

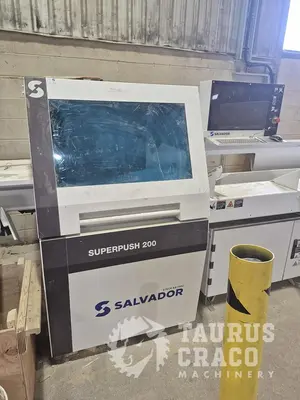

USED 2024 SALVADOR SUPERPUSH 200 AUTOMATIC OPTIMIZING CROSSCUT SAW

USED 2024 SALVADOR SUPERPUSH 200 AUTOMATIC OPTIMIZING CROSSCUT SAW

Manufacturer: Salvador S.r.l.
Model: Superpush 200
Machine Type: Automatic Optimizing Crosscut Saw
Year: 2024
Condition: Very Good – Under Power
Location: Ontario, Canada
The Salvador Superpush 200 is a high-production automatic optimizing crosscut saw designed for rapid and accurate cutting of lumber, wood stock, planks, and similar materials. This machine features an automatic feeding pusher system, optimization capability, and high-speed crosscut operation for efficient production environments.

Currently under power and in operation, the machine has accumulated approximately 1,627 operating hours and is available with manuals and documentation.
Phase: 3 Phase
Supply Voltage: 460V
Maximum Installed Power: 6.5 kW
Blade Motor Power: 5.5 kW
Blade Diameter: 500 mm
Optional Blade Diameter: 550 mm
Arbor Diameter: 35 mm
Blade Thickness: 4.2 mm
Optional Blade Thickness: 4.5 mm
Blade Speed: 2,880 RPM
Material Capacity: Approximately 2" x 4" up to 6" x 12"
Machine Configured to Load Material up to 16 Feet
Minimum Workpiece Length: 500 mm
Minimum Workpiece Cross Section: 30 x 15 mm
Cutting Cycle Time: 0.3 Seconds
Maximum Pusher Feed Speed: 60 m/min
Maximum Pusher Plate Size: 100 x 120 mm
Operating Pressure: 600–800 kPa (6–8 Bar)
Connection: 3/8" Quick Connectors
Extraction Capacity: 1,800–2,000 m³/hr
Upper Extraction Port: 100 mm
Lower Extraction Port: 120 mm
Overall Line Dimensions: 8,870 x 1,481 x 1,720 mm
Open Height: 2,045 mm
Loading / Marking Table Height: 1,000 mm
Main Unit Weight: 950 kg
Maximum Supporting Surface Load: 968 kg
Under Power
Available Immediately
Approximately 1,627 Operating Hours
Very Good Condition
Manuals Included
